Toyota COASTER — SHORT BLOCK ASSEMBLY

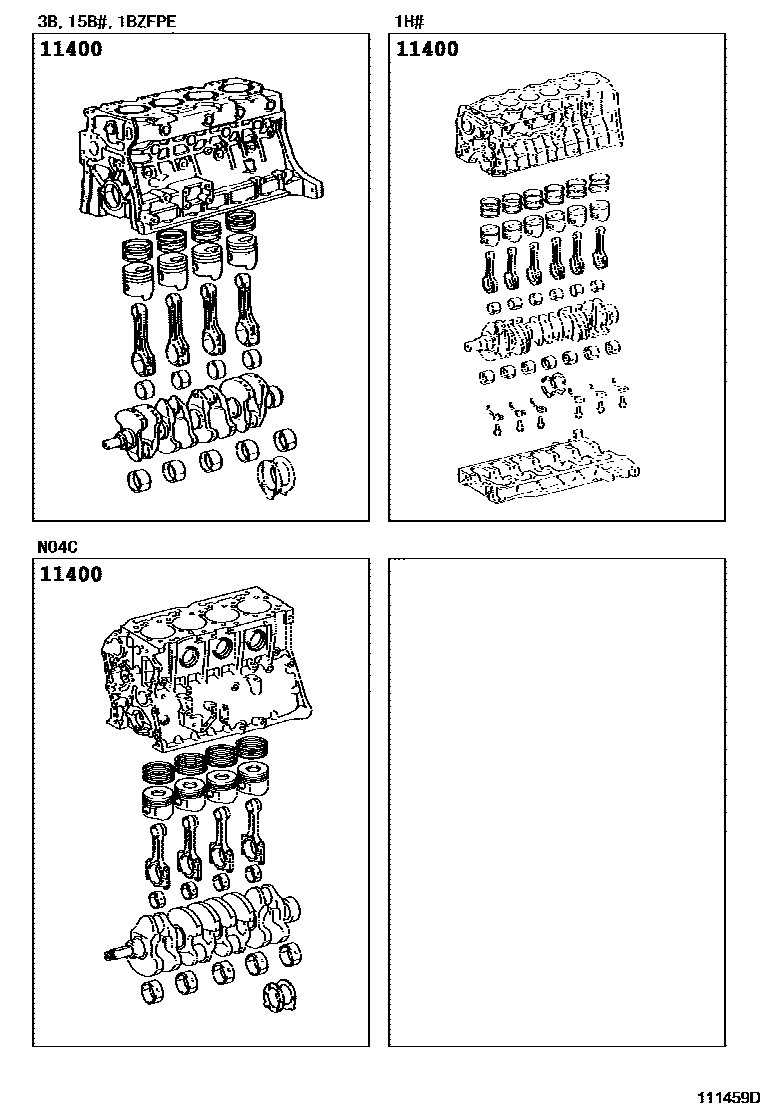

Parts diagram

11400BLOCK ASSY, SHORT

main11400-17020i199301-199411

main11400-17021i199411-199505

main11400-17050i199301-199410

main11400-17070i199410-199411

main11400-17071i199411-199505

main11400-17091i199505-199705

main11400-17092i199705-199801

main11400-17093i199801-199907

main11400-17100i199505-199705

main11400-17101i199705-199801

main11400-17102i199801-199907

main11400-17110i199907-200404

main11400-17120i199907-200404

main11400-17200i200404-200408

main11400-17210i200404-200408

main11400-48040i201004-201501

main11400-58110i199301-199505

main11400-58130i199512-199907

main11400-58180i199505-199907

main11400-58230i199907-200404

main11400-58280i200404-200408

main11400-78300i200408-200708

main11400-78310i200408-200708

main11400-78420i200708-201108

main11400-78440i200708-201008

main11400-78540i201008-201108

main11400-78780i201108-201501

main11400-78790i201108-201501

main11400-78890i201008-201108

main11400-78A00i201501-201508

main11400-78A01i201508

main11400-78A30i201501-201508

main11400-78A31i201508

1 parts on this diagram · 1 diagram in section

SHORT BLOCK ASSEMBLY for Toyota COASTER

This section contains 1 genuine Toyota parts for the SHORT BLOCK ASSEMBLY system of the Toyota COASTER. Key components include: BLOCK ASSY, SHORT.
