Toyota COASTER — SHORT BLOCK ASSEMBLY

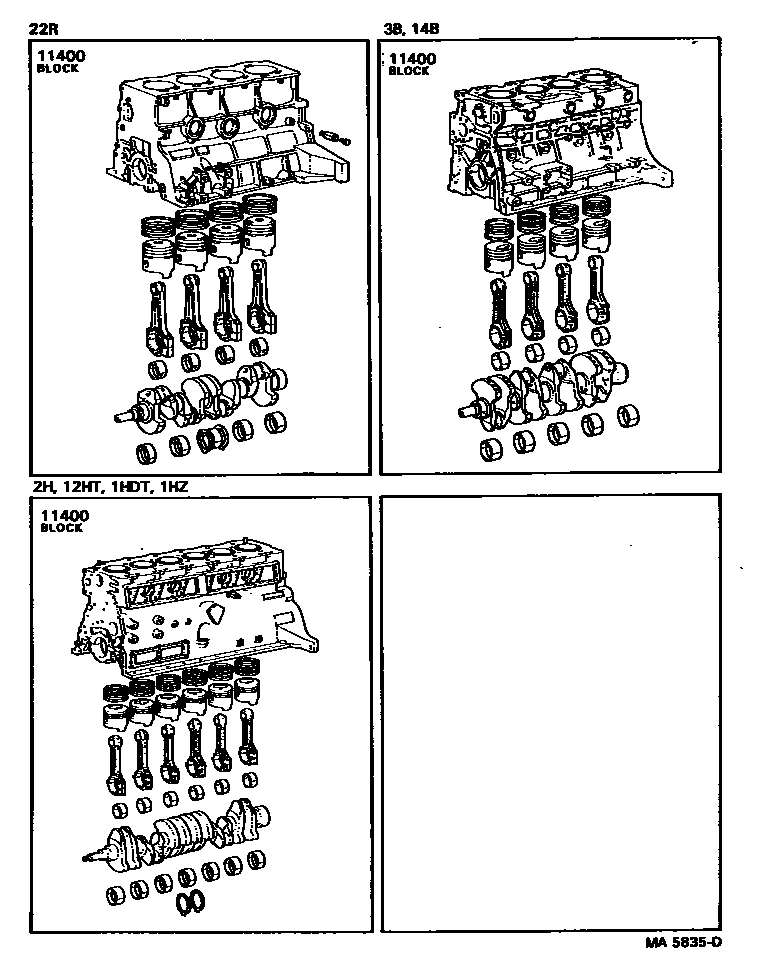

Parts diagram

11400BLOCK ASSY, SHORT

main11400-17020i199001-199301

main11400-17030i199001-199301

main11400-35020i198205-198408

main11400-35040i198408-198602

main11400-35041i198602-198608

main11400-35042i198608-198801

main11400-35043i198801-199301

main11400-58011i198205-198209

main11400-58012i198209-198408

main11400-58040i198408-198808

main11400-58060i198808-199301

main11400-58070i198808-199301

main11400-68010i198205-198411

main11400-68020i198411-199001

main11400-68030i198510-199001

1 parts on this diagram · 1 diagram in section

SHORT BLOCK ASSEMBLY for Toyota COASTER

This section contains 1 genuine Toyota parts for the SHORT BLOCK ASSEMBLY system of the Toyota COASTER. Key components include: BLOCK ASSY, SHORT.
