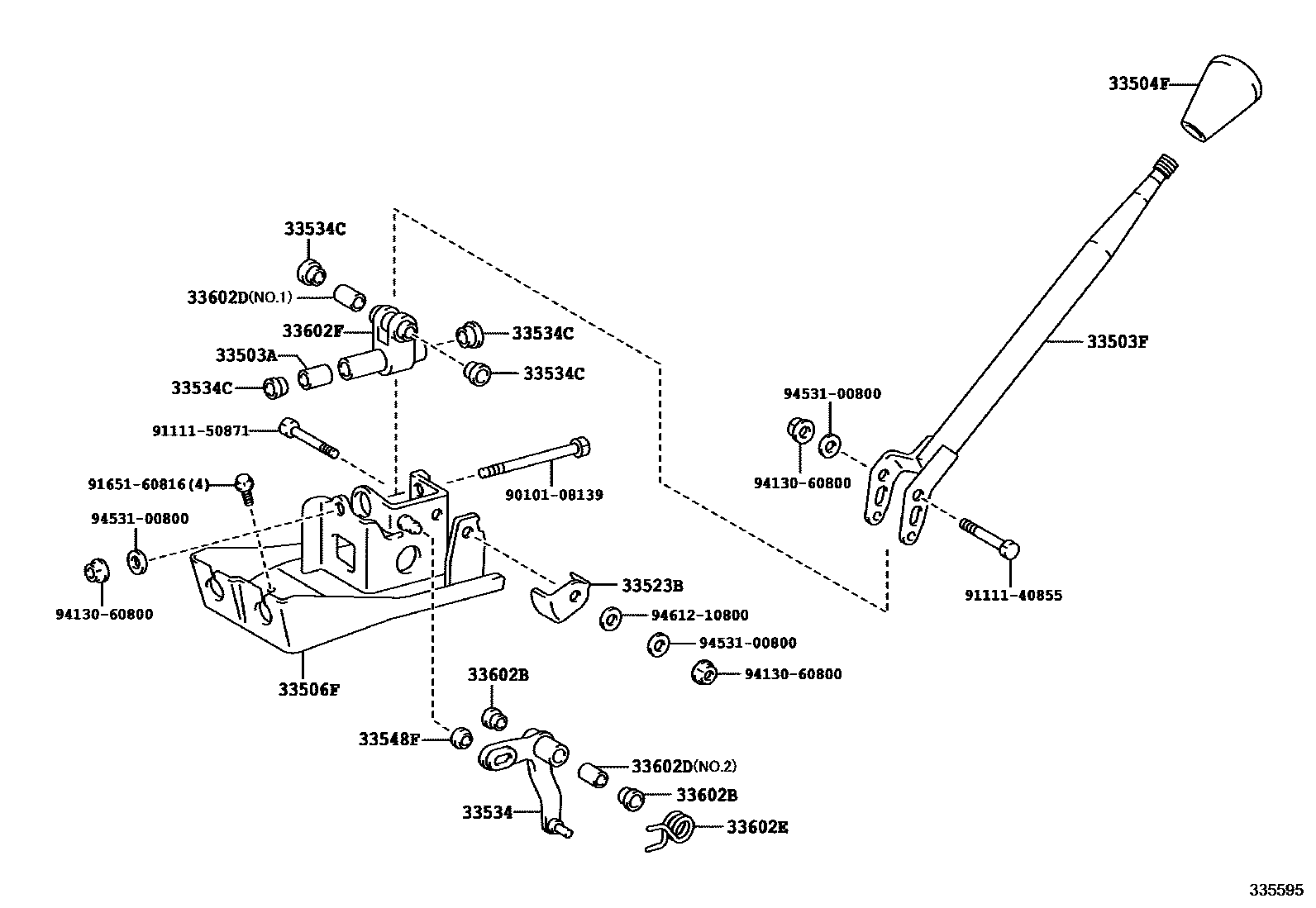

Toyota COASTER — SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

33503ACOLLAR(FOR SHIFT LEVER)

main90440-13003iXZB60,70..5F201701-202312

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-36060iXZB60,70..5F201701-202312

main33503-36130iGDB60,70,80201701-202412

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-36051-C0iXZB60,70..5F201701-202312

BLACK,TRIM1#

sub33504-36051

main33542-20100-C0iXZB70..PREM202006-202201

BLACK,TRIM1#,2#

sub33542-20100

main33542-20100-C0iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701-202312

BLACK,TRIM1#

sub33542-20100

main33542-20100-C0iXZB70..PREM202201-202312

BLACK,TRIM2#

sub33542-20100

main33542-36070iGDB60,70,80202401-202412

main33542-36070-C0iGDB60,70,80202201-202401

BLACK,TRIM1#

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-36010iXZB60,70..5F201701-202312

33523BPIN, SHIFT LEVER (FOR FLOOR SHIFT)

main33523-36040iXZB60,70..5F201701-202312

33534BELLCRANK, SELECTING

main33534-36090iXZB60,70..5F201701-202312

33534CBUSH (FOR SELECTING BELLCRANK NO.1)

main90386-13007iXZB60,70..5F201701-202312

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-12021iXZB60,70..5F201701-202312

33602BBUSHING (FOR SELECT LEVER)

main90386-13007iXZB60,70..5F201701-202312

33602DCOLLAR (FOR SELECT LEVER)

main90387-08063iXZB60,70..5F201701-202312

main90387-08148iXZB60,70..5F201701-202312

33602ESPRING, TORSION (FOR SELECT LEVER)

main90949-03067iXZB60,70..5F201701-202312

33602FLEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT)

main33602-36031iXZB60,70..5F201701-202312

9010108139

main90101-08139

9111140855

main91111-40855

9111150871

main91111-50871

9165160816

main91651-60816

9413060800

main94130-60800

9453100800

main94531-00800

9461210800

main94612-10800

19 parts on this diagram · 6 diagrams in section
