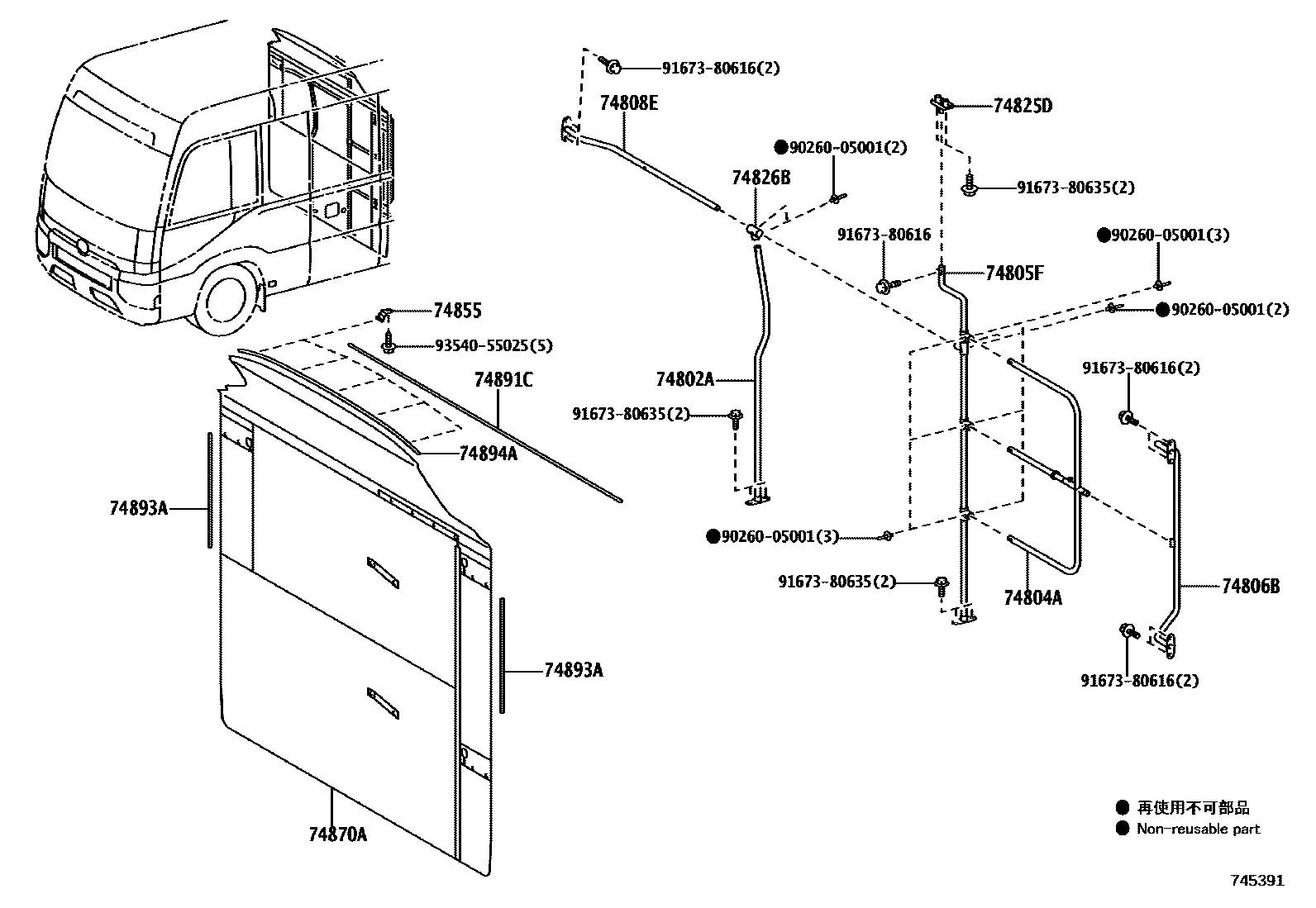

Toyota COASTER — SEPARATOR & SEPARATOR CURTAIN
74802ABAR SUB-ASSY, SEPARATOR, E
74804ABAR SUB-ASSY, SEPARATOR, D
74805FBAR SUB-ASSY, SEPARATOR, A
74806BBAR SUB-ASSY, SEPARATOR, B
74808ESEPARATOR SUB-ASSY, REAR
74825DBRACKET, SEPARATOR BAR, NO.5
74826BBRACKET, SEPARATOR BAR, NO.6
74855PLATE, SEPARATOR CURTAIN SET
main74872-36010
74870ACURTAIN ASSY, SEPARATOR
74891CWIRE, SEPARATOR CUTAIN, NO.1
74893AWIRE, SEPARATOR CURTAIN, NO.3
74894AWIRE, SEPARATOR CURTAIN
9026005001
main90260-05001
9167380616
main91673-80616
9167380635
main91673-80635
9354055025
main93540-55025
16 parts on this diagram · 2 diagrams in section
