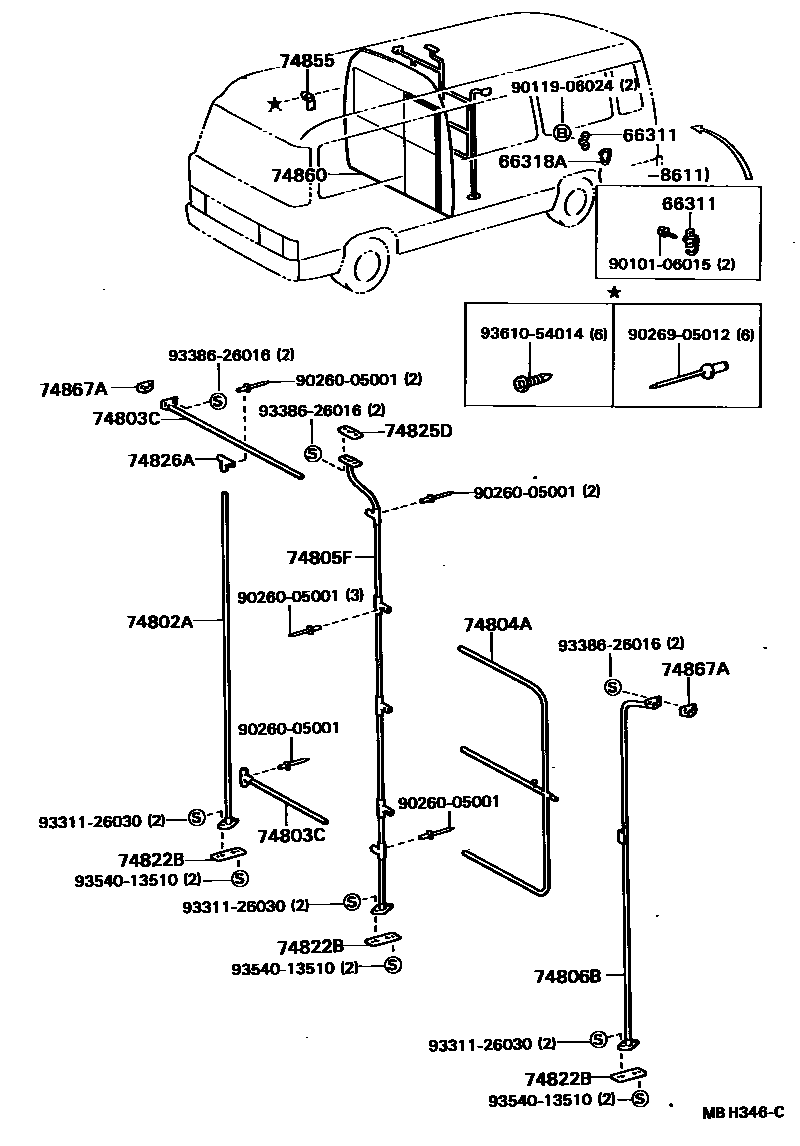

Toyota COASTER — SEPARATOR & SEPARATOR CURTAIN

66311HOOK, ROPE

main66301-90A00×6i198611-199301

main66311-90D01×6i198408-198611

66318ABAND, ROPE HOOK

main66318-90A00×6i198611-199301

74802ABAR SUB-ASSY, SEPARATOR, E

main74802-90B00i198408-199301

74803CBAR SUB-ASSY, SEPARATOR, C

main74803-90B02i198408-199301

UPR,W/RR HEATER

main74803-90B03i198408-199301

LWR,W/RR HEATER

74804ABAR SUB-ASSY, SEPARATOR, D

main74804-90B01i198408-199301

74805FBAR SUB-ASSY, SEPARATOR, A

main74805-90B01i198408-199301

main74805-90B02i198408-199301

W/RR HEATER

74806BBAR SUB-ASSY, SEPARATOR, B

main74806-90B01i198408-199301

74822BRETAINER, SEPARATOR BAR

main74822-90B01×3i198408-199301

74825DBRACKET, SEPARATOR BAR, NO.5

main74825-90B01×6i198408-199301

74826AWINDOW, SEPARATOR

main74826-90B00i198408-199301

74855PLATE, SEPARATOR CURTAIN SET

main74862-95661×11i198408-199301

74860CURTAIN ASSY, SEPARATE

main74870-90B01i198408-199301

main74870-90B02i198408-199301

74867ABRACKET, SEPARATOR BAR, NO.4

main74867-90B02×4i198408-199301

9010106015

main90101-06015

9011906024

main90119-06024

9026005001

main90260-05001

9026905012

main90269-05012

9331126030

main93311-26030

9338626016

main93386-26016

9354013510

main93540-13510

9361054014

main93610-54014

21 parts on this diagram · 1 diagram in section

SEPARATOR & SEPARATOR CURTAIN for Toyota COASTER

This section contains 21 genuine Toyota parts for the SEPARATOR & SEPARATOR CURTAIN system of the Toyota COASTER. Key components include: HOOK, ROPE, BAND, ROPE HOOK, BAR SUB-ASSY, SEPARATOR, E, BAR SUB-ASSY, SEPARATOR, C, BAR SUB-ASSY, SEPARATOR, D.
