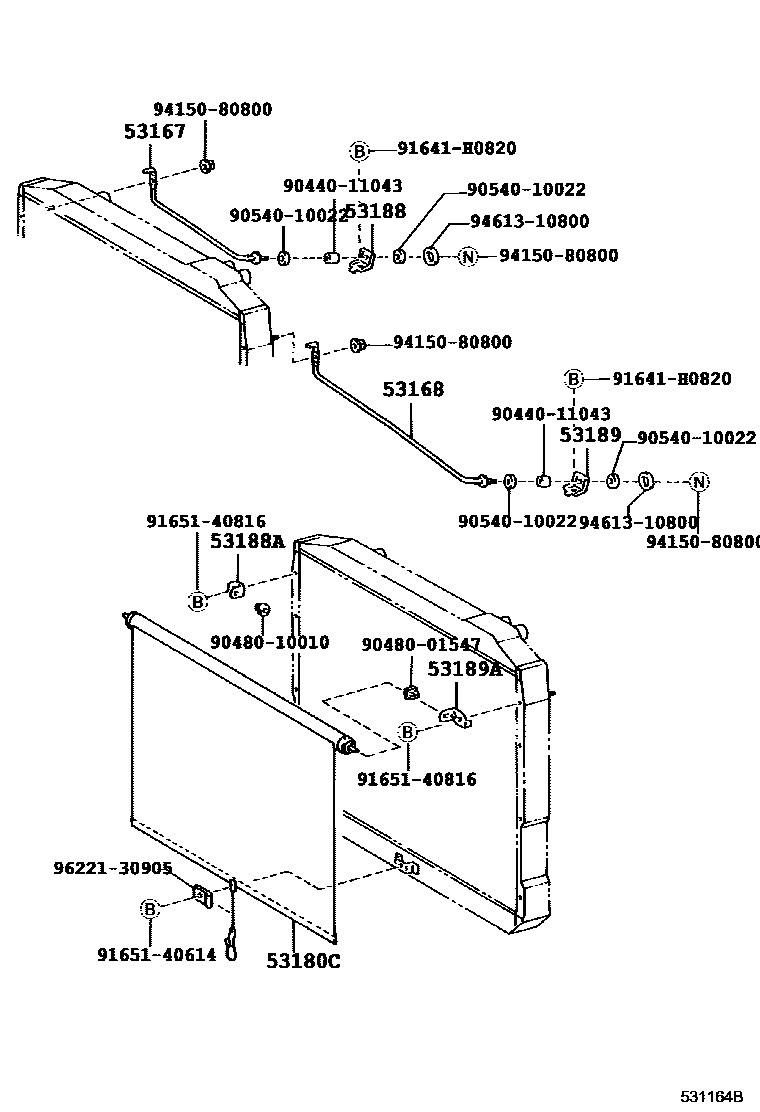

Toyota COASTER — RADIATOR SUPPORT & WIND GUIDE

0001 1 0002 1

53167ROD, RADIATOR BRACE, RH

main16533-17030iHDB5#,HZB4#,5#199907-200408

main16533-58090iBZB40,50200203-200408

main16533-78070iXZB4#,5#..5F,6FC200408-200908

main16533-78140iXZB4#,5#..DX,EX,GX,LX,STD200908-201501

main53167-36100iBB4#,HDB5#,HZB4#,5#199301-199907

53168ROD, RADIATOR BRACE, LH

main16534-17020iHDB5#,HZB4#,5#199907-200408

main16534-58050iBZB40,50200203-200408

main16534-78070iXZB4#,5#..5F,6FC200408-200908

main16534-78120iXZB4#,5#201501

main53169-36090iBB4#,HDB5#,HZB4#,5#199301-199907

53180CSHUTTER ASSY, RADIATOR

main53180-36010iBB4#,HDB5#,HZB4#,5#..CBU,IV5199301-199907

main53180-65010iBB5#199512-199907

53188BRACKET, RADIATOR BRACE ROD, RH

main53168-36010iBZB40,50,HDB5#,HZB4#,5#199907-200408

53188ABRACKET, RADIATOR SHUTTER SUPPORT, RH

main53188-36010iHZB4#,5#199907-200408

main53188-65010iBB5#199512-199907

53189BRACKET, RADIATOR BRACE ROD, LH

main53168-36010iBB4#,HDB5#,HZB4#,5#199301-199907

53189ABRACKET, RADIATOR SHUTTER SUPPORT, LH

main53189-36010iBB4#,HDB5#,HZB4#,5#..CBU,IV5199301-199907

9044011043

main90440-11043

9048001547

main90480-01547

9048010010

main90480-10010

9054010022

main90540-10022

91641H0820

main91641-H0820

9165140614

main91651-40614

9165140816

main91651-40816

9415080800

main94150-80800

9461310800

main94613-10800

9622130905

main96221-30905

17 parts on this diagram · 2 diagrams in section
