Toyota COASTER — RADIATOR SUPPORT & WIND GUIDE

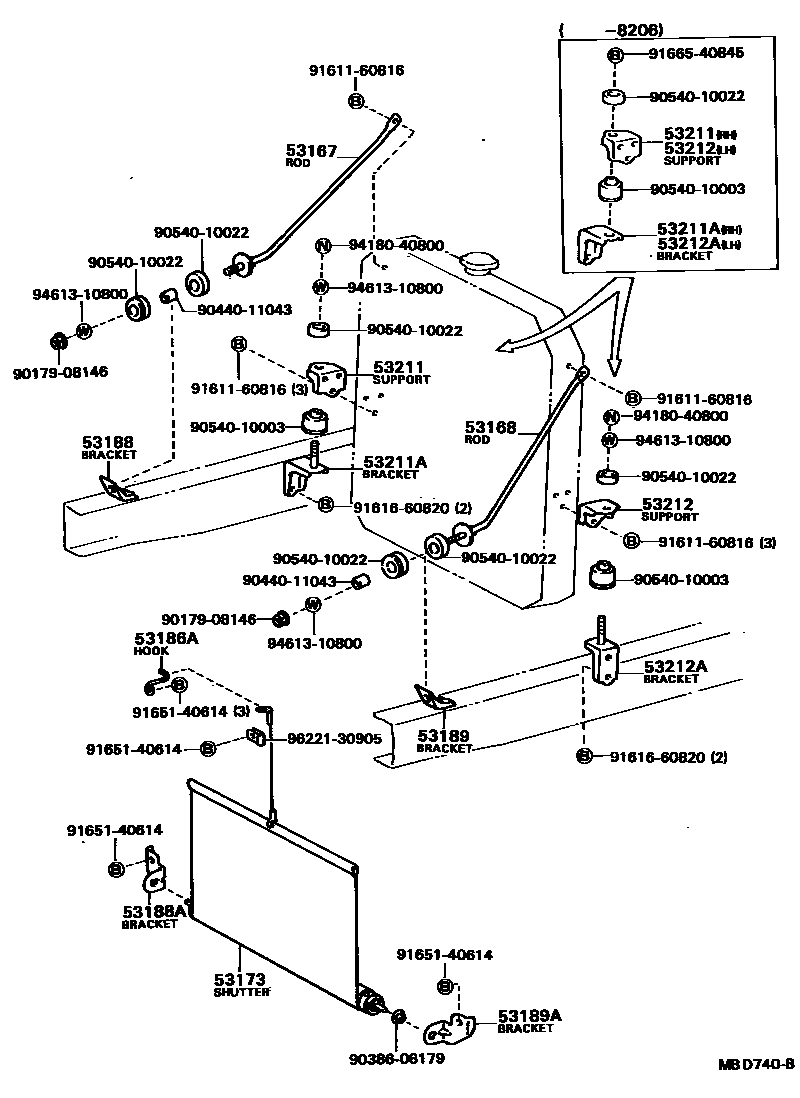

Parts diagram

53167ROD, RADIATOR BRACE, RH

main53167-36060i198205-199301

main53167-36080i198205-199301

53168ROD, RADIATOR BRACE, LH

main53169-36050i198205-199301

main53169-36070i198205-199301

53173SHUTTER SUB-ASSY, RADIATOR WIND

main53180-90B00i198205-198412

main53180-90B01i198205-199301

main53180-90B02i198205-199001

main53180-90B03i199001-199301

53186AHOOK, RADIATOR SHUTTER

main53186-90B00i198205-199301

53188BRACKET, RADIATOR BRACE ROD, RH

main53168-26010i198205-199301

53188ABRACKET, RADIATOR SHUTTER SUPPORT, RH

main53188-90B00i198205-199301

53189BRACKET, RADIATOR BRACE ROD, LH

main53168-26010i198205-199301

53189ABRACKET, RADIATOR SHUTTER SUPPORT, LH

main53189-90B00i198205-199301

53211SUPPORT, RADIATOR, RH

main53211-36040i198205-199301

main53211-36050i198205-199301

53211ABRACKET, RADIATOR SUPPORT, RH

main51411-36070i198205-199301

53212SUPPORT, RADIATOR, LH

main53211-36040i198205-199301

main53211-36050i198205-199301

53212ABRACKET, RADIATOR SUPPORT, LH

main51412-36070i198205-199301

9017908146

main90179-08146

9038606179

main90386-06179

9044011043

main90440-11043

9054010003

main90540-10003

9054010022

main90540-10022

9161160816

main91611-60816

9161660820

main91616-60820

9165140614

main91651-40614

9166540845

main91665-40845

9418040800

main94180-40800

9461310800

main94613-10800

9622130905

main96221-30905

24 parts on this diagram · 2 diagrams in section

RADIATOR SUPPORT & WIND GUIDE for Toyota COASTER

This section contains 27 genuine Toyota parts for the RADIATOR SUPPORT & WIND GUIDE system of the Toyota COASTER. Key components include: ROD, RADIATOR BRACE, RH, ROD, RADIATOR BRACE, LH, SHUTTER SUB-ASSY, RADIATOR WIND, HOOK, RADIATOR SHUTTER, BRACKET, RADIATOR BRACE ROD, RH.
