Toyota COASTER — RADIATOR GRILLE

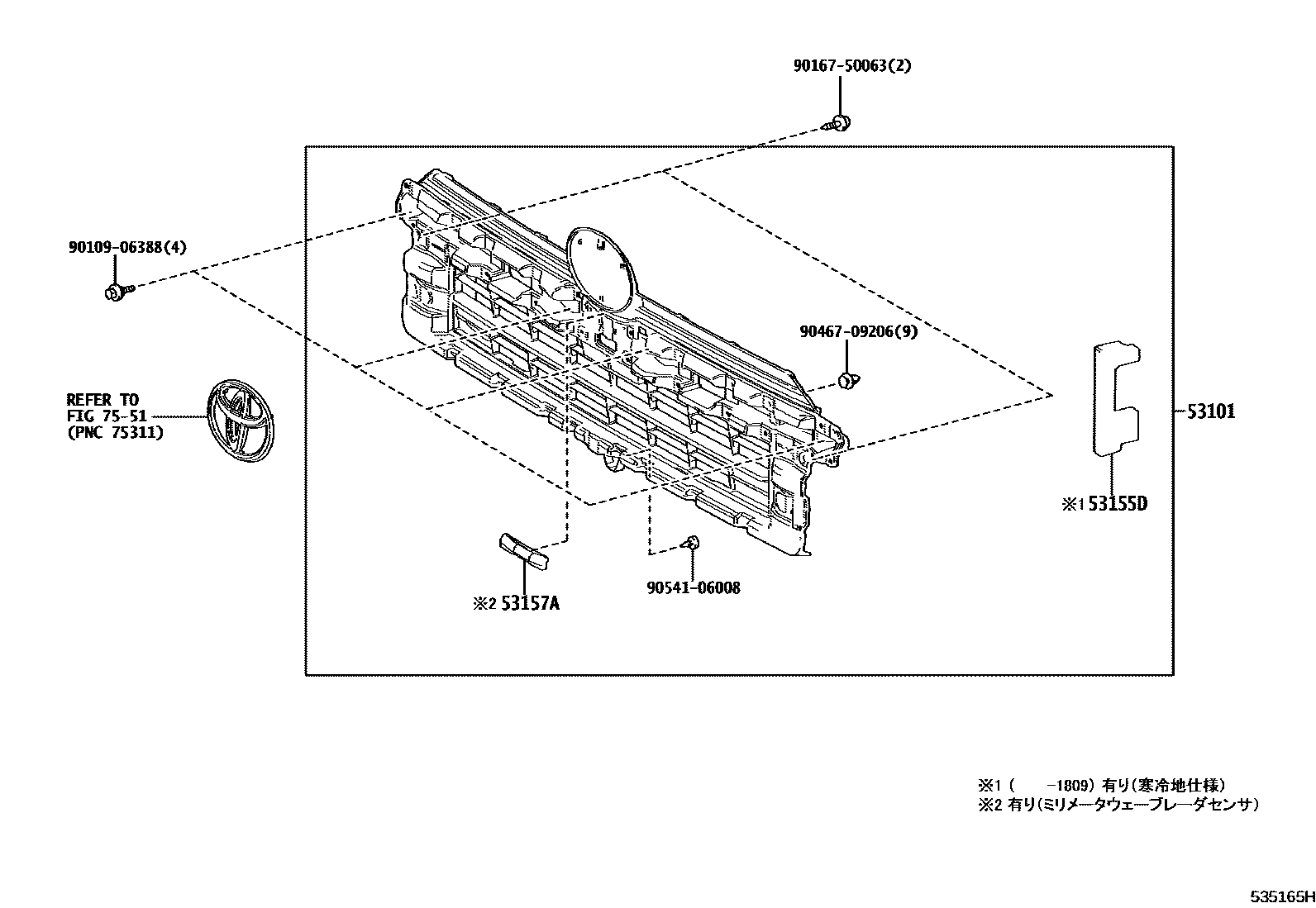

Parts diagram

53101GRILLE SUB-ASSY, RADIATOR

main53101-36080i201701-202101

main53101-36100i202101

main53101-36090supersedes 53101-36080i201701-201807

main53101-36110i201807-201809

53155DSEAL, RADIATOR GRILLE, NO.1

main53155-36070i201701-201809

53157ASEAL, RADIATOR GRILLE, NO.3

main53157-36010i202101-202201

7551EMBLEM & NAME PLATE

→ Go to FIG 75-51

9010906388

main90109-06388

9016750063

main90167-50063

9046709206

main90467-09206

9054106008

main90541-06008

8 parts on this diagram · 1 diagram in section

RADIATOR GRILLE for Toyota COASTER

This section contains 8 genuine Toyota parts for the RADIATOR GRILLE system of the Toyota COASTER. Key components include: GRILLE SUB-ASSY, RADIATOR, SEAL, RADIATOR GRILLE, NO.1, SEAL, RADIATOR GRILLE, NO.3, EMBLEM & NAME PLATE.
