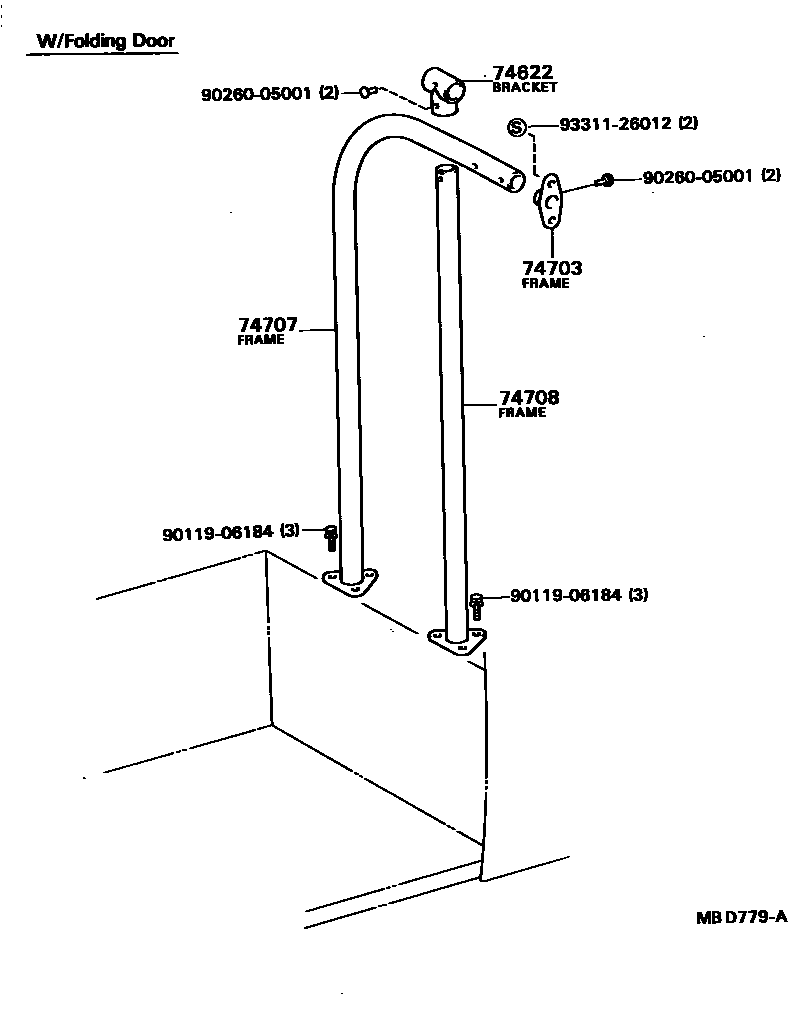

Toyota COASTER — PROTECTOR PIPE, ROLL BAR & HANDRAIL

74622BRACKET, HAND GRIP

main74622-90500i198205-198304

74703FRAME SUB-ASSY, HAND GRIP SIDE

main74703-90B00i198205-198401

main74703-90B00i198401-199301

W/FOLDING DOOR

74707FRAME SUB-ASSY, HAND GRIP, NO.1

main74707-90B00i198205-198304

main74707-90B02i198205-199301

main74707-90B03i198205-199301

main74707-90B03i198310-198401

W/GLIDE DOOR

main74707-90B09i199001-199301

74708FRAME SUB-ASSY, HAND GRIP, NO.2

main74708-90B00i198205-198304

main74708-90B01i198205-199301

main74708-90B02i198310-199301

W/GLIDE DOOR

main74708-90B02i198205-199301

9011906184

main90119-06184

9026005001

main90260-05001

9331126012

main93311-26012

7 parts on this diagram · 6 diagrams in section

PROTECTOR PIPE, ROLL BAR & HANDRAIL for Toyota COASTER

This section contains 56 genuine Toyota parts for the PROTECTOR PIPE, ROLL BAR & HANDRAIL system of the Toyota COASTER. Key components include: STAND, UMBRELLA, C0LLAR(FOR UMBRELLA STAND), MAT, UMBRELLA STAND, COVER, UMBRELLA STAND, BRACKET SUB-ASSY, CENTER PROTECTOR, SIDE.
