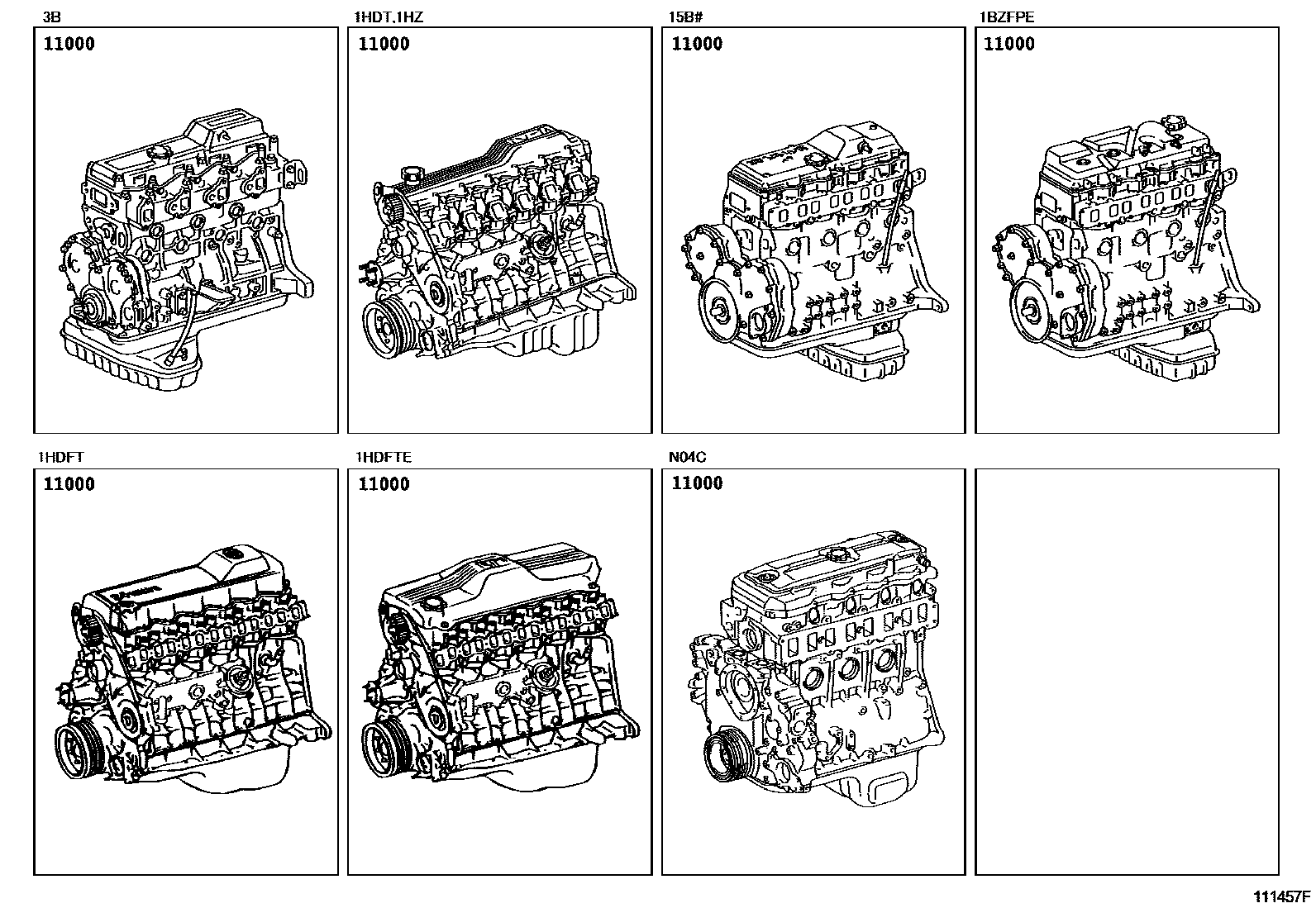

Toyota COASTER — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-17152i1HDT..HDB5#199301-199410

sub19000-17153

main19000-17153i1HDT..HDB5#199410-199411

sub19000-17155

sub91622-G1014

main19000-17155i1HDT..HDB5#199411-199505

sub19000-17157

sub90345-52003

main19000-17161i1HZ..HZB4#,5#199301-199411

sub19000-17163

sub91622-G1014

main19000-17163i1HZ..HZB4#,5#199411-199505

sub19000-17166

sub90345-52003

main19000-17171i1HZ..HZB4#,5#199301-199411

sub19000-17173

sub91622-G1014

main19000-17173i1HZ..HZB4#,5#199411-199505

sub19000-17176

sub90345-52003

main19000-17174i1HZ..HZB4#,5#199505-199705

sub19000-17177

sub90345-52003

main19000-17520i1HDFT..HDB5#199505-199605

sub19000-17521

main19000-17521i1HDFT..HDB5#199605-199705

sub19000-17522

sub90345-52003

main19000-17522i1HDFT..HDB5#199705-199801

sub19000-17523

sub15407-17020

main19000-17523i1HDFT..HDB5#199801-199907

main19000-17550i1HZ..HZB4#,5#199705-199801

sub19000-17551

main19000-17551i1HZ..HZB4#,5#199801-199907

main19000-17800i1HDFTE..HDB5#199907-200105

main19000-17810i1HZ..HZB4#,5#199907-200404

main19000-17920i1HDFTE..HDB5#200105-200404

sub19000-17A30

main19000-17A30i1HDFTE..HDB5#200404-200408

main19000-17A40i1HZ..HZB4#,5#200404-200408

sub19000-17810

main19000-48100i1BZFPE..BZB40,50200203-201612

main19000-48160i1BZFPE..BZB40,50200404-200408

sub19000-48100

main19000-58750i3B..BB40..STD..WOC199301-199505

main19000-58760i3B..BB40..STD..WOC199301-199505

main19000-5C110i3B..BB40..STD..WOC199505-199907

main19000-5C120i3B..BB4#..DX,LX;3B..BB40..STD..WC199505-199907

main19000-5C130i3B..BB40..STD..WOC199505-199907

main19000-5C180i15BF..BB5#199512-199907

main19000-5C380i15BFTE..BB58199907-200404

main19000-5C560i15BFTE..BB58200404-200408

sub19000-5C380

main19000-78E70iN04C..XZB40,50,51..5F201008-201108

sub19000-78Y40

main19000-78G80iN04C..XZB40,50,51..5F201108-201501

sub19000-7CT70

main19000-78G90iN04C..XZB4#,50,56..DCR..6FC201108-201501

sub19000-7CT80

main19000-78H00iN04C..XZB50,51..HDCR201108-201501

sub19000-7CT90

main19000-78J90iN04C..XZB50,51..HDCR201008-201108

sub19000-7CU00

main19000-78L01iN04C..XZB40,50,51..5F201501-201508

sub19000-78L02

main19000-78L02iN04C..XZB40,50,51..5F201508-201612

sub19000-78L03

main19000-78L71iN04C..XZB4#,50,56..DCR..6FC201501-201508

sub19000-78L72

main19000-78L72iN04C..XZB4#,50,56..DCR..6FC201508-201612

sub19000-78L73

main19000-78M01iN04C..XZB50,51..HDCR201501-201508

sub19000-78M02

main19000-78M02iN04C..XZB50,51..HDCR201508-201612

sub19000-78M03

main19000-7C370iN04C..XZB50,51..6F200408-200708

main19000-7C380iN04C..XZB50,51..ATM..HDCR200408-200708

sub19000-7CT00

main19000-7C390iN04C..XZB40,50..5F200408-200708

sub19000-7CT10

main19000-7C400iN04C..XZB4#,50,56..DCR..4FC200408-200708

sub19000-7CT20

main19000-7C810iN04C..XZB40,50,51..5F200708-201008

sub19000-7CT40

main19000-7C860iN04C..XZB4#,50,56..DCR..6FC200708-201108

sub19000-7CT50

main19000-7C870iN04C..XZB50,51..HDCR200708-201008

sub19000-7CT60

1 parts on this diagram · 1 diagram in section
