Toyota COASTER — PARTIAL ENGINE ASSEMBLY

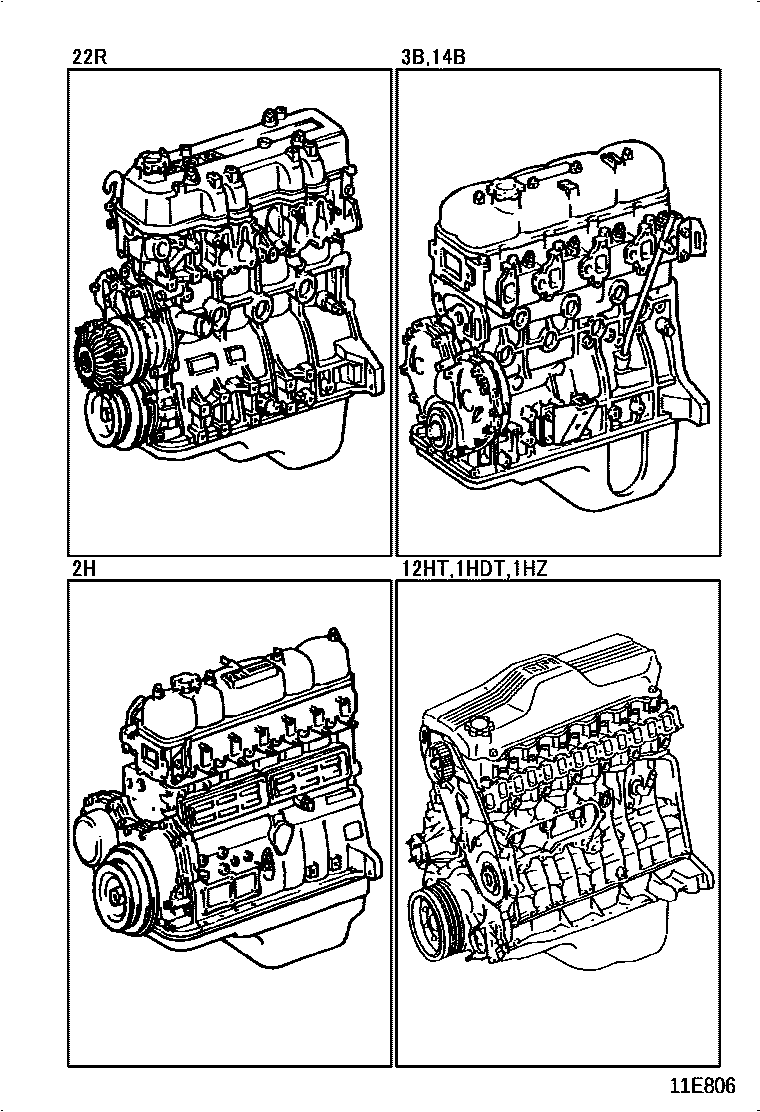

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-17150i199001-199301
sub19000-17154
sub91622-G1014
main19000-17160i199001-199301
sub19000-17162
sub91622-G1014
main19000-17170i199001-199301
COLD SPEC
sub19000-17172
sub91622-G1014
main19000-35100i198205-198208
main19000-35101i198208-198408
main19000-35110i198205-198208
main19000-35111i198208-198408
main19000-35300i198408-198602
main19000-35301i198602-199301
main19000-35310i198408-198602
main19000-35311i198602-199301
main19000-58030i198205-198209
main19000-58031i198209-198302
main19000-58090i198302-198408
main19000-58220i198408-198808
main19000-58230i198408-198808
W/PS
main19000-58520i198808-199301
main19000-58530i198808-199301
W/PS
main19000-58540i198808-199301
sub19000-58740
sub13470-58031
sub90910-09078
main19000-58720i198808-199301
COLD SPEC
sub13470-58031
main19000-58730i198808-199301
W/PS
sub13470-58031
main19000-68080i198205-198411
sub19000-68081
main19000-68090i198205-198411
sub19000-68091
main19000-68120i198411-199001
main19000-68140i198411-199001
COLD SPEC
sub19000-68141
main19000-68150i198510-199001
main19000-68160i198510-199001

1 parts on this diagram · 1 diagram in section
