Toyota COASTER — MOUNTING

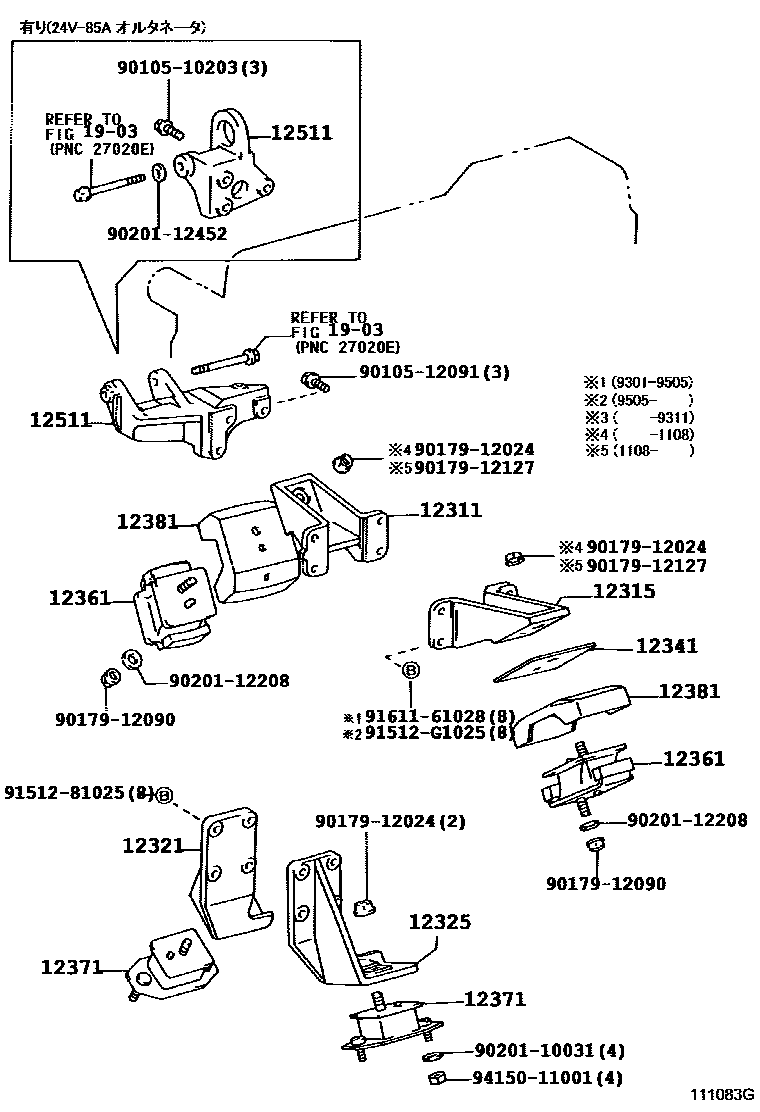

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-17040i199301-199812

main12311-17041i199907-200408

main12311-58080i199301-199907

main12311-58081i201501

main12311-58090i199512-199907

main12311-78101i200408-200409

main12311-78102i200409-200908

main12311-78120i201003-201501

main12311-E0180i201501

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-17040i199301-199812

main12315-17041i199812-199907

main12315-58040i200408-201108

main12315-58041i201108-201501

main12315-58050i199512-199907

main12315-78081i200408-200409

main12315-78082i200409-200708

main12315-78100i201003-201108

main12315-E0100i201501

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-17020i200408-201501

main12321-17030i199301-199907

main12321-17040i199907-200408

main12321-78380i200408-201501

main12321-78390i200408-200708

main12321-78400i200408-200708

main12321-78430i200512-201108

main12321-78590i201501-201612

12325BRACKET, ENGINE MOUNTING, NO.3

main12325-17020i199301-199907

main12325-17030i199907-200408

main12325-17040i199907-200408

main12325-78360i201501-201612

main12325-78370i200408-200708

main12325-78380i200408-200708

main12325-78400i200512-201108

main12325-78550i201501-201612

12341SPACER, ENGINE MOUNTING

main12341-58010i199301-199311

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-17030×2i199301-199306

main12361-17031×2i199306-199907

main12361-17032×2i199907-200408

main12361-58080×2i199301-199311

main12361-58081×2i199311-199907

main12361-58082×2i200203-200408

main12361-58083×2i200910-201106

main12361-58084×2i201501

main12361-58090×2i199907-200408

main12361-78140×2i200610-201105

main12361-78141×2i201106-201107

main12361-78142×2i201107-201108

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-17040×2i199301-199907

main12371-17070×2i201501-201612

main12371-58060i199610-199907

main12371-61060i199512-199610

main12371-78030×2i200408-201501

12381STABILIZER, ENGINE MOUNTING

main12381-17020×2i199301-199907

main12381-17021×2i201501

main12381-78050i200408-200609

main12381-78070i200610-200912

main12381-78071i201001-201501

12511BRACKET, ALTERNATOR, NO.1

main12501-56010i199301-199907

main12501-58050i201501

main12511-17010i199301-199410

main12511-17011i199410-199510

main12511-17012i199510-199801

main12511-17013i199907-200108

main12511-17020i199907-200408

main12511-58050i199301-199907

1903ALTERNATOR

→ Go to FIG 19-03

9010510203

main90105-10203

9010512091

main90105-12091

9017912024

main90179-12024

9017912090

main90179-12090

9017912127

main90179-12127

9020110031

main90201-10031

9020112208

main90201-12208

9020112452

main90201-12452

9151281025

main91512-81025

91512G1025

main91512-G1025

9161161028

main91611-61028

9415011001

main94150-11001

22 parts on this diagram · 4 diagrams in section

MOUNTING for Toyota COASTER

This section contains 39 genuine Toyota parts for the MOUNTING system of the Toyota COASTER. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, BRACKET, ENGINE MOUNTING, REAR, NO.1, BRACKET, ENGINE MOUNTING, NO.3, SPACER, ENGINE MOUNTING.
