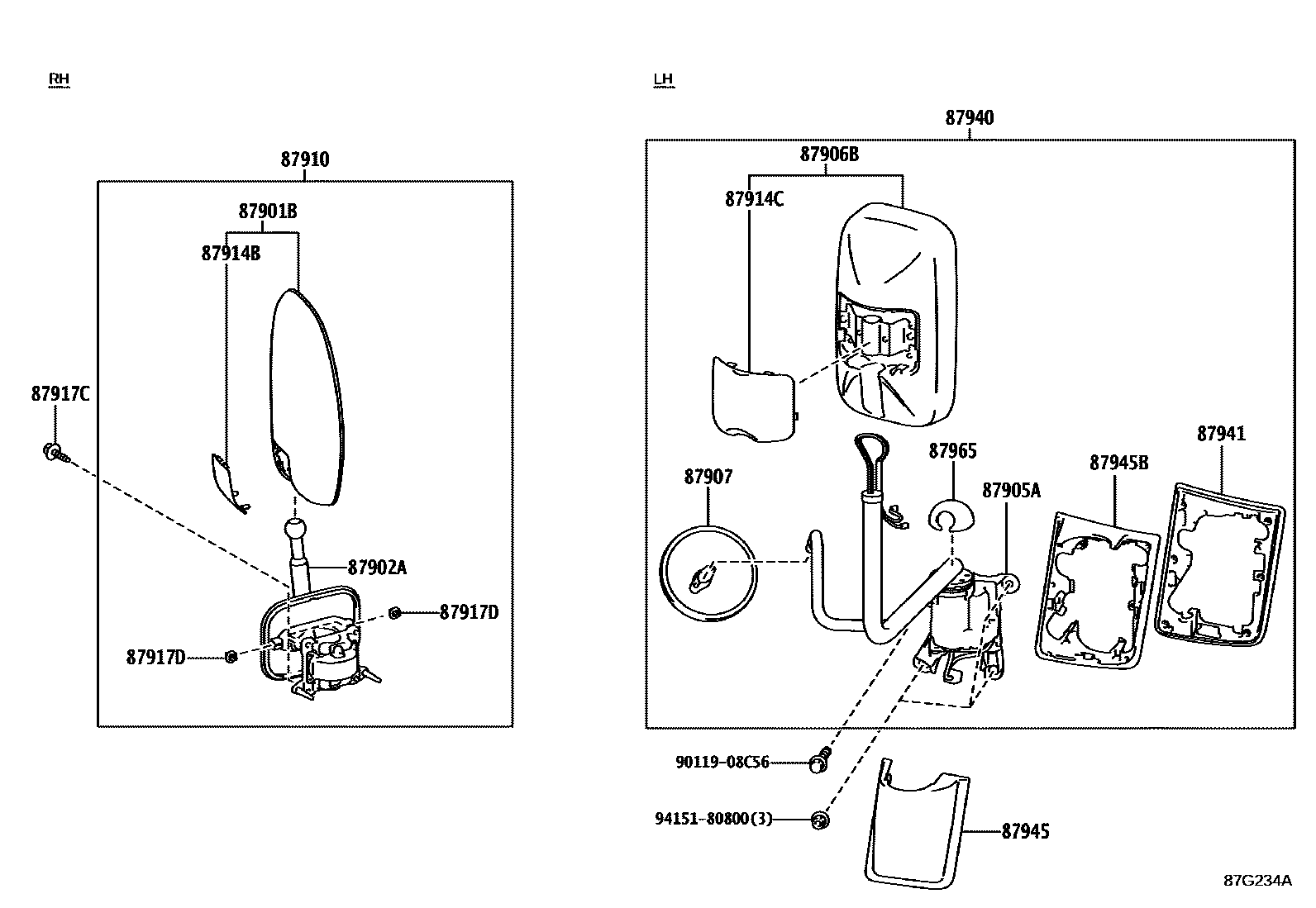

Toyota COASTER — MIRROR
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
main87901-V4010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC202101-202412
87902AARM SUB-ASSY, OUTER REAR VIEW MIRROR, RH
87905AARM SUB-ASSY, OUTER REAR VIEW MIRROR, LH
main87905-V4010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC202101-202412
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
main87901-V4020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC202101-202412
87907MIRROR SUB-ASSY, OUTER UNDER VIEW
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-V4010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC202101-202412
87914BCOVER, OUTER MIRROR KNOB, RH
main87914-37010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
87914CCOVER, OUTER MIRROR KNOB, LH
main87914-37040iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
87917CSCREW, OUTER MIRROR
main87929-26020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
87917DCLIP, OUTER MIRROR
main62955-50010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-V4010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC202101-202412
87941GASKET, OUTER REAR VIEW MIRROR, LH
87945COVER, OUTER MIRROR, LH
main87945-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
87945BCOVER, OUTER MIRROR, LH
main87944-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
87965GROMMET, OUTER MIRROR
9011908C56
main90119-08C56
9415180800
main94151-80800
17 parts on this diagram · 3 diagrams in section
MIRROR for Toyota COASTER
This section contains 24 genuine Toyota parts for the MIRROR system of the Toyota COASTER. Key components include: MIRROR ASSY, INNER REAR VIEW, ABSORBER, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, ARM SUB-ASSY, OUTER REAR VIEW MIRROR, RH.
