Toyota COASTER — MIRROR

0001 1�����- 0002 1�����-(�����������) 0003 1�����-(������������) 0004 1��������-

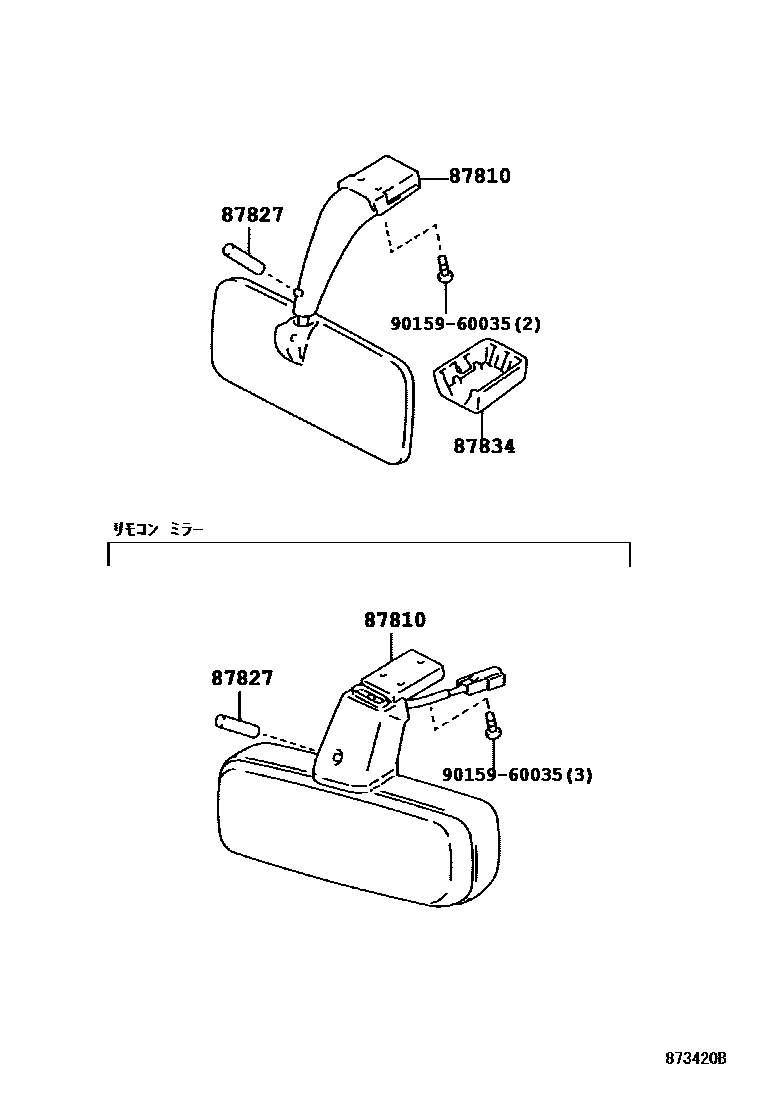

87810MIRROR ASSY, INNER REAR VIEW

main87810-36010-A0iBB4#,HDB5#,HZB4#,5#199301-199505

IVORY,TRIM4#

sub87810-36010

main87810-36010-A1iBB4#,5#,HDB5#,HZB4#,5#..CBU,IV5199505-199907

IVORY,TRIM4#

sub87810-36010

main87810-36030-A0iHDB51,HZB41199301-199505

sub87810-36031

main87810-36031iHDB51,HZB41..CBU,IV5199505-201612

main87810-36040-A0iBB58,HDB5#,HZB4#,5#..CBU,IV5199907-200108

IVORY,TRIM4#

sub87810-36040

main87810-36040-B0iXZB51..6FC;BZB40,50,XZB4#,50,56200108-201612

MD.CHARCOAL,TRIM1#

sub87810-36040

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-10010iHDB51,HZB41199301-201501

main87828-30010iXZB50..HDCR;XZB50..WC..5F;XZB40..5F..CBU199301-201501

L=44.0

main87828-32010iXZB51..SULNG..6FC199301-201501

L=47.0

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-A0iBB46,HZB56;BB40,HZB50..DX,STD199301-199505

IVORY,TRIM4#

sub87834-20080

main87834-20080-A1iBB46,HZB56;BB40,58,HZB40,50..DX,STD199505-200108

IVORY,TRIM4#

sub87834-20080

main87834-20080-B5iBB58,BZB40,50,HZB40,50..DX,STD200108-201612

MD.CHARCOAL,TRIM1#

sub87834-20080

9015960035

main90159-60035

4 parts on this diagram · 4 diagrams in section
