Toyota COASTER — MIRROR

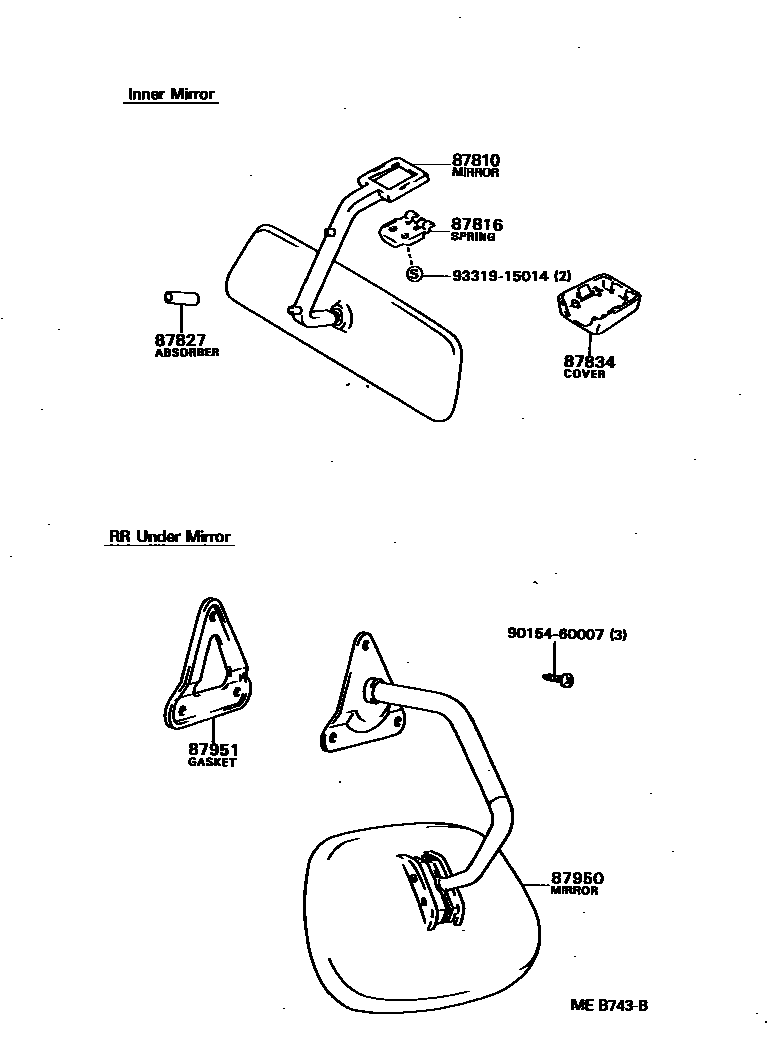

Parts diagram
87810MIRROR ASSY, INNER REAR VIEW
main87801-90B00i198205-199301
87816SPRING, INNER REAR VIEW MIRROR
main74372-30030i198205-199301
87827ABSORBER, INNER REAR VIEW MIRROR
main87828-22020i198205-198704
L=35.8
main87828-23010i198205-199301
L=40.5
main87828-30010i198205-199301
L=44
main87828-87002i198704-199301
L=35.8
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87834-20080-08i198205-199301
IVORY,IVORY
87950MIRROR ASSY, OUTER UNDER REAR VIEW
main87950-90B00i198205-199301
87951GASKET, OUTER UNDER REAR VIEW MIRROR
main87951-90B00i198205-199301
main87951-90B01i198205-199301
9015460007
main90154-60007
9331915014
main93319-15014

8 parts on this diagram · 2 diagrams in section

MIRROR for Toyota COASTER

This section contains 16 genuine Toyota parts for the MIRROR system of the Toyota COASTER. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, ABSORBER, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER UNDER VIEW.
