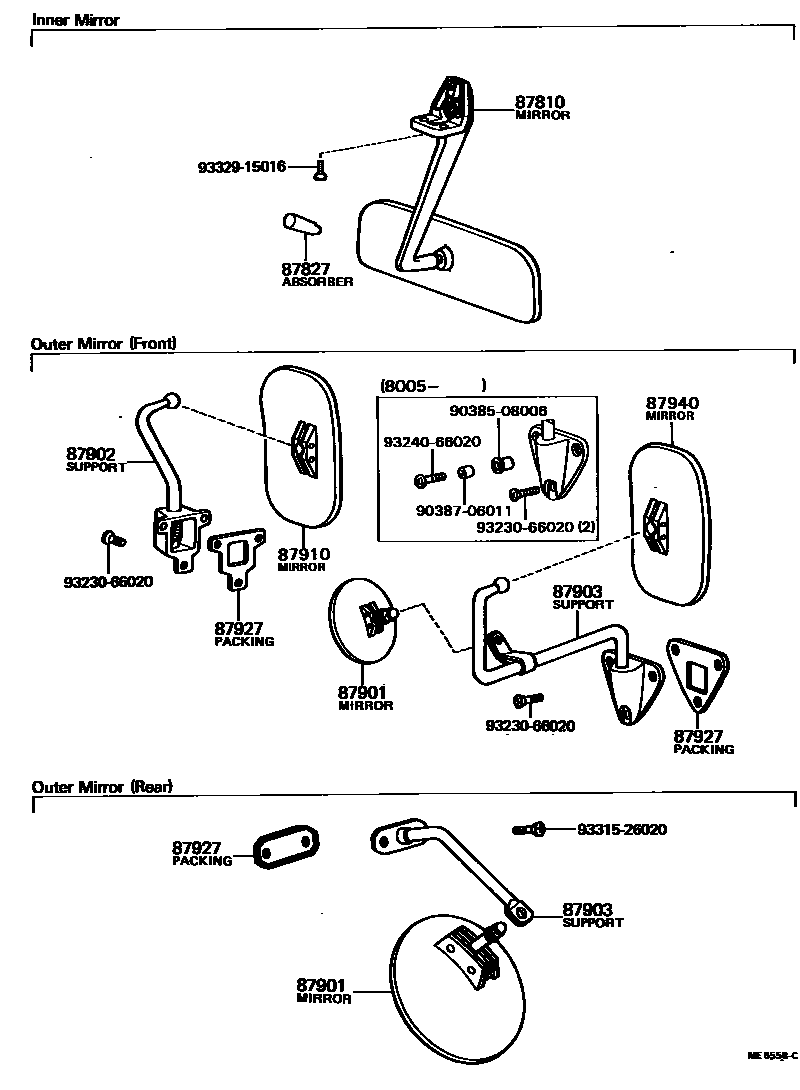

Toyota COASTER — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-90740iBB1#,RB1#197708-198204

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-90301iBB10,RB11197708-197710

L=57.5

main87828-90500iBB1#,RB1#197710-198204

L=58.5

main87828-90501iBB1#,RB1#197710-198204

L=62

main87828-90502iBB1#,RB1#197710-198204

L=65.5

87901MIRROR SUB-ASSY, OUTER UNDER VIEW

main87901-90740iBB1#,RB1#..DLX;BB1#,RB1#..21S,25S,39C197708-198204

RR

main87906-95261iBB1#,RB1#197708-198204

FR

sub87906-95A05

87902SUPPORT, REAR VIEW OUTSIDE MIRROR, RH

main87902-90740iBB1#,RB1#197708-198204

87903SUPPORT, REAR VIEW OUTSIDE MIRROR, LH

main87902-90742iBB10,RB11..DLX;BB10,RB11..21S,25S,39C197708-197911

UNDER RR

main87905-90740iBB10,RB11197708-197911

sub87905-90745

sub90385-08006

sub90387-06011

sub93240-66020

main87905-90742iBB11,RB12197911-198005

sub90385-08006

sub90387-06011

sub93240-66020

main87905-90744iBB11,RB1#198005-198204

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87901-90741iBB11,RB1#197911-198204

main87901-95406iBB10,RB11197708-197710

sub87901-95412

main87901-95407iBB10,RB11197710-197911

sub87901-95412

87927PACKING, REAR VIEW OUTSIDE MIRROR STAY

main87911-90300iBB1#,RB1#197708-198204

FR RH

main87911-90501iBB11,RB13198010-198204

FR LH

main87911-90740iBB1#,RB1#197708-198005

FR LH

main87911-90741iBB10,RB11..DLX;BB10,RB11..21S,25S,39C197708-197911

RR

main87911-90743iBB11,RB1#198005-198010

FR LH

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87901-90741iBB11,RB1#197911-198204

main87901-95406iBB10,RB11197708-197710

sub87901-95412

main87901-95407iBB10,RB11197710-197911

sub87901-95412

9038508006

main90385-08006

9038706011

main90387-06011

9323066020

main93230-66020

9324066020

main93240-66020

9331526020

main93315-26020

9332915016

main93329-15016

14 parts on this diagram · 1 diagram in section
