Toyota COASTER — METER

0001 1��� 0002 1������

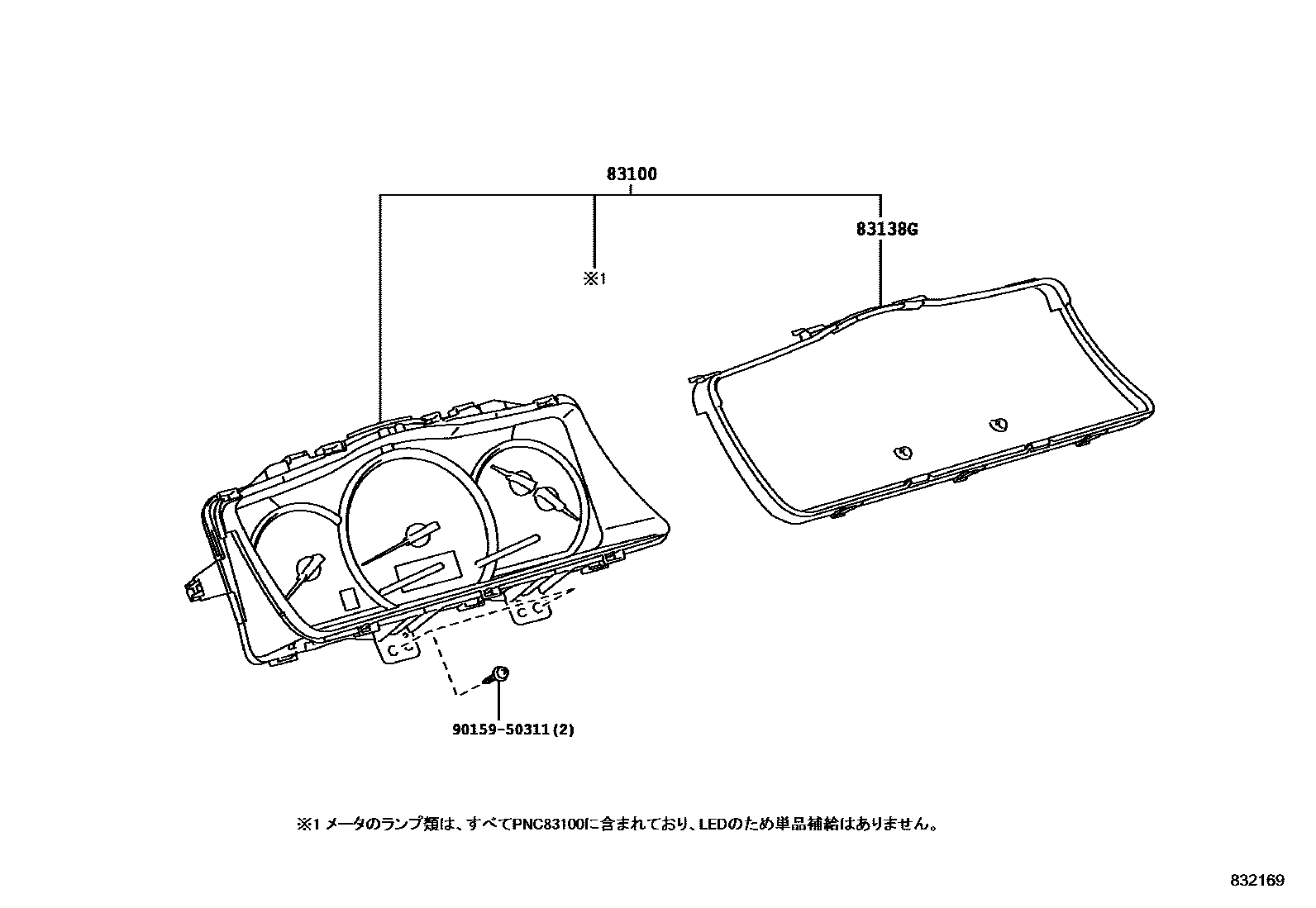

83100METER ASSY, COMBINATION

main83800-36C70iXZB60,70..5F..(EX,GX,LX)201701-201807

main83800-36C80iXZB60,70..6FC..(EX,GX,LX)201701-201807

main83800-36F70iXZB60,70..5F..(EX,GX,LX)201807-201908

main83800-36F80iXZB60,70..6FC..(EX,GX,LX)201807-201908

main83800-36G10iXZB60,70..5F..(EX,GX,LX)201908-202101

main83800-36G20iXZB60,70,80..6FC..(EX,GX,LX,PREM)201908-202101

main83800-36G30iXZB60,70..5F..S201908-202101

main83800-36G40iXZB60,70..6FC..S201908-202101

main83800-V4060iXZB60,70..5F202101-202102

main83800-V4061iXZB60,70..5F202201-202312

main83800-V4062iXZB60,70..5F202103-202201

main83800-V4070iXZB60,70,80..6FC202101-202102

main83800-V4071iXZB60..09S;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC202201-202312

main83800-V4072iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR202103

main83800-V4160iGDB60,70,80202201-202401

main83800-V4161iGDB60,70,80202401-202412

83138GGLASS, COMBINATION METER

main83852-26D70iXZB70..S;XZB60..5F..S201908-202201

main83852-26E40iXZB60,70..EX,GX,LX201701-201807

9015950311

main90159-50311

3 parts on this diagram · 2 diagrams in section
