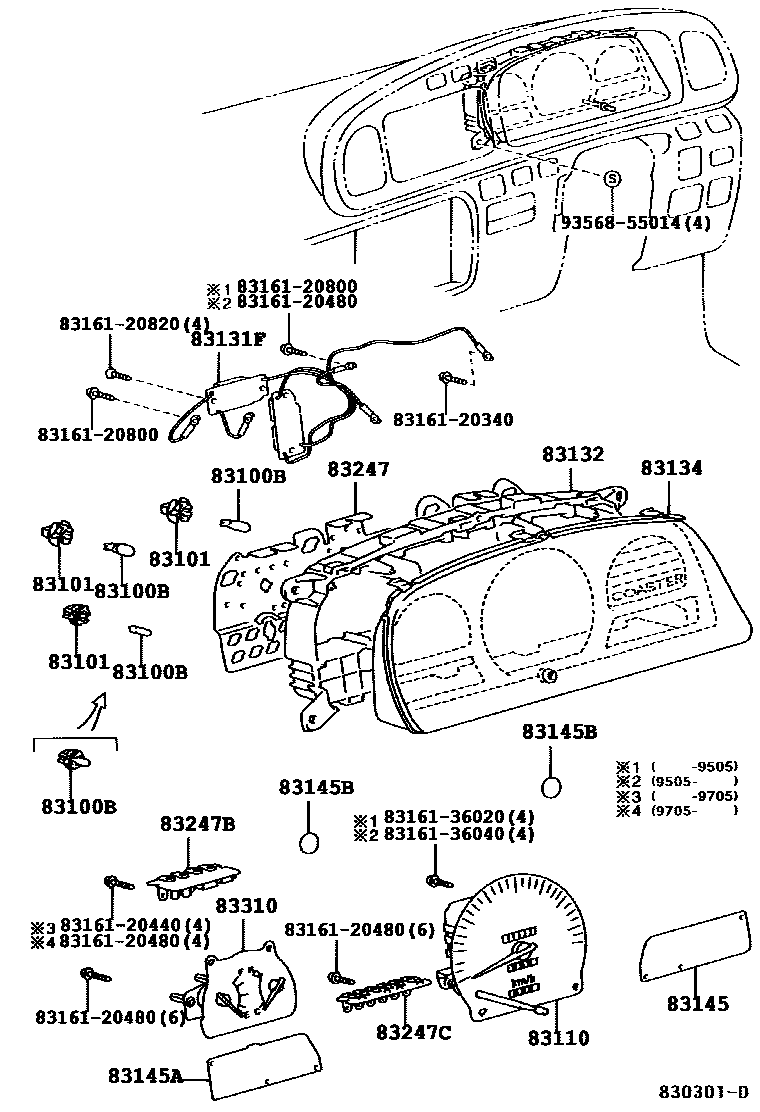

Toyota COASTER — METER

0001 1��(�����) 0002 1��(���-�) 0003 1 0004 1 0005 1�����&���� 0006 1�����&���� 0007 1����&���������

83100METER ASSY, COMBINATION

main83800-36850iXZB4#,5#200908-201108

main83800-36851iXZB4#,5#201108-201208

main83800-36852iXZB4#,5#201209-201501

main83800-36860iXZB4#,5#200908-201108

main83800-36861iXZB4#,5#201108-201208

main83800-36862iXZB4#,5#201209-201501

main83800-36870iXZB4#..DX,LX,STD200908-201108

main83800-36871iXZB40..DX,LX,STD201108-201208

main83800-36872iXZB40..LX,STD201501

main83800-36880iXZB4#..DX,LX,STD200908-201108

main83800-36881iXZB40..DX,LX,STD201108-201208

main83800-36882iXZB40..DX,LX,STD201209-201501

main83800-36890iBZB40,50..STD200908-201108

main83800-36891iBZB40,50201209-201501

83100BBULB, COMBINATION METER, NO.1

main83119-36020iBB4#,55,HDB5#,HZB4#,5#199301-199610

main83119-36040iBB4#,HDB5#,HZB4#,5#199301-199505

main83120-24010iBZB40,50200708-200908

main83120-36010iHZB40,46..08S,19S200211-200408

main83120-60020iBZB40,50..STD200401-200408

main90010-06007iBZB40,50200408-200708

main90010-06008iBB5#199610-199907

main90010-06009iXZB4#,5#200408-200708

main90010-06011iBZB40,50..LX200203-200408

main90010-06062iXZB4#,5#200708-200908

main90981-11022iBB4#,55,HDB5#,HZB4#,5#199301-199610

main99134-12030iBB4#,HDB5#,HZB4#,5#199610-199907

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-89101iBB4#,55,HDB5#,HZB4#,5#199301-199610

main83101-95020iBB4#,55,HDB5#,HZB4#,5#199301-199610

83110SPEEDOMETER ASSY

main83110-36370iBB4#199301-199505

main83110-36380iHZB40,5#..DX,LX,STD199301-199505

main83110-36390iHDB5#,HZB41,50..EX,GX,SULNG199301-199505

main83220-36010iBB4#199505-199610

main83220-36020iHDB5#,HZB4#,5#199610-199705

main83220-36030iBZB40,50..LX200203-200401

sub83220-36031

main83220-36120iHDB5#,HZB4#,5#199705-199907

main83220-36121iBZB40,50,XZB4#,5#..5F,6FC200408-200908

83131FDROPER ASSY, METER

main83131-36100iHZB40,41..10S,19S;BB58,HDB5#,HZB46..08S,20S,24S,26S,29S199907-200408

main83131-36140iBB4#,5#,HZB4#,5#199301-199907

83132CASE, COMBINATION METER

main83132-36020iBB4#,5#,HDB5#,HZB4#,5#199301-199907

main83841-36420iHZB40,50;BB58,BZB40,50,HDB5#,HZB41,46,56..HRF199907-200408

83134COVER, COMBINATION METER, NO.1

main83134-36020iHDB5#199301-199505

main83134-36040iBB4#,HZB40,5#..DX,LX,STD199301-199505

main83134-36060iHZB41,50..EX,GX199301-199505

main83134-36080iBZB40,50,XZB4#,5#200408-200908

main83821-36110iHZB4#,5#199907-200108

main83821-36850iBZB40,50,XZB4#,5#201501

83145LENS, METER, NO.1

main83145-36040iBB4#,HDB5#..5F199301-199505

main83145-36060iHZB4#,5#;HDB5#..4FC199301-199505

main83145-36570iBB4#,HDB5#,HZB4#,5#199505-199907

main83831-36420iBZB40,50..STD200401-200408

main83831-36671iBZB40,50,XZB4#,5#200508-200708

main83832-36010iBB5#199512-199907

main83832-36672iBZB40,50,XZB4#,5#200708-200908

83145ALENS, METER, NO.2

main83145-36200iHDB5#..5F199301-199505

main83145-36240iHZB40,5#..DX,LX,STD199301-199505

main83145-36260iHZB41,50..EX,GX199301-199505

main83145-36320iHDB5#..4FC199301-199505

main83145-36500iBZB40,50..STD200401-200408

main83831-36010iBB58199907-200408

main83831-36670iXZB4#,5#200408-200708

main83831-36672iBZB40,50,XZB4#,5#200708-200908

83145BLENS, METER, NO.3

main83145-89245×2iHZB40,41..10S,19S;BB58,BZB40,50,HDB5#,HZB46..08S,20S,24S,26S,29S199907-200408

main83145-89320×2iBB4#,5#,HDB5#,HZB4#,5#199301-199907

83247PLATE, METER CIRCUIT

main83247-36020iHDB5#199610-199907

main83247-36040iBB4#199301-199907

main83247-36060iHZB4#,5#199301-199907

main83861-36080iBB5#199610-199907

main83861-36410iHZB40,46199907-200408

main83861-36430iBB58199907-200408

main83861-36640iBZB40,50..STD200401-200408

main83861-36643iBZB40,50200708-200908

main83861-36670iXZB4#..DX,LX,STD200408-200708

main83861-36672iXZB4#,5#200708-200908

main83861-36690iXZB4#..DX,LX,STD200408-200508

main83861-36691iXZB4#..DX,LX,STD200508-200708

main83861-36742iXZB4#..DX,LX,STD200708-200908

main83862-36420iHZB40,46..09S,26S,39S199907-200408

83247BPLATE, METER CIRCUIT, NO.2

main83247-36240iBB58,HDB5#,HZB4#,5#199907-200408

main83247-36260iBZB40,50..STD200401-200408

main83862-36643iBZB40,50200708-200908

main83862-36672iXZB4#,5#200708-200908

83247CPLATE, MATER CIRCUIT, NO.3

main83861-36420iHDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S,39S,49S199907-200408

main83862-37420iBZB40,50..STD200401-200408

83310GAGE ASSY, FUEL RECEIVER

main83243-36020iXZB4#,5#200408-200908

main83243-36040iBZB40,50..STD200401-200408

8316120340CASE, COMBINATION METER MIRROR, NO.1

main83161-20340

8316120440CASE, COMBINATION METER MIRROR, NO.1

main83161-20440

8316120480CASE, COMBINATION METER MIRROR, NO.1

main83161-20480

8316120800CASE, COMBINATION METER MIRROR, NO.1

main83161-20800

8316120820CASE, COMBINATION METER MIRROR, NO.1

main83161-20820

8316136020CASE, COMBINATION METER MIRROR, NO.1

main83161-36020

8316136040CASE, COMBINATION METER MIRROR, NO.1

main83161-36040

9356855014

main93568-55014

22 parts on this diagram · 7 diagrams in section
