Toyota COASTER — METER

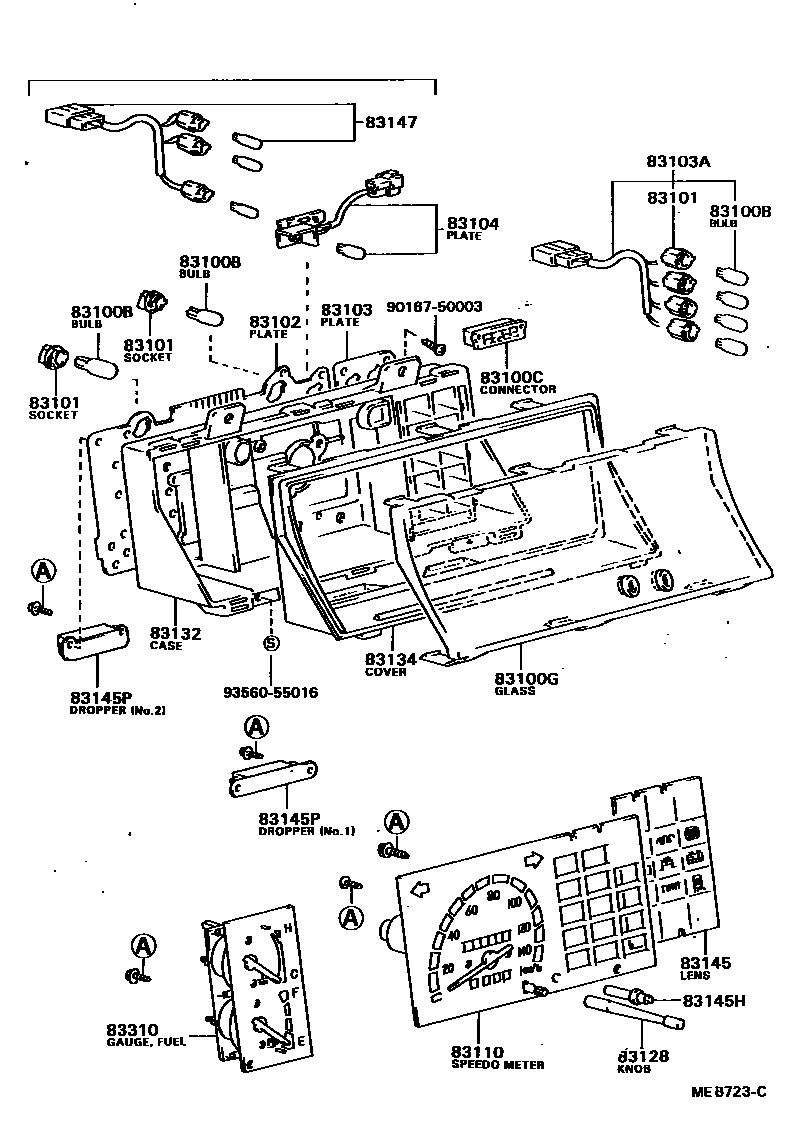

0001 1 0002 1 0003 1 0004 1

83100BBULB, COMBINATION METER, NO.1

main90981-11018iRB2#198205-199301

main90981-11022iBB2#,3#,HB3#,HDB20,3#,HZB3#198205-199301

main90981-16010iBB2#,31,HDB20,3#,HZB3#199001-199301

main93540-13016iRB20..DLX199001-199301

12V 3.4W,W/SPEEDO SENSOR

main99132-12034iRB2#198205-199301

main99134-12030iBB2#,3#,HB3#198205-199001

83100CCONNECTOR, COMBINATION METER

main90980-08208iHB30..EX,EXS198205-198408

83100GGLASS, COMBINATION METER

main83138-90000iHDB20,3#,HZB3#199001-199301

main83138-90B00iBB2#,3#,HB3#,RB2#198205-199301

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040iRB2#198205-199301

12V 1.4W

main83101-20040iRB2#198205-199301

12V 3.4W

main83101-89101iBB2#,3#,HB3#,HDB20,3#,HZB3#198205-199301

24V 3W

main83101-95020iBB2#,3#,HB3#,HDB20,3#,HZB3#198205-199301

24V 1.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-90B00iBB2#,3#,HB3#198205-198510

main83247-90B01iRB2#198205-198510

main83247-90B07iBB2#,3#,HB3#,HDB20,3#,HZB3#198510-199301

main83247-90B09iRB2#198510-199301

83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2

main83247-90B04iBB2#,3#,HB3#198205-198510

main83247-90B08iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198510-199301

83103ALAMP SUB-ASSY, METER

main83103-90B00iHB30,31,32..EX,EXS198205-199001

83104PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.3

main83247-90000iHB32198808-199001

main83247-90001iBB24198808-199001

main83247-90004iHZB31199001-199301

main83247-90005iHDB30199001-199301

main83247-90006iHDB20,31199001-199301

main83247-90B06iBB24199001-199301

83110SPEEDOMETER ASSY

main83110-90B00iBB2#,3#,RB2#198205-198510

main83110-90B01iBB26,36,HB36,RB2#..DLX198205-198510

W/*AUD OR *EB

main83110-90B07iBB2#,31,HB36,RB20198808-199001

main83110-90B08iBB21,23,26,31,HB36198808-199001

W/*AUD OR *EB

main83110-90B17iHDB20,3#,HZB3#199001-199301

83128KNOB, TRIP COUNTER

main83128-90B00iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

83132CASE, COMBINATION METER

main83132-90001iHZB30,36199001-199301

main83132-90002iHZB30,36199001-199301

W/SUB FUEL TANK

main83132-90003iHDB20,31,HZB31199001-199301

main83132-90004iHDB30199001-199301

main83132-90005iHDB30199001-199301

W/SUB FUEL TANK

main83132-90006iHDB31,HZB31199001-199301

W/SUB FUEL TANK

main83132-90B00iBB21,23,26,31,HB30,36,RB20198808-199301

main83132-90B01iHB31198510-199001

W/SUB FUEL TANK

main83132-90B02iHB31198510-199001

main83132-90B03iBB3#,HB30,36..10S,29S198510-199301

W/SUB FUEL TANK

main83132-90B04iHB32198808-199001

W/SUB FUEL TANK

main83132-90B05iBB24,HB32198808-199001

83134COVER, COMBINATION METER, NO.1

main83134-90B00iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

83145LENS, METER, NO.1

main83131-90000iHZB30,36199001-199301

main83131-90001iHZB31199001-199301

main83131-90006iHDB30199001-199301

main83131-90007iHDB20,31199001-199301

main83145-90B00iRB2#198408-198510

main83145-90B03iBB2#,3#,HB3#198408-198510

main83145-90B06iBB24199001-199301

main83145-90B07iBB21,23,26,31,HB30,36,RB20198808-199301

main83145-90B12iBB24198808-199001

main83145-90B13iHB32198808-199001

83145HKNOB, COMBINATION METER

main83145-22090iHDB20,3#,HZB3#199001-199301

83145PDROPPER, METER

main83340-90B00iBB2#,3#,HB3#,HDB20,3#,HZB3#198205-199301

NO.1

main83340-90B01iBB2#,3#,HB30198205-198307

NO.2

main83340-90B02iBB2#,3#,HB3#,HDB20,3#,HZB3#198307-199301

NO.2

83147LAMP, METER NO.1

main83147-90001iHDB20,31,HZB31199001-199301

83310GAGE ASSY, FUEL RECEIVER

main83243-90B00iBB2#,3#,HB30198205-198307

main83243-90B02iRB2#198205-199301

main83243-90B04iBB2#,3#,HB3#198307-198510

main83243-90B05iHDB3#,HZB3#199001-199301

W/SUB FUEL TANK

9016750003

main90167-50003

9356055016

main93560-55016
