Toyota COASTER — METER

0001 1 0002 1

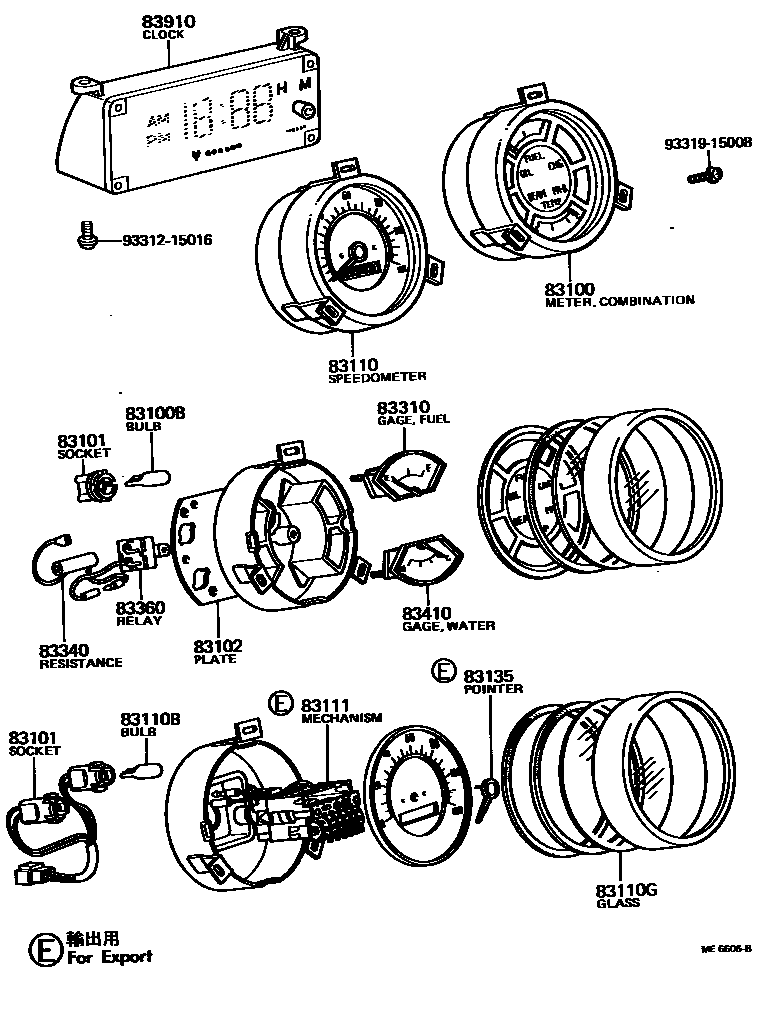

83100METER ASSY, COMBINATION

main83100-36052iRB11197708-197911

main83100-36053iRB1#197911-198204

main83100-36061iBB10197708-197911

main83100-36062iBB11197911-198204

83100BBULB, COMBINATION METER, NO.1

main90981-16010×5iBB1#197708-198204

sub99134-12030

main99132-12034×5iRB1#197708-198204

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-12010×5iBB1#,RB1#197708-198204

COMBINATION METER

main83101-36010×2iBB1#,RB1#197708-198204

SPEEDOMETER

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83102-36021iBB1#197708-198204

main83102-36030iRB1#197708-198204

83110SPEEDOMETER ASSY

main83110-36240iRB1#197708-198204

W/TRIP METER

main83110-36250iBB1#197708-198204

W/TRIP METER

main83110-36270iBB11197911-198204

W/EXHAUST BRAKE

main83110-36280iRB13..25S;RB13..26S..DLX;RB13..26S..STD..SRF198008-198204

W/AUTOMATIC DOOR

83110BBULB, SPEEDOMETER

main90981-16010×2iBB1#197708-198204

24V 3W

sub99134-12030

main99132-12034×2iRB1#197708-198204

12V 3.4W

83110GGLASS, SPEEDOMETER

main83138-36240iBB1#,RB1#197708-198204

W/TRIP METER

83111MECHANISM, SPEEDOMETER

83135POINTER, SPEEDOMETER

83310GAGE ASSY, FUEL RECEIVER

main83310-60031iBB1#,RB1#197708-198204

83340RESISTANCE ASSY, FUEL RECEIVER GAGE

main83340-36010iBB1#197708-198204

83360RELAY ASSY, FUEL SENDER

main83360-20011iRB1#197708-198204

main83360-36010iBB1#197708-198204

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83410-60032iBB1#,RB1#197708-198204

83910CLOCK ASSY

main83910-36020iRB1#197911-198204

DIGITAL

main83910-36030iBB11197911-198204

DIGITAL

9331215016

main93312-15016

9331915008

main93319-15008

16 parts on this diagram · 2 diagrams in section
