Toyota COASTER — INSTRUMENT PANEL & GLOVE COMPARTMENT

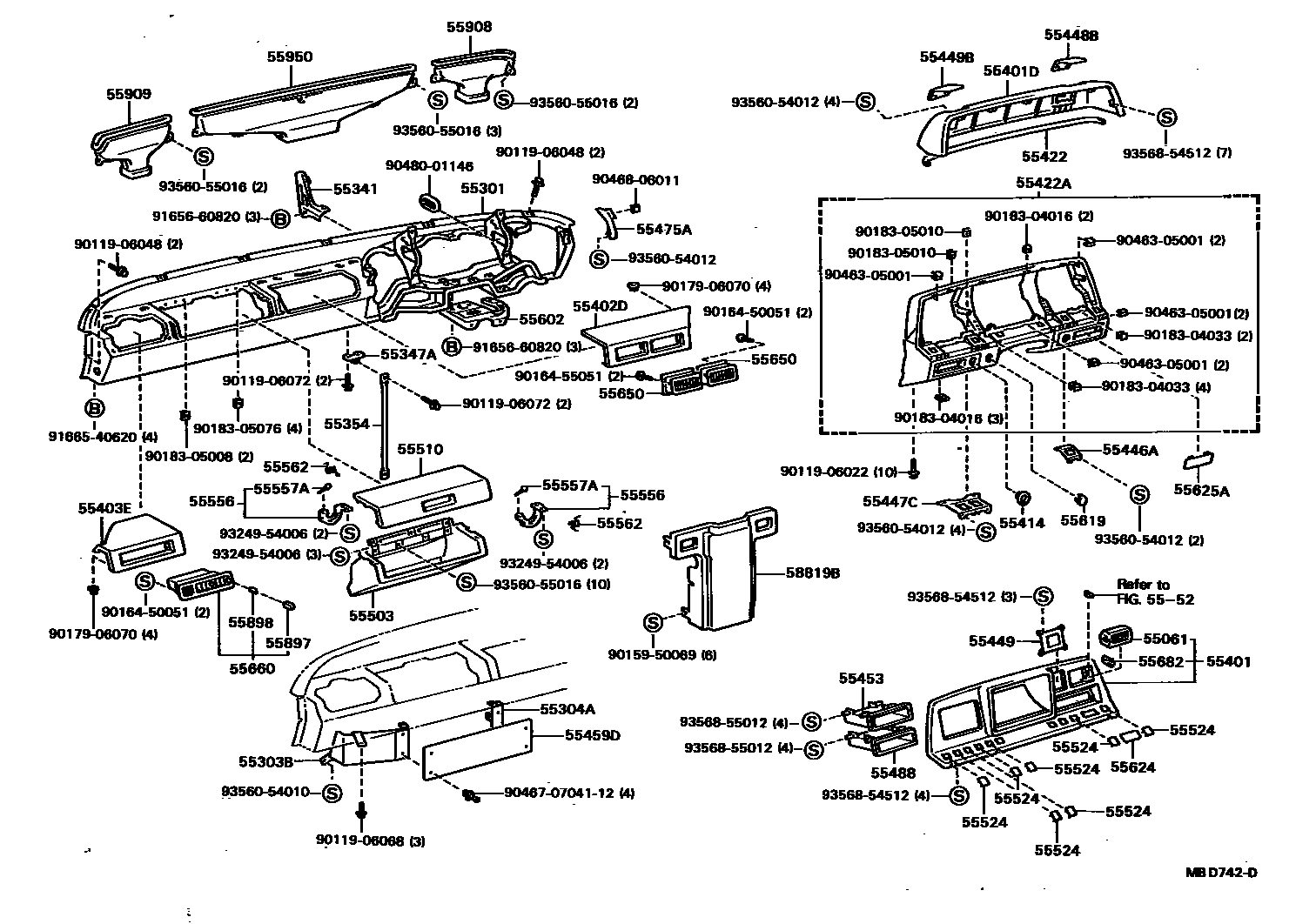

Parts diagram
55061REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1
main55061-30011i198205-199301
55301PANEL SUB-ASSY, INSTRUMENT
main55300-90B00i198205-198510
main55300-90B02i198408-198510
W/PASSENGER SIDE DOOR
main55300-90B03-02i198510-198808
MAROON,MAROON
main55300-90B03-06i198808-199301
SABLE,SABLE
main55300-90B05-02i198510-198808
W/PASSENGER SIDE DOOR,MAROON,MAROON
main55300-90B05-06i198808-199301
W/PASSENGER SIDE DOOR,SABLE,SABLE
main55300-90B08-06i199001-199301
W/BACK EYE TV,SABLE,SABLE
main55300-90B09-06i199001-199301
W/PASSENGER SIDE DOOR & BACK EYE TV,SABLE,SABLE
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
main55303-90B00i198510-198802
main55303-90B00-02i198802-198808
DARK WINE,MAROON
main55303-90B00-06i198808-199301
SABLE,SABLE
55304ASTAY SUB-ASSY, INSTRUMENT PANEL, CENTER
main55304-90B00i198510-198802
main55304-90B00-02i198802-198808
DARK WINE,MAROON
main55304-90B00-06i198808-199301
SABLE,SABLE
55341BRACE, INSTRUMENT PANEL, NO.1
main55345-90B00i198205-199301
55347ABRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1
main55347-90B00i198205-199301
55354BRACE, INSTRUMENT PANEL TO FLOOR
main55351-90B00i198205-199301
55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
main55404-90B00i198205-199301
main55404-90B02i198408-198510
COLD SPEC
main55404-90B06i199001-199301
W/VENTILATION FAN
main55404-90B07i199001-199301
COLD SPEC; COLD SPEC,W/VENTILATION FAN
55401DPANEL, INSTRUMENT CLUSTER FINISH, UPPER
main55421-90B00i198205-198510
main55421-90B02i198510-198802
main55421-90B02-02i198802-198808
DARK WINE,MAROON
main55421-90B02-06i198808-199301
SABLE,SABLE
55402DPAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1
main55402-90B00i198205-198510
main55402-90B02i198510-198802
main55402-90B02-02i198802-198808
MAROON,MAROON
main55402-90B02-06i198808-199301
SABLE,SABLE
main55402-90B04-06i199001-199301
W/BACK EYE TV,SABLE,SABLE
55403EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.2
main55403-90B00i198205-198510
main55403-90B02i198408-198510
W/PASSENGER SIDE DOOR
main55403-90B03i198510-198802
main55403-90B03-02i198802-198808
MAROON,MAROON
main55403-90B03-06i198808-199301
SABLE,SABLE
main55403-90B05i198510-198802
W/PASSENGER SIDE DOOR
main55403-90B05-02i198802-198808
W/PASSENGER SIDE DOOR,MAROON,MAROON
main55403-90B05-06i198808-199301
W/PASSENGER SIDE DOOR,SABLE,SABLE
55414BEZEL, CIGAR LIGHTER HOLE
main55477-90B00i198205-198510
main55477-90B01i198510-199301
55422ORNAMENT, INSTRUMENT PANEL METER, UPPER
main55471-90B00i198205-198510
main55471-90B01i198510-198802
main55471-90B01-02i198802-198808
MAROON,MAROON
main55471-90B01-06i198808-199301
SABLE,SABLE
55422APANEL, INSTRUMENT CLUSTER FINISH, LOWER
main55422-90B00i198205-198510
main55422-90B02i198510-198610
main55422-90B04-02i198610-198808
DARK WINE,MAROON
main55422-90B04-06i198808-199301
SABLE,SABLE
55446ABASE, SWITCH HOLE, NO.1
main55446-90B00i198205-198408
COLD SPEC
main55618-90B00i198205-199301
W/TIMER*RWD
55447CBASE, SWITCH HOLE, NO.2
main55447-90B00i198205-199301
55448BCOVER, OIL RESERVOIR TANK, RH
main55448-90B00i198205-198510
main55448-90B01i198510-198802
main55448-90B01-02i198802-198808
DARK WINE,MAROON
main55448-90B01-06i198808-199301
SABLE,SABLE
55449COVER, COOLER SWITCH HOLE
main55538-90B00i198205-199301
55449BCOVER, OIL RESERVOIR TANK, LH
main55449-90B00i198205-198510
main55449-90B01i198510-198802
main55449-90B01-02i198802-198808
DARK WINE,MAROON
main55449-90B01-06i198808-199301
SABLE,SABLE
55453COVER, RADIO TUNER OPENING
main55521-90B00i198205-199301
55459DCOVER, INSTRUMENT, LOWER LH
main55459-90B00i198510-198802
main55459-90B00-02i198802-198808
DARK WINE,MAROON
main55459-90B00-06i198808-199301
SABLE,SABLE
55475AGARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2
main55475-90B00i198205-198510
main55475-90B02i198510-198802
main55475-90B02-02i198802-198808
DARK WINE,MAROON
main55475-90B02-06i198808-199301
SABLE,SABLE
55488COVER, STEREO OPENING
main55521-90B00i198205-199301
55503COMPARTMENT SUB-ASSY, GLOVE
main55581-90B00i198205-199301
55510DOOR ASSY, GLOVE COMPARTMENT
main55550-90B00i198205-198510
main55550-90B01i198510-198802
main55550-90B01-02i198802-198808
MAROON,MAROON
main55550-90B01-06i198808-199301
SABLE,SABLE
5552FRONT VENTILATOR
→ Go to FIG 55-52
55524COVER, SWITCH BACE HOLE
main55524-90A00×7i198205-199301
55556ARM, GLOVE COMPARTMENT DOOR CHECK
main55556-90B00i198205-199301
RH
main55573-90B00i198205-199301
LH
55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK
main90541-05080×2i198205-199301
55562SPRING, GLOVE COMPARTMENT DOOR STOP
main90508-20040i198205-199301
LH
main90508-20041i198205-199301
RH
55602STAY SUB-ASSY, STEERING COLUMN, UPPER
main55139-90B00i198205-199301
55619COVER, SWITCH HOLE
main90950-01299i198205-198610
W/O ROOM LAMP CONTROL
main90950-01374i198610-199301
W/O ROOM LAMP CONTROL
55624COVER, THERMOMETER HOLE
main55624-90B00i198205-198510
main55624-90B01i198510-199301
55625ACOVER, FRONT ASH RECEPTACLE
main55625-90B00i198205-198510
main55625-90B01i198510-198802
main55625-90B01-02i198802-198808
DARK WINE,MAROON
main55625-90B01-06i198808-199301
SABLE,SABLE
main55625-90B02i198510-198802
W/*RCM
main55625-90B02-02i198802-198808
W/*RCM,DARKWINE,MAROON
main55625-90B02-06i198808-199301
W/*RCM,SABLE,SABLE
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
main55650-90B00×2i198205-199301
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
main55660-90B00i198205-199301
55682SPRING, INSTRUMENT PANEL REGISTER SUPPORT
main55682-30020i198205-199301
55897KNOB, AIR DAMPER CONTROL LEVER
main55897-30030i198205-199301
55898RETAINER, AIR DAMPER CONTROL LEVER KNOB
main55918-22010i198205-199301
55908NOZZLE SUB-ASSY, DEFROSTER, RH
main55950-90B00i198205-199301
55909NOZZLE SUB-ASSY, DEFROSTER, LH
main55960-90B00i198205-199301
55950NOZZLE ASSY, DEFROSTER
main55990-90B00i198205-198610
main55990-90B01i198610-199301
58819BCOVER, FRONT HEATER
main58819-90B01i198205-198510
main58819-90B02i198510-198802
main58819-90B02-06i198808-199301
SABLE,SABLE
9011906022
main90119-06022
9011906048
main90119-06048
9011906068
main90119-06068
9011906072
main90119-06072
9015950069
main90159-50069
9016450051
main90164-50051
9016455051
main90164-55051
9017906070
main90179-06070
9018304016
main90183-04016
9018304033
main90183-04033
9018305008
main90183-05008
9018305010
main90183-05010
9018305076
main90183-05076
9046305001
main90463-05001
904670704112
main90467-0704112
9046806011
main90468-06011
9048001146
main90480-01146
9165660820
main91656-60820
9166540620
main91665-40620
9324954006
main93249-54006
9356054010
main93560-54010
9356054012
main93560-54012
9356055016
main93560-55016
9356854512
main93568-54512
9356855012
main93568-55012

68 parts on this diagram · 1 diagram in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota COASTER

This section contains 68 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota COASTER. Key components include: REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1, PANEL SUB-ASSY, INSTRUMENT, PANEL SUB-ASSY, INSTRUMENT, LOWER, STAY SUB-ASSY, INSTRUMENT PANEL, CENTER, BRACE, INSTRUMENT PANEL, NO.1.
