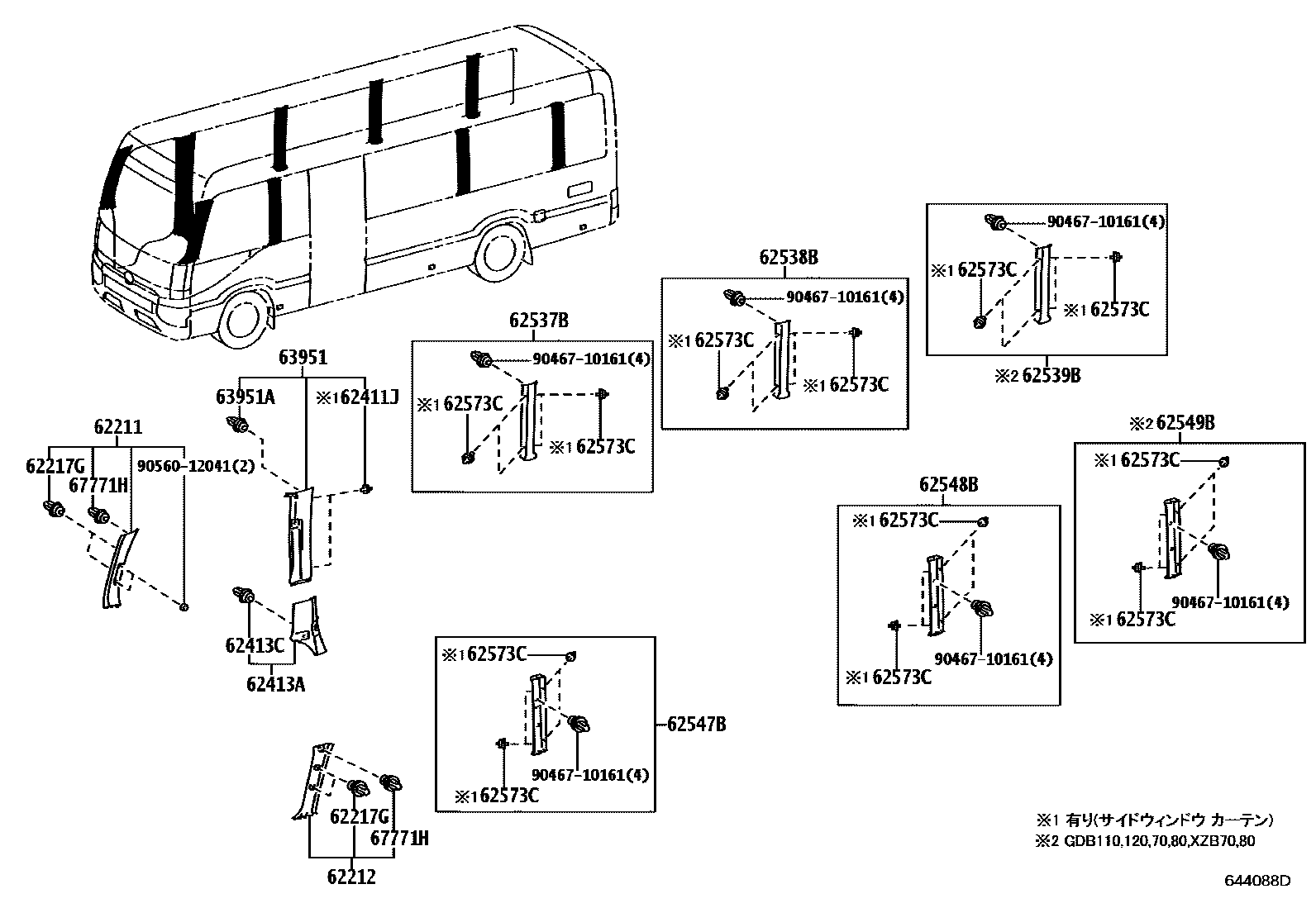

Toyota COASTER — INSIDE TRIM BOARD

0001 1����������� 0002 1������������� 0003 1����������� & ��� RH 0004 1����������� & ��� RH 0005 1����������� & ��� RH 0006 1����������� & ��� RH 0007 1����������� & ��� RH 0008 1����������� & ��� RH 0009 1����������� & ��� RH 0010 1����������� & ��� RH 0011 1����������� & ��� RH 0012 1����������� & ��� LH 0013 1����������� & ��� LH 0014 1����������� & ��� LH 0015 1����������� & ��� LH 0016 1����������� & ��� LH 0017 1����������� & ��� LH 0018 1����������� & ��� LH 0019 1����������� & ��� LH 0020 1����������� & ��� LH 0021 1���������(���������) 0022 1���������(���������������)

62211GARNISH, FRONT PILLAR, RH

main62210-36230-B0iXZB70..PREM201701-202412

LT.GRAY,TRIM1#

main62210-36230-B0iXZB70..PREM202006-202201

LT.GRAY,TRIM1#,2#

main62210-36230-B0iXZB70..PREM202201-202312

LT.GRAY,TRIM2#

62212GARNISH, FRONT PILLAR, LH

main62220-36100-B0iXZB70..PREM202201-202312

LT.GRAY,TRIM2#

main62220-36100-B0iXZB70..PREM202006-202201

LT.GRAY,TRIM1#,2#

main62220-36100-B0iXZB70..PREM201701-202412

LT.GRAY,TRIM1#

62217GCLIP, FRONT PILLAR GARNISH

main90467-10161iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR201701-202412

62411JFASTENER(FOR CENTER PILLAR GARNISH)

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-36060-B0iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S)..6FC..DCR201701-202412

LT.GRAY,TRIM1#

main62413-36060-B0iXZB70..PREM202201-202312

LT.GRAY,TRIM2#

main62413-36060-B0iXZB70..PREM202006-202201

LT.GRAY,TRIM1#,2#

main62413-36070-B0iXZB60..6FC..S201701-202412

LT.GRAY,TRIM1#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR201701-202412

62537BGARNISH, PILLAR NO.3, RH

main62538-36120-B0iXZB60..5F;XZB70..29S,49S;XZB70,80..(13S,24S)..HDCR201701-202412

LT.GRAY,TRIM1#

main62538-36120-B0iXZB70..PREM202006-202201

LT.GRAY,TRIM1#,2#

main62538-36120-B0iXZB70..PREM202201-202312

LT.GRAY,TRIM2#

main62538-36170-B0iGDB60,70..09S201701-202412

LT.GRAY,TRIM1#

62538BGARNISH, PILLAR NO.4, RH

main62538-36120-B0iXZB70..PREM201701-202412

LT.GRAY,TRIM1#

main62538-36120-B0iXZB70..PREM202006-202201

LT.GRAY,TRIM1#,2#

main62538-36120-B0iXZB70..PREM202201-202312

LT.GRAY,TRIM2#

62539BGARNISH, PILLAR NO.5, RH

main62538-36120-B0iXZB70..5F;XZB70..(29S,49S)..6FC;XZB70,80..(13S,24S)..HDCR201701-202412

LT.GRAY,TRIM1#

main62538-36120-B0iXZB70..PREM202006-202201

LT.GRAY,TRIM1#,2#

main62538-36120-B0iXZB70..PREM202201-202312

LT.GRAY,TRIM2#

62547BGARNISH, PILLAR NO.3, LH

main62538-36120-B0iXZB70..S;XZB60..5F..S201701-202412

LT.GRAY,TRIM1#

main62538-36140-B0iXZB70..PREM201701-202412

LT.GRAY,TRIM1#

main62538-36140-B0iXZB60..09S;XZB70..29S;XZB60..25S..5F;XZB70,80..(13S,24S)..HDCR202201-202312

LT.GRAY,TRIM2#

main62538-36140-B0iXZB70..PREM202006-202201

LT.GRAY,TRIM1#,2#

62548BGARNISH, PILLAR NO.4, LH

main62538-36120-B0iXZB70..PREM202201-202312

LT.GRAY,TRIM2#

main62538-36120-B0iXZB60..09S;XZB60,70..5F;XZB70..(29S,49S)..6FC;XZB70,80..(13S,24S)..HDCR201701-202412

LT.GRAY,TRIM1#

main62538-36120-B0iXZB70..PREM202006-202201

LT.GRAY,TRIM1#,2#

62549BGARNISH, PILLAR NO.5, LH

main62538-36120-B0iXZB70..PREM202006-202201

LT.GRAY,TRIM1#,2#

main62538-36120-B0iXZB70,80..(09S,13S,24S)..6FC..DCR201701-202412

LT.GRAY,TRIM1#

main62538-36120-B0iXZB70..PREM202201-202312

LT.GRAY,TRIM2#

62573CFASTENER(FOR CENTER PILLAR GARNISH)

63951COVER, COOLER PIPE

main63951-36230-B0iXZB60..5F;XZB60..09S;XZB70..29S,49S;XZB70,80..(13S,24S)..HDCR201701-202412

LT.GRAY,TRIM1#

main63951-36230-B0iXZB70..PREM202006-202201

LT.GRAY,TRIM1#,2#

main63951-36230-B0iXZB70..PREM202201-202312

LT.GRAY,TRIM2#

63951ACLIP(FOR COOLER PIPE COVER) NO.1

main90467-10161iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

67771HRETAINER, DOOR TRIM

main90467-10188iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

9046710161

main90467-10161

9056012041

main90560-12041

18 parts on this diagram · 22 diagrams in section
