EPC Data

Toyota COASTER — HORN

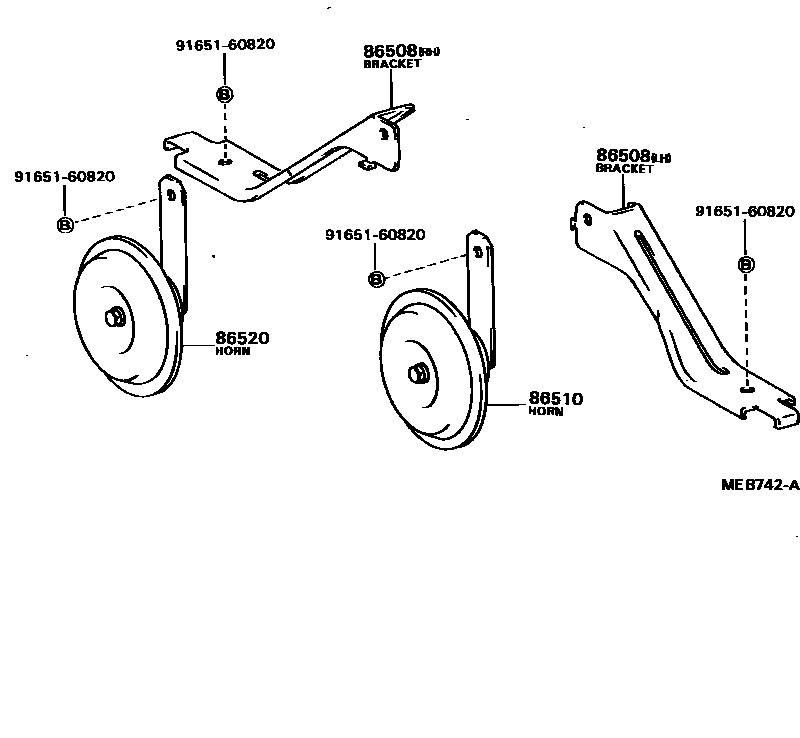

Parts diagram
86508BRACKET SUB-ASSY, HORN
main86591-90B00i198205-199301
RH
main86592-90B00i198205-199301
LH
86510HORN ASSY, HIGH PITCHED
main86510-12420i198510-199301
main86510-60080i198205-198510
MARUKO
main86510-60110i198205-198510
main86510-90A00i198205-198510
DENSO
main86510-90K08i198510-199301
86520HORN ASSY, LOW PITCHED
main86520-12610i198510-199301
main86520-16080i198205-198510
MARUKO
main86520-60100i198205-198510
main86520-90A00i198205-198510
DENSO
main86520-90K07i198510-199301
9165160820
main91651-60820

4 parts on this diagram · 1 diagram in section

HORN for Toyota COASTER

This section contains 4 genuine Toyota parts for the HORN system of the Toyota COASTER. Key components include: BRACKET SUB-ASSY, HORN, HORN ASSY, HIGH PITCHED, HORN ASSY, LOW PITCHED.
