Toyota COASTER — HEIGHT CONTROL (AUTO-LEVELER)

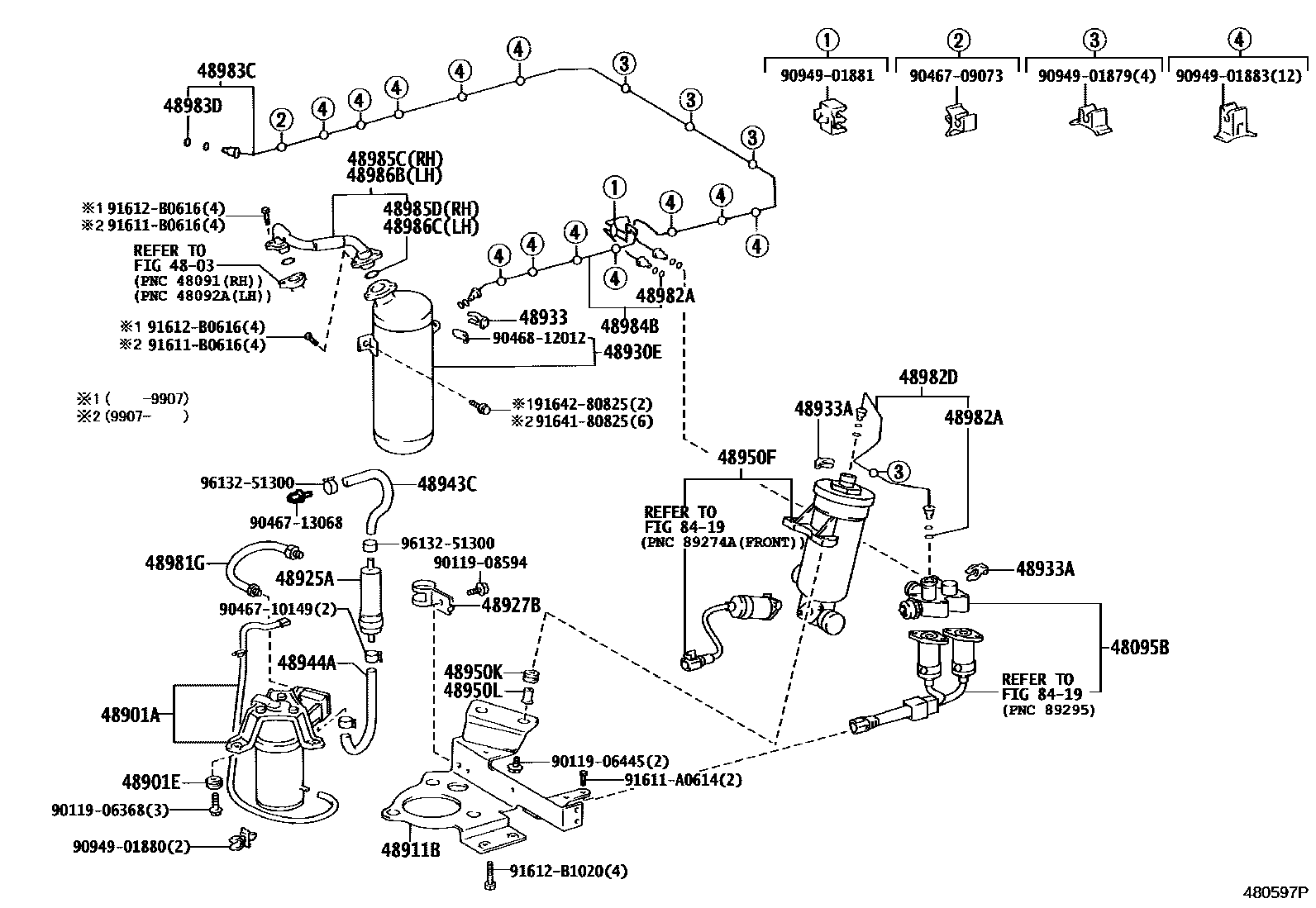

Parts diagram
4803FRONT SPRING & SHOCK ABSORBER
→ Go to FIG 48-03
48095BVALVE SUB-ASSY, FRONT HEIGHT CONTROL, NO.1
main48095-36020i199301-199907
48901ACOMPRESSOR SUB-ASSY, FRONT HEIGHT CONTROL
main48901-36030i199301-199907
main48901-36031i199907-200408
main48901-36050i200601-200708
48901EBUSH(FOR FRONT HEIGHT CONTROL COMPRESSOR)
main90389-06022×3i199301-199907
48911BBRACKET, FRONT HEIGHT CONTROL COMPRESSOR
main48911-36030i199301-199907
main48911-36040i201501
48925AFILTER, FRONT HEIGHT CONTROL
main48925-36010i199301-199907
48927BBRACKET, FRONT HEIGHT CONTROL AIR CLEANER, NO.1
main48927-36010i199301-199907
48930ETANK ASSY, PNEUMATIC
main48930-36020i200408-200908
main48930-36030i201501
48933HOLDER, AIR CONNECTOR CLIP
main48933-30010×4i199301-199907
48933AHOLDER, FRONT HEIGHT CONTROL AIR CONNECTOR CLIP
main48933-30010×2i199301-199907
48943CHOSE, FRONT HEIGHT CONTROL, NO.1
main48943-36010i199301-199907
main48943-36050i200601-200908
48944AHOSE, FRONT HEIGHT CONTROL, NO.2
main48943-36020i200408-200908
48950FDRYER ASSY, FRONT HEIGHT CONTROL
main48950-36030i199301-199907
48950KBUSH(FOR FRONT HEIGHT CONTROL DRYER)
main90385-08009×2i199301-199907
48950LSPACER(FOR FRONT HEIGHT CONTROL DRYER)
main90560-06026×2i199301-199907
48981GTUBE, HEIGHT CONTROL, FRONT NO.1
main48981-36030i199301-199907
48982ARING, O(FOR HEIGHT CONTROL TUBE NO.2)
main90301-04004×4i199301-199907
48982DTUBE, HEIGHT CONTROL, FRONT NO.2
main48982-36030i199301-199907
48983CTUBE, HEIGHT CONTROL, FRONT NO.3
main48983-36030i199301-199907
48983DRING, O(FOR FRONT HEIGHT CONTROL TUBE NO.3)
main90301-04004×4i199301-199907
48984BTUBE, HEIGHT CONTROL, FRONT NO.4
main48984-36030i199301-199907
48985CTUBE, HEIGHT CONTROL, FRONT NO.5
main48947-36010i199301-199907
48985DRING, O(FOR FRONT HEIGHT CONTROL TUBE NO.5)
main90301-25006×2i199301-199907
48986BTUBE, HEIGHT CONTROL, FRONT NO.6
main48947-36020i199301-199907
48986CRING, O(FOR FRONT HEIGHT CONTROL TUBE NO.6)
main90301-25006×2i199301-199907
8419ELECTRONIC MODULATED SUSPENSION
→ Go to FIG 84-19
9011906368
main90119-06368
9011906445
main90119-06445
9011908594
main90119-08594
9046709073
main90467-09073
9046710149
main90467-10149
9046713068
main90467-13068
9046812012
main90468-12012
9094901879
main90949-01879
9094901880
main90949-01880
9094901881
main90949-01881
9094901883
main90949-01883
91611A0614
main91611-A0614
91611B0616
main91611-B0616
91612B0616
main91612-B0616
91612B1020
main91612-B1020
9164180825
main91641-80825
9164280825
main91642-80825
9613251300
main96132-51300

44 parts on this diagram · 3 diagrams in section

HEIGHT CONTROL (AUTO-LEVELER) for Toyota COASTER

This section contains 106 genuine Toyota parts for the HEIGHT CONTROL (AUTO-LEVELER) system of the Toyota COASTER. Key components include: CONNECTOR, TUBE, FRONT SPRING & SHOCK ABSORBER, REAR SPRING & SHOCK ABSORBER, VALVE SUB-ASSY, REAR HEIGHT CONTROL, NO.1, VALVE SUB-ASSY, FRONT HEIGHT CONTROL, NO.1.
