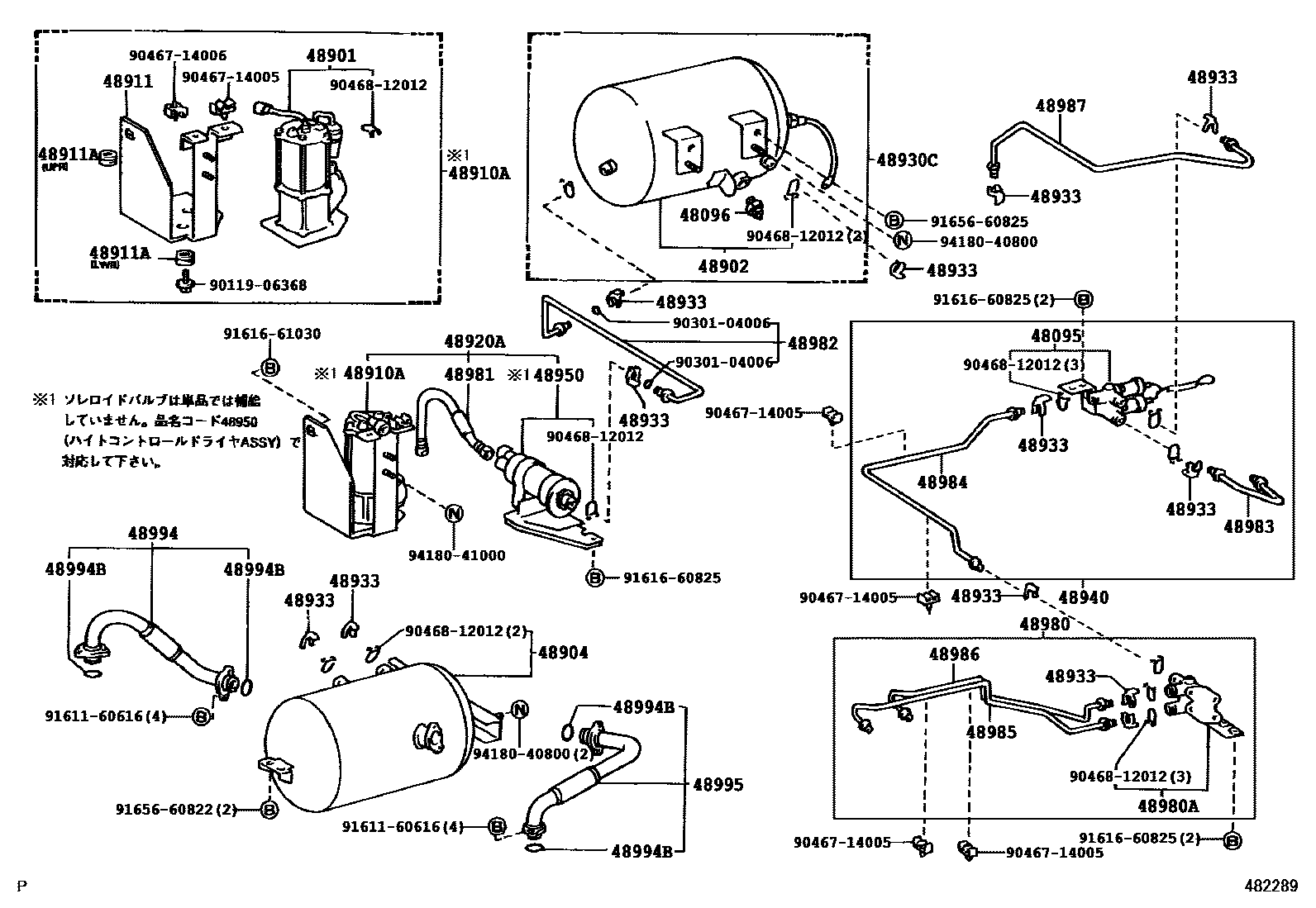

Toyota COASTER — HEIGHT CONTROL (AUTO-LEVELER)
48095VALVE SUB-ASSY, HEIGHT CONTROL, NO.1
48096VALVE SUB-ASSY, HEIGHT CONTROL, NO.2
48901COMPRESSOR SUB-ASSY, HEIGHT CONTROL
48902RESERVOIR SUB-ASSY, HEIGHT CONTROL
48904TANK SUB-ASSY, PNEUMATIC, REAR
48910APUMP & MOTOR ASSY, HEIGHT CONTROL
48911BRACKET, HEIGHT CONTROL COMPRESSOR
48911ABUSH (FOR HEIGHT CONTROL BRACKET)
LWR
48920ACOMPRESSOR & DRYER ASSY, W/O RELAY
48930CRESERVOIR ASSY, HEIGHT CONTROL
48933HOLDER, AIR CONNECTOR CLIP
48940VALVE ASSY, HEIGHT CONTROL, NO.1
48950DRYER ASSY, HEIGHT CONTROL
48980TUBE ASSY, HEIGHT CONTROL
48980AWAY, 3(FOR HEIGHT CONTROL TUBE)
48981TUBE, HEIGHT CONTROL, NO.1
48982TUBE, HEIGHT CONTROL, NO.2
48983TUBE, HEIGHT CONTROL, NO.3
48984TUBE, HEIGHT CONTROL, NO.4
48985TUBE, HEIGHT CONTROL, NO.5
48986TUBE, HEIGHT CONTROL, NO.6
48987TUBE, HEIGHT CONTROL, NO.7
48994TUBE, HEIGHT CONTROL, REAR NO.1
48994BRING, O(FOR REAR HEIGHT CONTROL TUBE)
48995TUBE, HEIGHT CONTROL, REAR NO.2
9011906368
main90119-06368
9030104006
main90301-04006
9046714005
main90467-14005
9046714006
main90467-14006
9046812012
main90468-12012
9161160616
main91611-60616
9161660825
main91616-60825
9161661030
main91616-61030
9165660822
main91656-60822
9165660825
main91656-60825
9418040800
main94180-40800
9418041000
main94180-41000
37 parts on this diagram · 1 diagram in section
HEIGHT CONTROL (AUTO-LEVELER) for Toyota COASTER
This section contains 37 genuine Toyota parts for the HEIGHT CONTROL (AUTO-LEVELER) system of the Toyota COASTER. Key components include: VALVE SUB-ASSY, HEIGHT CONTROL, NO.1, VALVE SUB-ASSY, HEIGHT CONTROL, NO.2, COMPRESSOR SUB-ASSY, HEIGHT CONTROL, RESERVOIR SUB-ASSY, HEIGHT CONTROL, TANK SUB-ASSY, PNEUMATIC, REAR.
