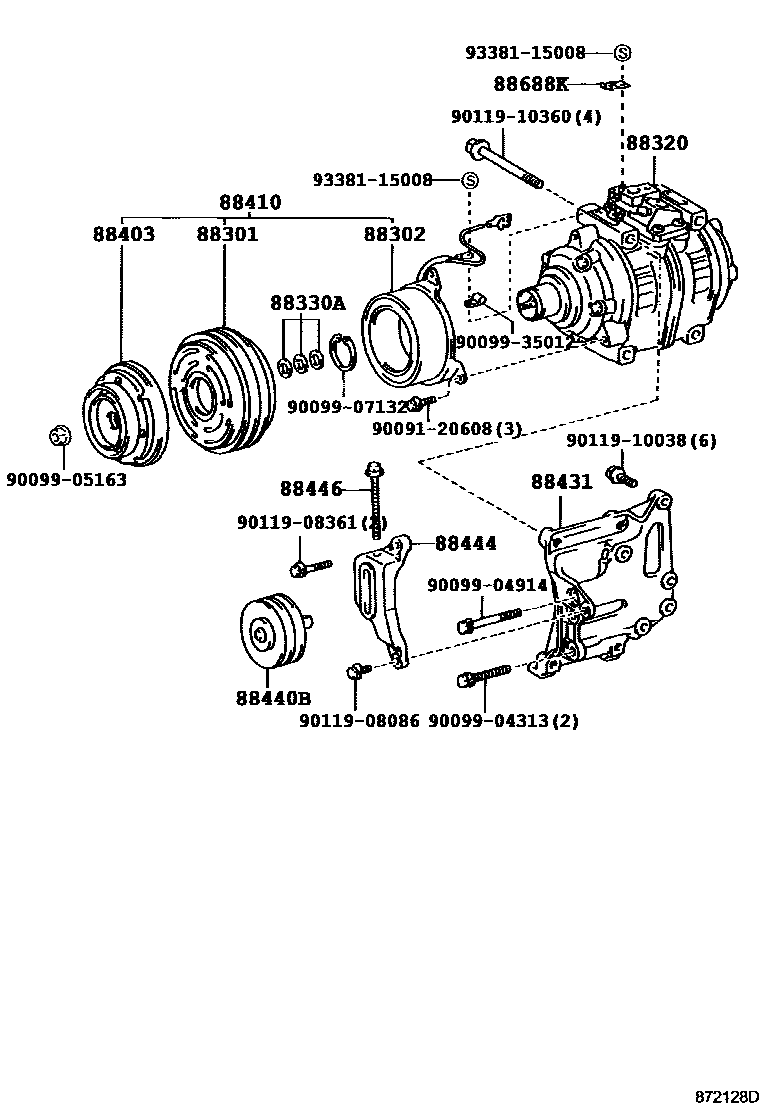

Toyota COASTER — HEATING & AIR CONDITIONING - COMPRESSOR
88301ROTOR SUB-ASSY, MAGNET CLUTCH
88302STATOR SUB-ASSY, MAGNET CLUTCH
88320COMPRESSOR ASSY, COOLER
88330AWASHER (FOR MAGNET CLUTCH)
main88335-12050iXZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..WC..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU200408-201501
88403HUB SUB-ASSY, MAGNET CLUTCH
88410CLUTCH ASSY, MAGNET
88431BRACKET, COMPRESSOR MOUNTING, NO.1
88440BPULLEY ASSY, IDLE
88444BRACKET, IDLE PULLEY
88446BOLT, IDLE PULLEY
88688KBRACKET, COOLER COMPRESSOR
9009120608
main90091-20608
9009904313
main90099-04313
9009904914
main90099-04914
9009905163
main90099-05163
9009907132
main90099-07132
9009935012
main90099-35012
9011908086
main90119-08086
9011908361
main90119-08361
9011910038
main90119-10038
9011910360
main90119-10360
9338115008
main93381-15008
22 parts on this diagram · 8 diagrams in section
HEATING & AIR CONDITIONING - COMPRESSOR for Toyota COASTER
This section contains 47 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota COASTER. Key components include: BRACKET SET,COMPRESSOR MOUNTING, ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH).
