Toyota COASTER — HEATING & AIR CONDITIONING - COMPRESSOR

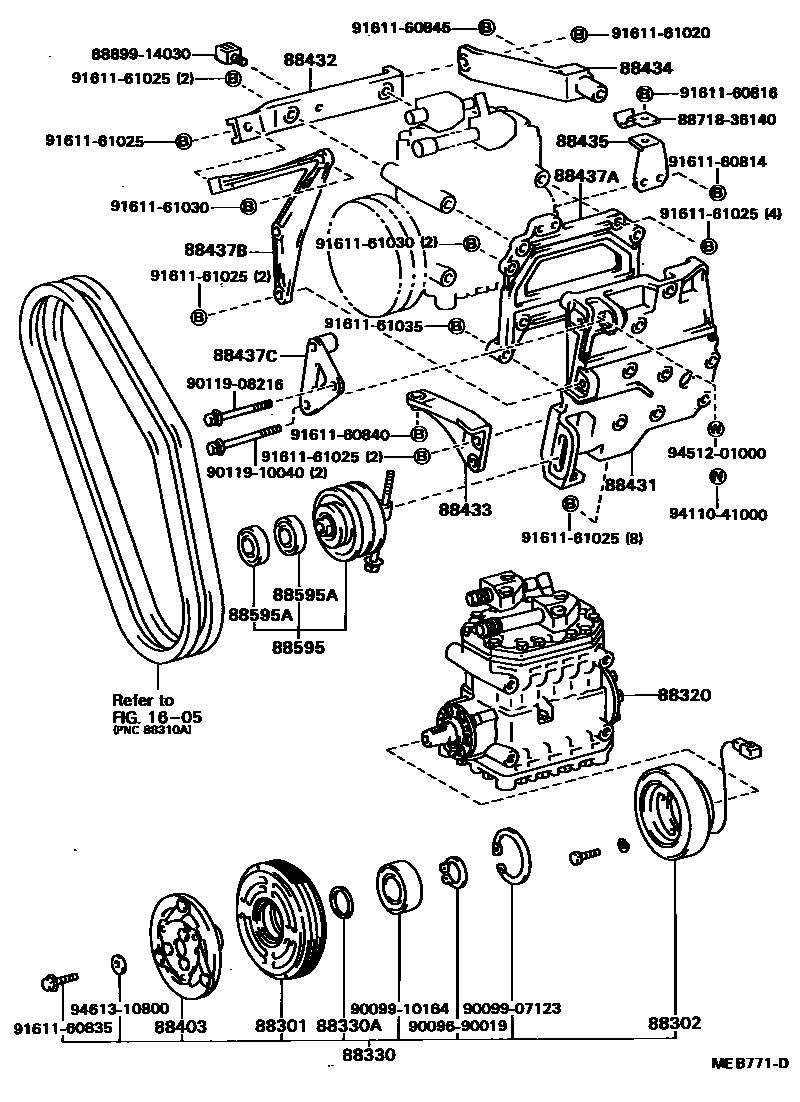

Parts diagram

1605V-BELT

→ Go to FIG 16-05

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-36010i198205-198408

main88412-36030i198808-199301

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-36100i198205-198408

main88411-36110i198205-198408

main88411-36120i198408-198808

main88411-36130i198408-198808

main88411-36210i198808-199301

main88411-36220i198808-199301

88320COMPRESSOR ASSY, COOLER

main88320-36040i198205-198408

main88320-36050i198205-198408

main88320-36170i198408-198706

main88320-36171i198706-198808

main88320-36180i198408-198706

main88320-36181i198706-198808

main88320-36250i198808-199301

main88320-36260i198808-199301

main88320-36310i199001-199301

main88320-36320i199001-199301

88330CLUTCH ASSY, MAGNET

main88410-36140i198205-198408

main88410-36150i198205-198408

main88410-36180i198408-198808

main88410-36190i198408-198808

main88410-36290i198808-199301

main88410-36300i198808-199301

main88410-36320i199001-199301

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050i198808-199301

main90099-01181i198205-198408

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-36010i198408-198808

main88403-36020i198205-198408

main88403-36040i198808-199301

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-36150i198205-198408

main88431-36160i198205-198408

main88431-36170i198205-198408

main88431-36210i198408-198808

main88431-36220i198408-198808

main88431-36230i198408-198808

main88431-36420i198808-198909

main88431-36421i198909-199301

main88431-36430i198808-199001

main88431-36440i198808-199301

main88431-36510i199001-199301

88432BRACKET, COMPRESSOR MOUNTING, NO.2

main88434-36100i198205-198408

88433BRACKET, COMPRESSOR MOUNTING, NO.3

main88434-36120i198205-198408

88434BRACKET, COMPRESSOR MOUNTING, NO.4

main88434-36130i198205-198408

88435BRACKET, COMPRESSOR MOUNTING, NO.5

main88688-36090i198205-198408

88437AATTACHMENT, COMPRESSOR

main88437-36050i198205-198408

main88437-36060i198205-198408

main88437-36070i198205-198408

main88437-36100i198408-199301

88437BATTACHMENT, COMPRESSOR, NO.1

main88437-36080i198205-198408

88437CATTACHMENT, COMPRESSOR, NO.2

main88437-36090i198205-198408

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-36090i198205-199111

main88440-36130i199111-199301

88595ABEARING (FOR COOLER IDLE PULLEY)

main90099-10129×2i198205-199111

8871836140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-36140

8889914030COVER, EVAPORATOR

main88899-14030

9009690019

main90096-90019

9009907123

main90099-07123

9009910164

main90099-10164

9011908216

main90119-08216

9011910040

main90119-10040

9161160814

main91611-60814

9161160816

main91611-60816

9161160835

main91611-60835

9161160840

main91611-60840

9161160845

main91611-60845

9161161020

main91611-61020

9161161025

main91611-61025

9161161030

main91611-61030

9161161035

main91611-61035

9411041000

main94110-41000

9451201000

main94512-01000

9461310800

main94613-10800

36 parts on this diagram · 7 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota COASTER

This section contains 68 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota COASTER. Key components include: RADIATOR & WATER OUTLET, V-BELT, ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, COMPRESSOR ASSY, COOLER.
