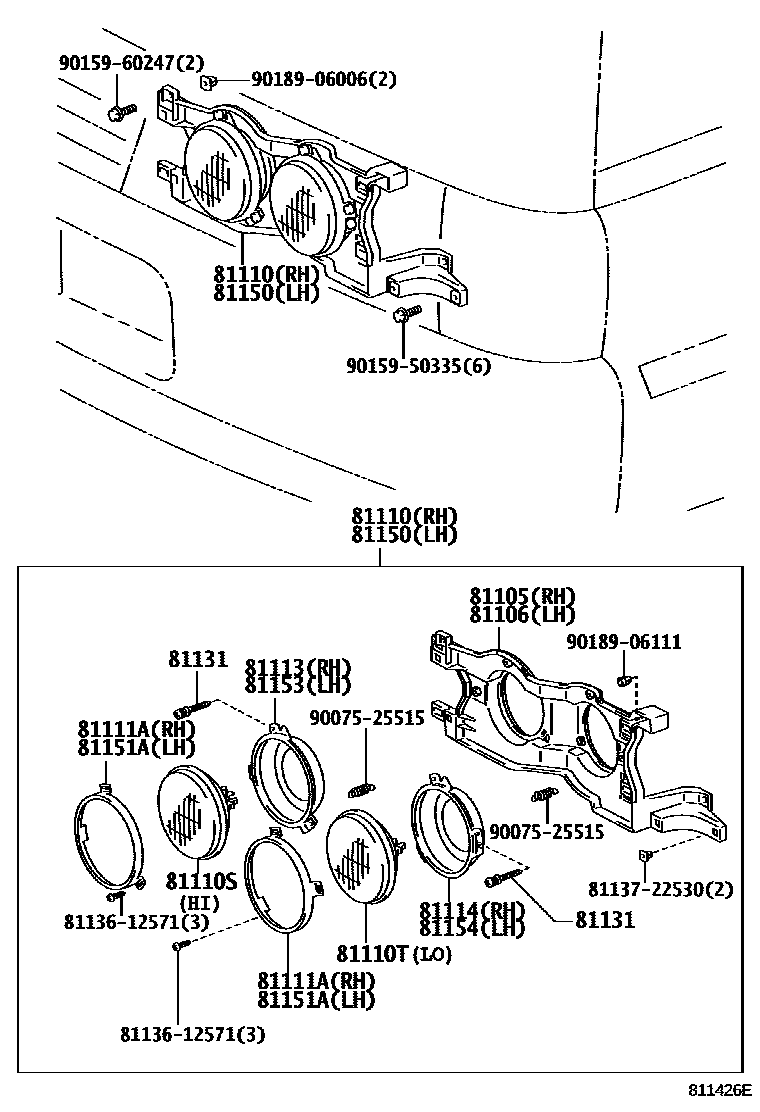

Toyota COASTER — HEADLAMP
81105HOUSING SUB-ASSY, HEADLAMP, RH
81106HOUSING SUB-ASSY, HEADLAMP, LH
81110HEADLAMP ASSY, RH
81110SSEALED BEAM UNIT, NO.1
81110TSEALED BEAM UNIT, NO.2
81111ARING, SEALED BEAM RETAINING, NO.1 RH
81113RING, SEALED BEAM MOUNTING, NO.1 RH
81114RING, SEALED BEAM MOUNTING, NO.2 RH
81131SCREW, HEADLAMP ADJUSTING
81150HEADLAMP ASSY, LH
81151ARING, SEALED BEAM RETAINING, NO.1 LH
81153RING, SEALED BEAM MOUNTING, NO.1 LH
81154RING, SEALED BEAM MOUNTING, NO.2 LH
8113612571PROTECTOR, HEADLAMP, NO.1 RH
main81136-12571
8113722530PROTECTOR, HEADLAMP, NO.2 RH
main81137-22530
9007525515
main90075-25515
9015950335
main90159-50335
9015960247
main90159-60247
9018906006
main90189-06006
9018906111
main90189-06111
20 parts on this diagram · 5 diagrams in section
HEADLAMP for Toyota COASTER
This section contains 48 genuine Toyota parts for the HEADLAMP system of the Toyota COASTER. Key components include: HOUSING SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1).
