Toyota COASTER — HEADLAMP

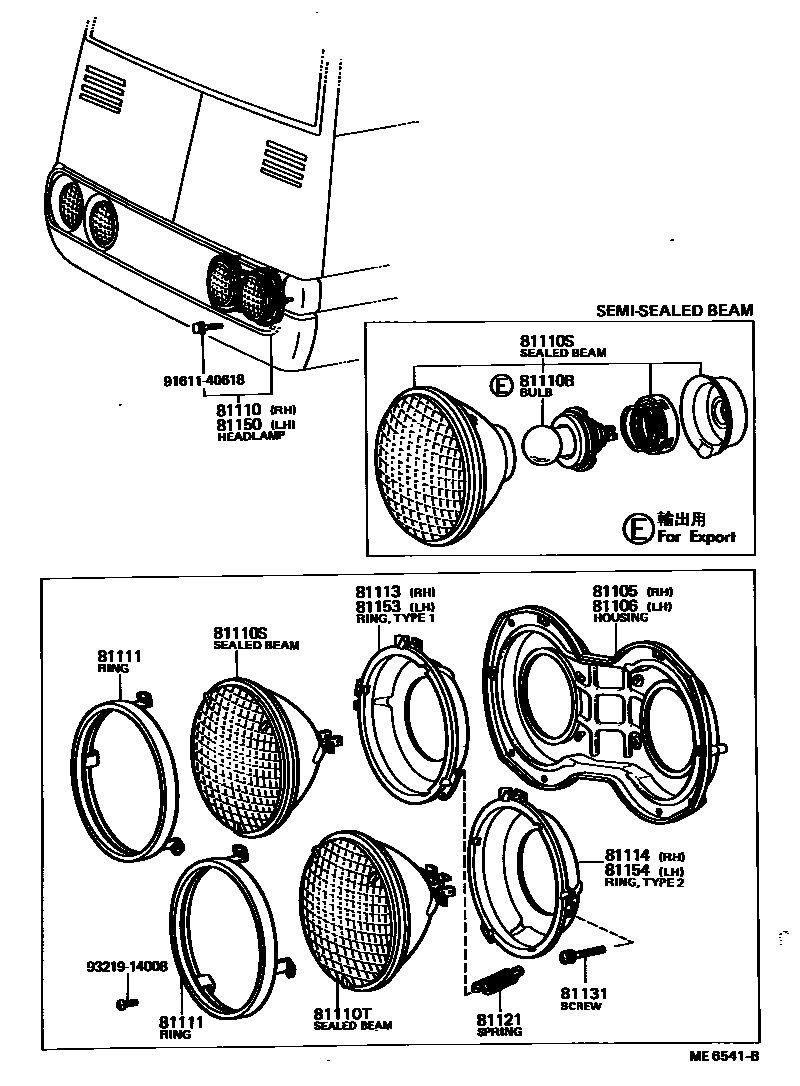

Parts diagram
81105HOUSING SUB-ASSY, HEADLAMP, RH
main81105-26010i197708-198204
KOITO
main81105-36090i197708-198204
IKI
81106HOUSING SUB-ASSY, HEADLAMP, LH
main81106-26010i197708-198204
KOITO
main81106-36070i197708-198204
IKI
81110HEADLAMP ASSY, RH
main81110-29015i197708-198204
12V
main81110-39135i197708-198204
24V
81110BBULB(FOR HEADLAMP, NO.1)
81110SSEALED BEAM UNIT, NO.1
main90981-02011×2i197708-198204
main90981-02027×2i197708-198204
12V 37.5W,TOSHIBA
main90981-08007×2i197708-198204
main90981-08014×2i197708-198204
24V 40W,TOSHIBA
81110TSEALED BEAM UNIT, NO.2
main90981-02012×2i197708-198204
main90981-02028×2i197708-198204
12V 37.5/50W,TOSHIBA
main90981-08008×2i197708-198204
main90981-08015×2i197708-198204
24V 40/60W,TOSHIBA
81111RING, SEALED BEAM RETAINING
main81111-20110×4i197708-198204
IKI
main81111-20280×4i197708-198204
KOITO
81113RING, SEALED BEAM MOUNTING, NO.1 RH
main81113-36090i197708-198204
IKI
main81153-30150i197708-198204
KOITO
81114RING, SEALED BEAM MOUNTING, NO.2 RH
main81114-30170i197708-198204
KOITO
main81114-36090i197708-198204
IKI
81121SPRING, HEADLAMP TENSION
main90506-16019×4i197708-198204
KOITO
main90506-18018×4i197708-198204
IKI
81131SCREW, HEADLAMP ADJUSTING
main81131-20043×8i197708-198204
KOITO
main81131-20052×8i197708-198204
IKI
81150HEADLAMP ASSY, LH
main81150-29015i197708-198204
12V
main81150-39135i197708-198204
24V
81153RING, SEALED BEAM MOUNTING, NO.1 LH
main81113-30170i197708-198204
KOITO
main81153-36070i197708-198204
IKI
81154RING, SEALED BEAM MOUNTING, NO.2 LH
main81154-30150i197708-198204
KOITO
main81154-36070i197708-198204
IKI
9161140618
main91611-40618
9321914008
main93219-14008

16 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota COASTER

This section contains 16 genuine Toyota parts for the HEADLAMP system of the Toyota COASTER. Key components include: HOUSING SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), SEALED BEAM UNIT, NO.1.
