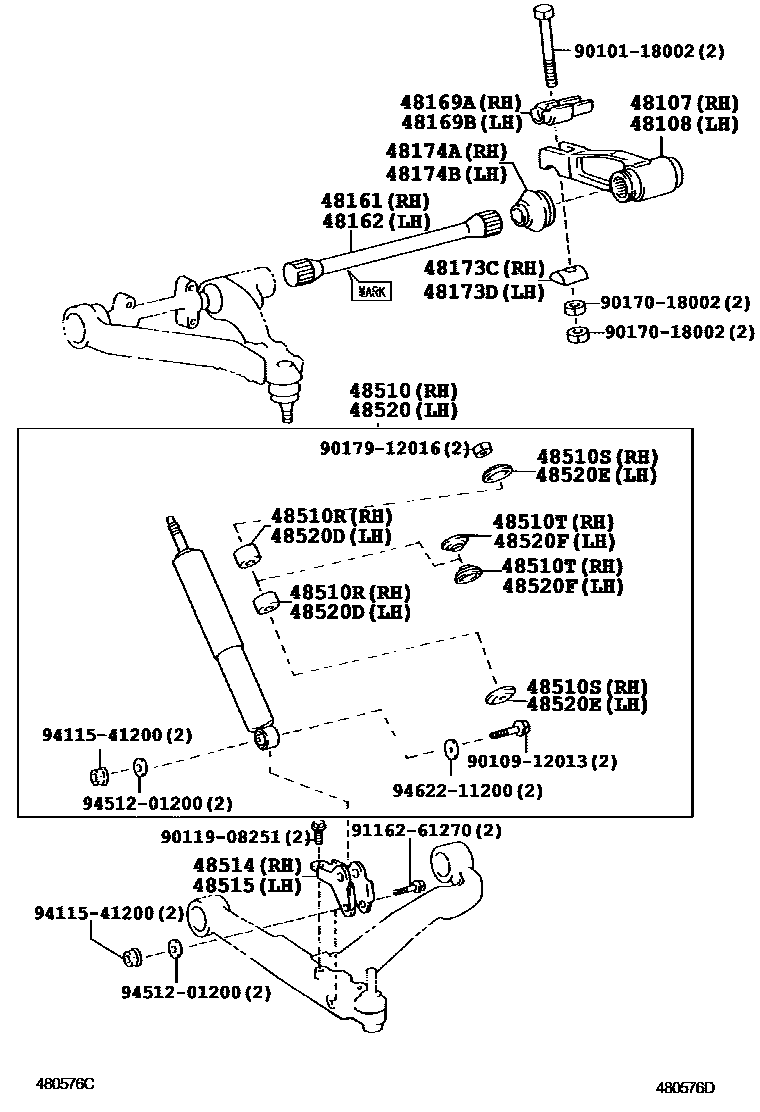

Toyota COASTER — FRONT SPRING & SHOCK ABSORBER
48107ARM SUB-ASSY, ANCHOR, RH
48108ARM SUB-ASSY, ANCHOR, LH
48161SPRING, TORSION BAR, RH
MARK 48161-36070 OR 36070R G
MARK 48161-36080
MARK 48161-36090 OR 36090R H
MARK 48161-36120 OR 36120R K
MARK 48161-36150
48162SPRING, TORSION BAR, LH
MARK 48162-36070 OR 36070L G
MARK 48162-36080
MARK 48162-36090 OR 36090L H
MARK 48162-36120 OR 36120L K
MARK 48162-36150
48169ASWIVEL, ANCHOR ARM, RH
48169BSWIVEL, ANCHOR ARM, LH
48173CSEAT, ANCHOR ARM ADJUSTER, RH
48173DSEAT, ANCHOR ARM ADJUSTER, LH
48174COVER, TORSION BAR DUST
48174ACOVER, TORSION BAR DUST, RH
48174BCOVER, TORSION BAR DUST, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
48510RCUSHION, FRONT SHOCK ABSORBER, NO.1 RH
main90948-01004iXZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU199301-201501
48510SRETAINER, FRONT SHOCK ABSORBER CUSHION, NO.1 RH
48510TRETAINER, FRONT SHOCK ABSORBER CUSHION, NO.2 RH
48514BRACKET, FRONT SHOCK ABSORBER, LOWER RH
48515BRACKET, FRONT SHOCK ABSORBER, LOWER LH
48520ABSORBER ASSY, SHOCK, FRONT LH
48520DCUSHION, FRONT SHOCK ABSORBER, NO.1 LH
48520ERETAINER, FRONT SHOCK ABSORBER CUSHION, NO.1 LH
48520FRETAINER, FRONT SHOCK ABSORBER CUSHION, NO.2 LH
9010118002
main90101-18002
9010912013
main90109-12013
9011908251
main90119-08251
9017018002
main90170-18002
9017912016
main90179-12016
9116261270
main91162-61270
9411541200
main94115-41200
9451201200
main94512-01200
9462211200
main94622-11200
31 parts on this diagram · 5 diagrams in section
FRONT SPRING & SHOCK ABSORBER for Toyota COASTER
This section contains 69 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota COASTER. Key components include: FRONT AXLE ARM & STEERING KNUCKLE, HEIGHT CONTROL (AUTO-LEVELER), SLEEVE SUB-ASSY, FRONT SUSPENSION, RH, GROMMET(FOR FRONT SUSPENSION SLEEVE RH), SLEEVE SUB-ASSY, FRONT SUSPENSION, LH.
