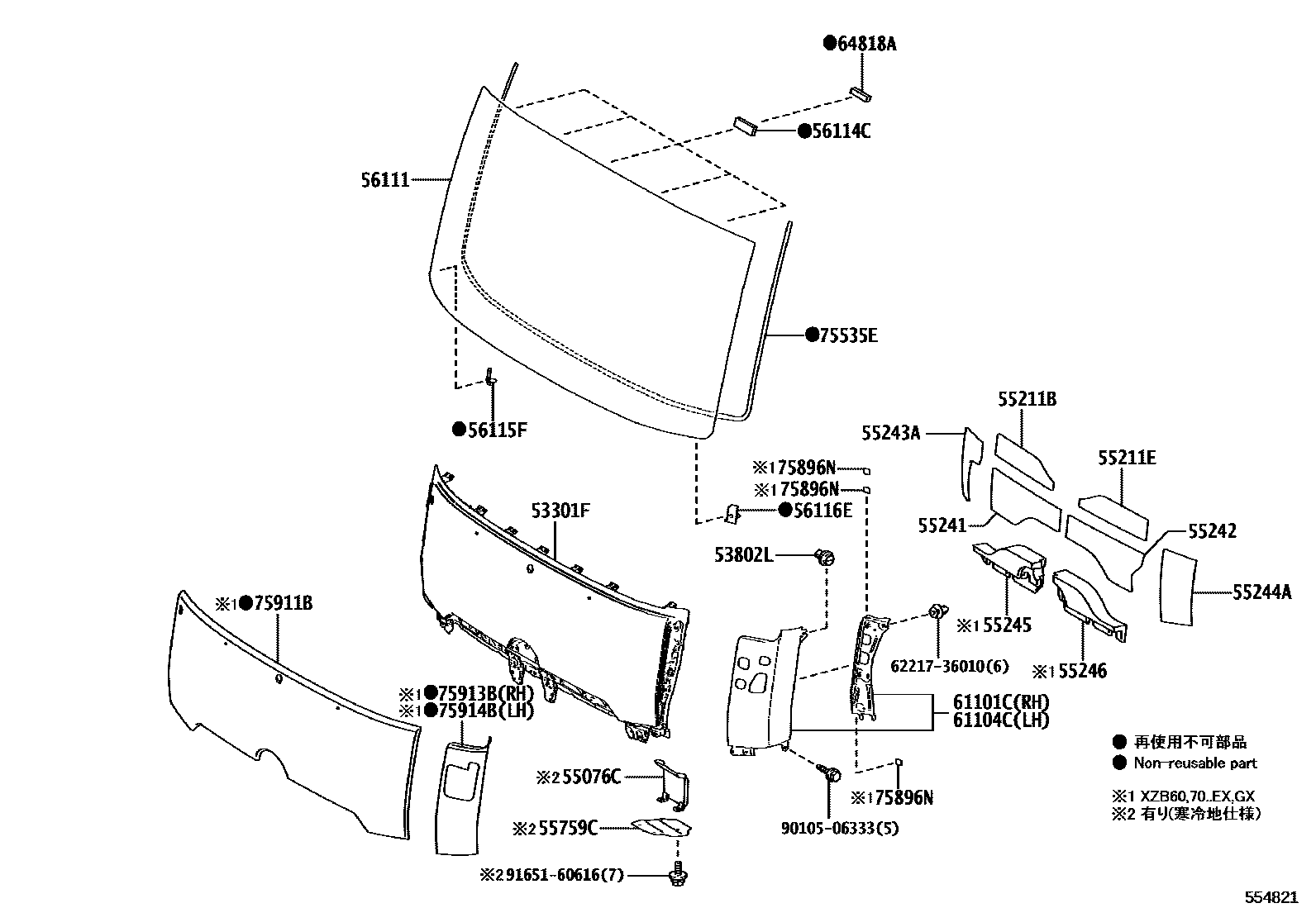

Toyota COASTER — FRONT PANEL & WINDSHIELD GLASS

0001 1 0002 1

53301FPANEL SUB-ASSY, FRONT

main53301-36260iXZB60,70201701-201802

main53301-36261iXZB60,70201803-201807

main53301-36290iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201807-202201

53802LEXTENSION, FRONT FENDER, LH

main53813-47040iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701

55076CNET SUB-ASSY, AIR DUCT

main55076-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

55211BSILENCER, FRONT PANEL

main55211-36010iGDB60,70,80202201-202412

55211ESILENCER, FRONT PANEL

main55212-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

55241SILENCER, FRONT PANEL SIDE, NO.1 RH

main55241-36040iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

55242SILENCER, FRONT PANEL SIDE, NO.1 LH

main55242-36050iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

55243ASILENCER, FRONT PANEL SIDE, NO.2 RH

main55243-36040iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

55244ASILENCER, FRONT PANEL SIDE, NO.2 LH

main55244-36040iGDB60,70,80202201-202412

55245SILENCER, FRONT PANEL SIDE, NO.3 RH

main55245-36010iXZB70,80..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

55246SILENCER, FRONT PANEL SIDE, NO.3 LH

main55246-36030iXZB70,80..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

55759CCOVER, HEATER AIR DUCT

main55759-36030iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

56111GLASS, WINDSHIELD

main56100-36010iXZB60..09S;XZB60..5F..(LX,S);XZB70..(29S,49S)..(LX,S)202201-202312

main56100-36020iGDB60,70..GX202201-202412

main56111-36130iXZB60,70..LX,S201701-201803

main56111-36131iXZB60,70..LX,S201804-201807

main56111-36140iXZB60,70..EX,GX201701-201803

main56111-36141iXZB60,70..EX,GX201804-201807

main56111-36190iXZB60,70..S201807-202101

56114CRETAINER, WINDSHIELD GLASS

main56114-36010×5iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

56115FSTOPPER, WINDSHIELD GLASS

main56115-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

56116ESTOPPER, WINDSHIELD GLASS, NO.2

main56116-36010iXZB60,70201701-201803

main56116-36020iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201804

61101CPANEL SUB-ASSY, COWL SIDE, RH

main61101-36050iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

61104CPANEL SUB-ASSY, COWL SIDE, LH

main61104-36460iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

64818ASPACER, BACK WINDOW GLASS

main64819-36010×5iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

75535EMOULDING, WINDSHIELD, OUTSIDE LOWER

main75535-36010iXZB60,70201701-201807

main75535-36030iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201807-202201

75896NTAPE, MOULDING, NO.1

main75896-36010×6iXZB60..5F..GX;XZB70,80..HDCR;XZB70..29S..GX..DCR202201-202312

75911BTAPE, BLACK OUT HOOD

main75911-36010iXZB70,80..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

75913BTAPE, BLACK OUT FENDER, RH

main75913-36010iXZB60,70..EX,GX201701-201806

main75913-36011iXZB70,80..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201807-202201

75914BTAPE, BLACK OUT FENDER, LH

main75914-36010iXZB60,70..EX,GX201701-201806

main75914-36011iXZB70,80..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201807-202201

6221736010COVER, RAIL ROOF SIDE, INNER CENTER

main62217-36010

9010506333

main90105-06333

9165160616

main91651-60616

27 parts on this diagram · 2 diagrams in section
