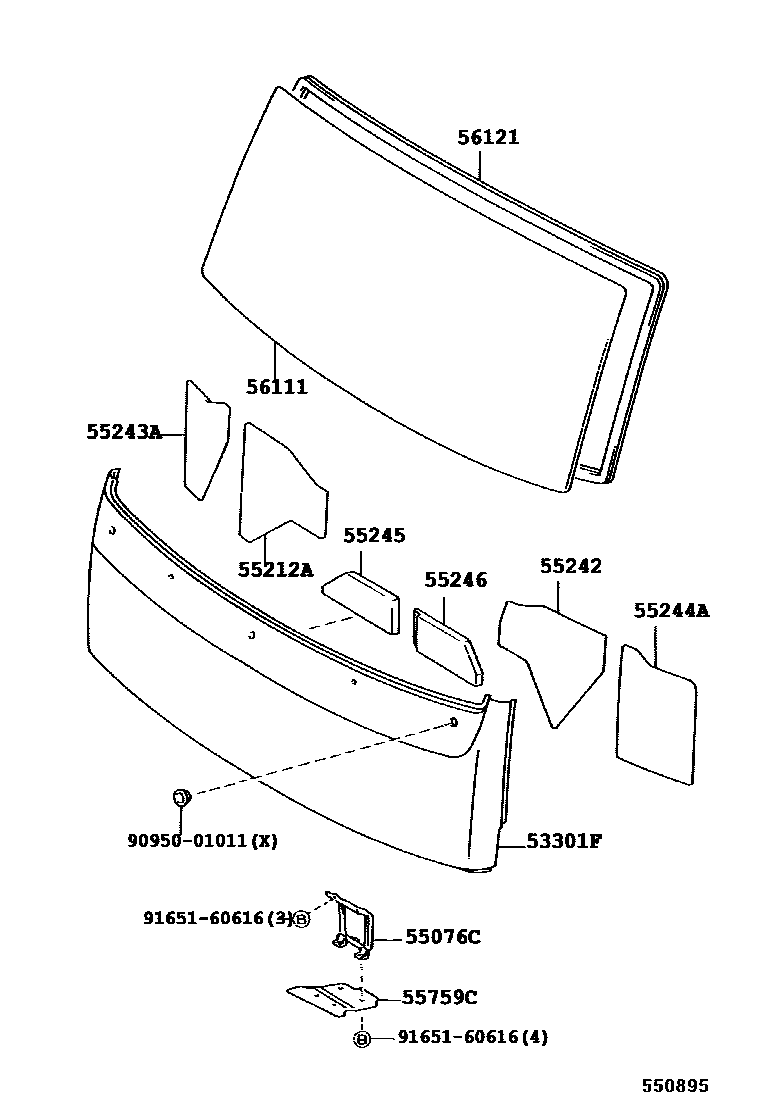

Toyota COASTER — FRONT PANEL & WINDSHIELD GLASS

53301FPANEL SUB-ASSY, FRONT

main53301-36040iXZB51..SULNG200408-200512

sub55342-36050

main53301-36041iBZB40,50,XZB4#,5#200706-200708

main53301-36050iHDB51,HZB41..CBU,IV5199301-199907

sub55342-36050

main53301-36051iXZB51200706-200708

main53301-36140iXZB46,56..09S200408-200706

sub55342-36050

main53301-36141iXZB46,56..09S200706-200708

main53301-36170iXZB46,50,56..WC;XZB40..6FC..IV5;XZB40,51..(26S,29S,39S)..CBU200708-201212

main53301-36171iXZB4#,5#201212-201501

main53301-36190iXZB46,56200708-201212

main53301-36191iXZB46,56201501

main53301-36210iBZB40,50..LX200708-201212

main53301-36211iBZB40,50201212-201501

55076CNET SUB-ASSY, AIR DUCT

main55076-36010iBB58,HZB40,46..08S,19S,29S199907-200408

55212ASILENCER, FRONT PANEL, LOWER

main55241-36010iBB4#,5#,HDB5#,HZB4#,5#..CBU,IV5199301-199907

main55242-36040iXZB50..WOC;XZB51..IV5;XZB40..5F..IV5200708-200908

55242SILENCER, FRONT PANEL SIDE, NO.1 LH

main55242-36010iBB4#,5#,HDB5#,HZB4#,5#..CBU,IV5199301-199907

main55242-36040iXZB50..WOC;XZB51..IV5;XZB40..5F..IV5200708-200908

55243ASILENCER, FRONT PANEL SIDE, NO.2 RH

main55243-36010iBB4#,5#,HDB5#,HZB4#,5#..CBU,IV5199301-199907

main55243-36030iXZB50..WOC;XZB51..IV5;XZB40..5F..IV5200708-200908

55244ASILENCER, FRONT PANEL SIDE, NO.2 LH

main55244-36010iXZB51..SULNG..6FC;BZB40,50,XZB4#,5#..DX,EX,GX,LX,STD200408-200707

main55244-36030iBZB40,50,XZB51..STD,SULNG200708-201108

55245SILENCER, FRONT PANEL SIDE, NO.3 RH

main55245-36020iBB5#,HDB5#..CBU,IV5199505-199907

main55246-36020iBB58,BZB40,50,HDB5#..CBU,IV5199910-200408

55246SILENCER, FRONT PANEL SIDE, NO.3 LH

main55246-36020iBB5#,HDB5#..CBU,IV5199505-199907

55759CCOVER, HEATER AIR DUCT

main55759-36010iBB4#,HDB5#,HZB4#,5#..CBU,IV5199301-199907

main55759-36011iXZB4#,5#201501

56111GLASS, WINDSHIELD

main56111-36010iBB40..STD..WOC;BB46,HZB50..(09S,49S)..WOC199301-199705

main56111-36020iBB40,HZB50..STD..WC;BB40,HZB50..DX,GX,LX;BB46,55,HDB50,HZB40,56..WC199301-199705

main56111-36040iBB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG199301-199705

main56111-36070iBB58,BZB40,50,HDB50,HZB40,46,5#..DX,LX,STD199907-200408

sub56111-36210

main56111-36080iBB58,HDB5#,HZB4#,5#..09S,20S,26S,29S199907-200108

main56111-36100iXZB51..SULNG..6FC;BZB40,50,XZB4#,5#..DX,EX,GX,LX200408-200604

main56111-36110iBZB40,50..STD200604-201108

sub56111-36210

main56111-36120iXZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(09S,26S,29S)..(5F,6FC)..CBU200604-201408

sub56111-36220

56121WEATHERSTRIP, WINDSHIELD

main56121-36010iBB4#,5#,HDB5#,HZB4#,5#199301-199907

9095001011

main90950-01011

9165160616

main91651-60616

13 parts on this diagram · 1 diagram in section
