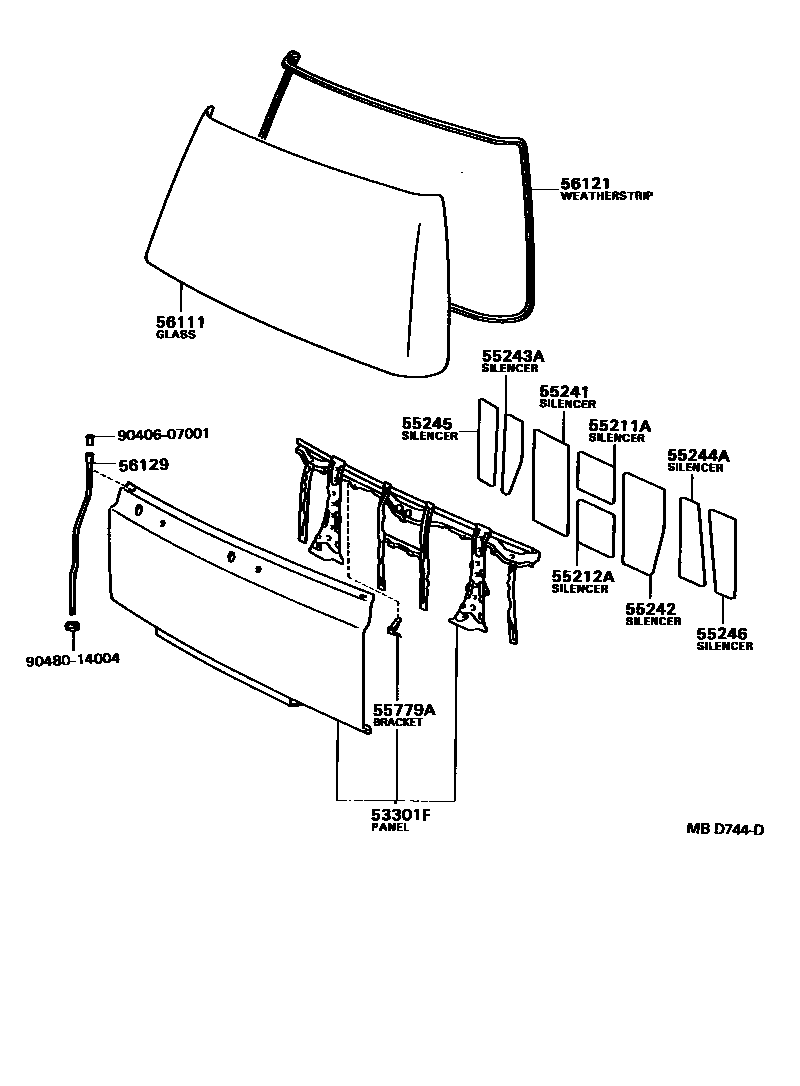

Toyota COASTER — FRONT PANEL & WINDSHIELD GLASS

53301FPANEL SUB-ASSY, FRONT

main53301-90B00iBB2#,3#,HB3#,RB2#198205-198510

main53301-90B04iBB2#,3#,HB3#,RB2#198510-198610

main53301-90B06iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198610-199301

55211ASILENCER, FRONT PANEL, UPPER

main55211-90B00iBB2#,3#,HB3#,RB2#198205-198411

main55241-90B00iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198411-199301

55212ASILENCER, FRONT PANEL, LOWER

main55212-90B00iBB2#,3#,HB3#,RB2#198205-198411

main55241-90B00iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198411-199301

55241SILENCER, FRONT PANEL SIDE, NO.1 RH

main55241-90B00iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

55242SILENCER, FRONT PANEL SIDE, NO.1 LH

main55242-90B00iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

55243ASILENCER, FRONT PANEL SIDE, NO.2 RH

main55241-90B00iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198411-199301

main55243-90B00iBB2#,3#,HB3#,RB2#198205-198411

55244ASILENCER, FRONT PANEL SIDE, NO.2 LH

main55241-90B00iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198411-199301

main55246-90B00iBB2#,3#,HB3#,RB2#198205-198411

55245SILENCER, FRONT PANEL SIDE, NO.3 RH

main55241-90B00iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198411-199301

main55245-90B00iBB2#,3#,HB3#,RB2#198205-198411

55246SILENCER, FRONT PANEL SIDE, NO.3 LH

main55241-90B00iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198411-199301

main55246-90B00iBB2#,3#,HB3#,RB2#198205-198411

55779ABRACKET, DEFROSTER NOZZLE MOUNTING, NO.6

main55779-90B00iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198610-199301

56111GLASS, WINDSHIELD

main56111-90B00iBB26,36,RB26..WOC198408-199301

sub56111-90B04

main56111-90B01iHDB30,HZB30,36199001-199301

main56111-90B02iHB31198510-198808

main56111-90B05iBB24,HB31,32198808-199001

*TL,T=7.7 SUN SHADE

main56111-90B06iHDB20,3#,HZB30,31199001-199301

*TL,T=7.7 SUN SHADE

56121WEATHERSTRIP, WINDSHIELD

main56121-90B00iBB2#,3#,HB3#,RB2#198205-198504

main56121-90B01iBB2#,3#,HB3#,RB2#198504-198510

main56121-90B02iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198510-199301

56129HOSE, WINDSHIELD DRAIN

main56129-90B00×2iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198510-199301

9040607001

main90406-07001

9048014004

main90480-14004

15 parts on this diagram · 1 diagram in section
