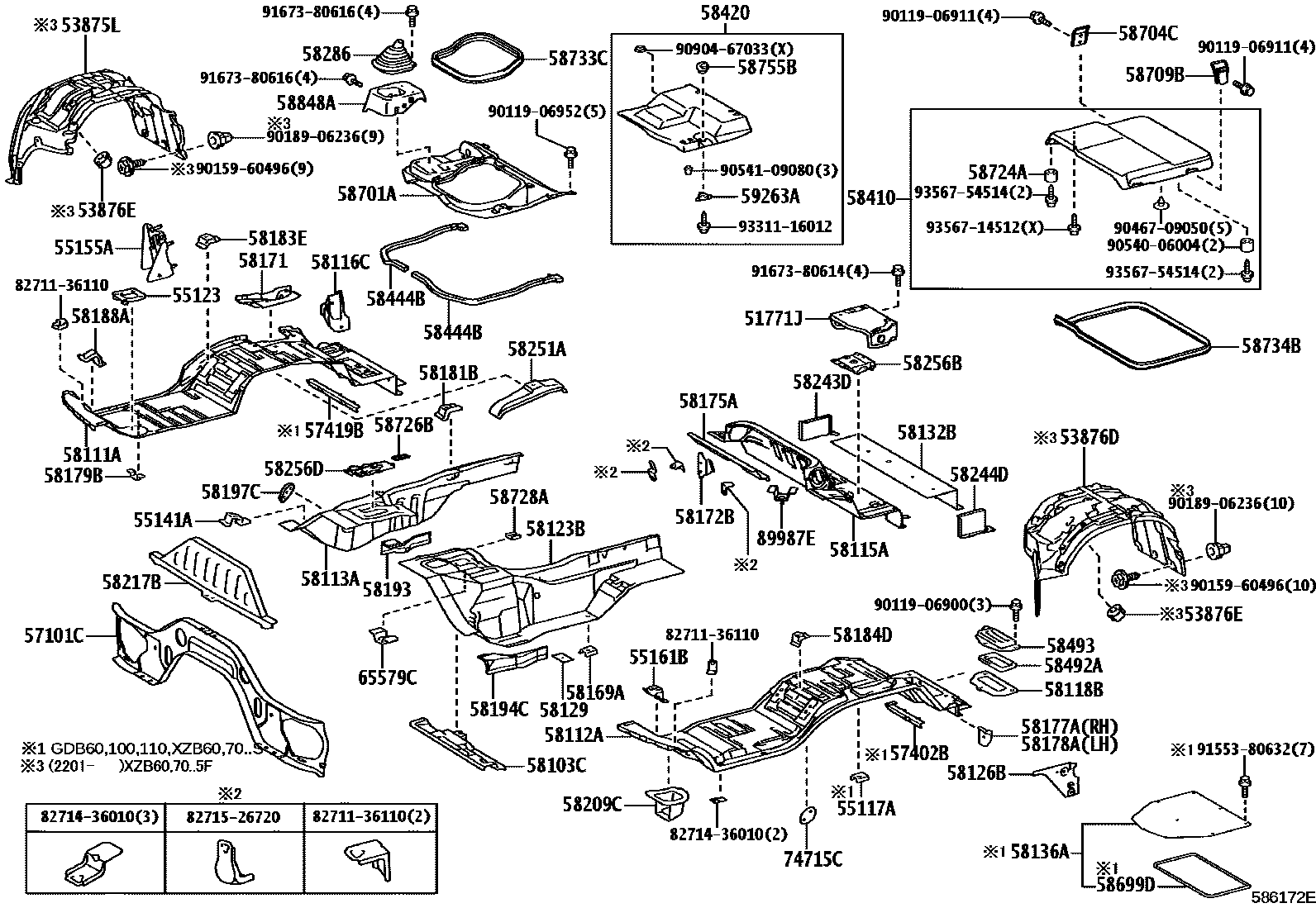

Toyota COASTER — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1������

51771JSTEP, RH

main51770-36010iXZB60..09S;XZB60..25S..5F;XZB70..21S,29S;XZB70,80..(13S,24S)..HDCR201701-202412

53875LLINER, FRONT FENDER, RH

main53875-V4010iXZB60,70..5F202201-202312

53876DLINER, FRONT FENDER, LH

main53876-V4010iXZB60,70..5F202201-202312

53876ECLIP, FRONT FENDER LINER

main90467-06206-C0iXZB60,70..5F202201-202312

BLACK

55117ARETAINER, CLUTCH BOOSTER, NO.1

main55117-90K00iGDB60..S201701-202412

55123REINFORCEMENT, STEERING SUPPORT

main55123-36020iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701-202412

55141ABRACKET, FOOT REST MOUNTING

main55141-36010iGDB60,70,80201701-202412

55155ABRACKET, ACCELERATOR PEDAL

55161BBRACKET, HEATER MOUNTING, RH

main55161-36040iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR201701-202412

57101CCROSSMEMBER SUB-ASSY, FLOOR, NO.1

main57101-36080iGDB60,70,80201701-202412

57402BREINFORCE SUB-ASSY, STEP PANEL UNDER

main57402-36020iXZB70..S;XZB60..5F..S201701-202412

57419BREINFORCEMENT, FRONT FLOOR UNDER, REAR

main57419-36060iXZB70..S;XZB60..5F..S201701-202412

58103CREINFORCEMENT SUB-ASSY, FRONT FLOOR, FRONT

main58103-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202312

main58103-V4010iGDB60,70,80202201-202412

58111APAN, FRONT FLOOR, RH

main58111-36270iXZB60..09S;XZB80..HDCR;XZB60,70..5F..(GX,LX);XZB70..29S..6FC..(GX,LX)201701-202412

main58111-36270iXZB70..EX,PREM202201-202312

main58111-36270iXZB70..EX,PREM202201-202312

main58111-36300iXZB60,70..(24S,25S)..6FC..LX201701-202412

main58111-36300iXZB60..5F..S;XZB70..EX,PREM,S201701-202412

main58111-36300iXZB60..5F..S;XZB70..EX,PREM,S201701-202412

main58111-36300iXZB70..6FC..(EX,PREM,S)202201-202412

main58111-36300iGDB70..GX202401-202412

main58111-V4050iXZB60,70..5F..(GX,LX)202201-202312

main58111-V4070iXZB60,70..5F..S202201-202312

main58111-V4070iXZB60,70..5F..S202201-202312

main58111-V4070iXZB60,70..5F..S202201-202312

main58111-V4070iXZB60,70..5F..S202201-202312

58112APANEL, FRONT FLOOR, LH

main58112-36270iXZB60..09S201701-202412

main58112-36280iXZB70..(21S,29S)..6FC;XZB70,80..(13S,24S)..HDCR201701-202412

main58112-36290iXZB70..S;XZB60..5F..S201701-202412

main58112-V4020iXZB60,70..5F..(GX,LX)202201-202312

main58112-V4030iXZB60,70..5F..S202201-202312

58113APANEL, FRONT FLOOR, CENTER

main58113-36180iXZB60,70,80201701-202103

sub58113-V4050

sub58173-36041

main58113-V4010iGDB60,70,80202201-202412

main58113-V4050iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202103-202312

58115AREINFORCEMENT, FRONT FLOOR PANEL

main58115-36830iXZB60,70..EX,GX,LX201701-201902

sub58058-36130

main58115-36831iXZB60,70..EX,GX,LX201902-201908

main58115-36832iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S)..6FC..DCR201908-202412

main58115-36840iXZB60,70..S201701-201902

sub58058-36140

main58115-36841iXZB60,70..S201902-201908

main58115-36842iXZB70..S;XZB60..5F..S201908-202412

58116CPANEL, FRONT FLOOR REAR UPPER SIDE, RH

main58116-36040iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR201701-202412

58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2

main58118-36010iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701-202412

58123BPANEL, FRONT FLOOR, CENTER LH

main58123-36240iXZB60,70,80..EX,GX,LX,PREM201701-202103

sub58123-V4020

sub58441-V4040

main58123-36330iXZB60,70..S201701-202103

sub58123-V4090

sub58441-V4040

main58123-V4020iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S)..6FC..DCR202103-202412

main58123-V4090iXZB70..S;XZB60..5F..S202103-202412

58126BPANEL, FRONT FLOOR REAR UPPER SIDE, LH

main58126-36020iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR201701-202412

58129PLATE, FRONT FLOOR, NO.2

main58129-36040iXZB70..S;XZB60..5F..S201701-202412

58132BPANEL, FRONT FLOOR, CENTER

main58132-36040iXZB70..S;XZB60..5F..S201701-202412

main58132-36090iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S)..6FC..DCR201701-202412

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58320-36050-B0iXZB60,70..S201701-201901

MD.GRAY,TRIM1#

sub58320-36051

main58320-36051-B0iXZB70..S;XZB60..5F..S201902-202412

MD.GRAY,TRIM1#

58169ARETAINER, REAR HEATER MOUNTING

main58169-90A00iXZB70..S;XZB60..5F..S201701-202412

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-36040iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

58172BBRACKET, COMPUTER MOUNTING, NO.3

main58172-36030iGDB60,70,80201701-202412

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main58175-36032iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

58177AEXTENSION, FRONT FLOOR PANEL, RH

main58177-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

58178AEXTENSION, FRONT FLOOR PANEL, LH

main58178-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

58179BBRACKET, ACCELERATOR CABLE CLAMP

main58179-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

58181BBRACKET, FRONT SEAT INSIDE MOUNTING, FRONT RH

main58181-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

58183EBRACKET, FRONT SEAT MOUNTING, OUTSIDE

main58184-36030iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

58184DBRACKET, FRONT SEAT MOUNTING, OUTSIDE

main58184-36030iXZB60..09S;XZB70..(21S,29S)..6FC;XZB60,70..5F..(EX,GX,LX);XZB70,80..(13S,24S)..HDCR201701-202412

58188ABRACKET, ACCELERATOR PEDAL STOPPER

main58188-36010iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701-202412

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-36040iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

58194CBRACKET, INSTRUMENT PANEL BRACE MOUNTING, LH

main58193-36050iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

58197CPLATE, VACUUM TUBE BRACKET, RH

main58197-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

58209CCOVER SUB-ASSY, HEATER AIR INTAKE

main58209-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

58217BPLATE, FRONT FLOOR

main58217-36030iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

58243DPANEL, FLOOR SIDE, REAR RH

main58243-36070iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR201701-202412

58244DPANEL, FLOOR SIDE, REAR LH

main58244-36070iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

58251AREINFORCEMENT, FRONT SEAT, FRONT RH

main58251-36010iXZB60..09S;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

main58251-V4010iXZB60,70..5F202201-202312

58256BBRACKET, AIR CLEANER, REAR

main58256-36020iGDB60,70,80201701-202412

58256DBRACKET, FRONT FLOOR HARNESS

main58256-36040iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701-202412

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-36010iXZB60,70..5F201701-202312

58410COVER, ENGINE SERVICE HOLE

main58410-36120-B0iXZB60..5F;XZB60..09S;XZB70..29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

MD.GRAY,TRIM2#

main58410-36120-B0iXZB60..09S;XZB60,70..5F;XZB70..(29S,49S)..6FC;XZB70,80..(13S,24S)..HDCR201701-202312

MD.GRAY,TRIM1#

main58410-36120-B0iXZB70..PREM202006-202201

MD.GRAY,TRIM1#,2#

main58410-V4010-B0iGDB60,70,80202201-202412

MD.GRAY,TRIM1#

58420COVER ASSY, ENGINE SERVICE HOLE, NO.2

main58420-36140iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701-202312

main58420-V4010iGDB60,70,80202201-202412

58444BPACKING, ENGINE SUB COVER

main58444-36050iGDB60,70,80201701-202412

58492APACKING, RELAY BLOCK HOLE COVER

main58492-36010iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR201701-202412

58493RETAINER, ENGINE COVER, NO.3

main58493-36010-B2iXZB60..5F;XZB60..09S;XZB70..29S,49S;XZB70,80..(13S,24S)..HDCR201701-202412

MD.GRAY,TRIM1#

sub58493-36010

main58493-36010-B2iXZB70..PREM202201-202312

MD.GRAY,TRIM2#

sub58493-36010

main58493-36010-B2iXZB70..PREM202006-202201

MD.GRAY,TRIM1#,2#

sub58493-36010

58699DPACKING, FRONT FLOOR MAT DRIP

main58699-36030iXZB60,70..S201701-201902

main58699-36031iXZB70..S;XZB60..5F..S201902-202412

58701APANEL SUB-ASSY, ENGINE SERVICE COVER, FRONT

main58701-36280iXZB60,70..5F201701-202312

main58701-36300iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701-202312

main58701-V4010iGDB60,70,80202201-202412

58704CHOOK SUB-ASSY, ENGINE SERVICE COVER CATCH, REAR

main58704-36041iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

58709BCATCH SUB-ASSY, ENGINE SERVICE COVER

main58709-36031iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

58724ACUSHION, ENGINE SERVICE COVER, NO.2

main58724-90B00iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

58726BPLATE, ENGINE SERVICE COVER, FRONT UPPER

main58726-36010iXZB60,70,80201701-202011

58728APLATE, ENGINE SERVICE COVER, NO.2

main58728-36010iXZB60,70,80201701-202011

58733CWEATHERSTRIP, ENGINE SERVICE COVER, FRONT

main58733-36070iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202312

main58733-V4010iGDB60,70,80202201-202412

58734BWEATHERSTRIP, ENGINE SERVICE COVER, REAR

main58734-36100iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202312

main58734-V4010iGDB60,70,80202201-202412

58755BHANDLE, ENGINE SERVICE COVER CATCH

main58755-95D00iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

58848ACOVER, SHIFT LEVER HOLE

main58848-36020iXZB60,70..5F201701-202312

59263AHOOK, ENGINE COVER LOCK

main59263-95D00iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

65579CBRACKET, SIDE PANEL FRAME

main65579-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

74715CRETAINER, EXTINGUISHER, NO.1

main74716-90K00iXZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

89987EBRACKET, COMPUTER, NO.1

main89987-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

8271136110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36110

8271436010

main82714-36010

8271526720BRACKET,WIRING HARNESS CLAMP

main82715-26720

9011906900

main90119-06900

9011906911

main90119-06911

9011906952

main90119-06952

9015960496

main90159-60496

9018906236

main90189-06236

9046709050

main90467-09050

9054006004

main90540-06004

9054109080

main90541-09080

9090467033

main90904-67033

9155380632

main91553-80632

9167380614

main91673-80614

9167380616

main91673-80616

9331116012

main93311-16012

9356714512

main93567-14512

9356754514

main93567-54514

84 parts on this diagram · 3 diagrams in section
