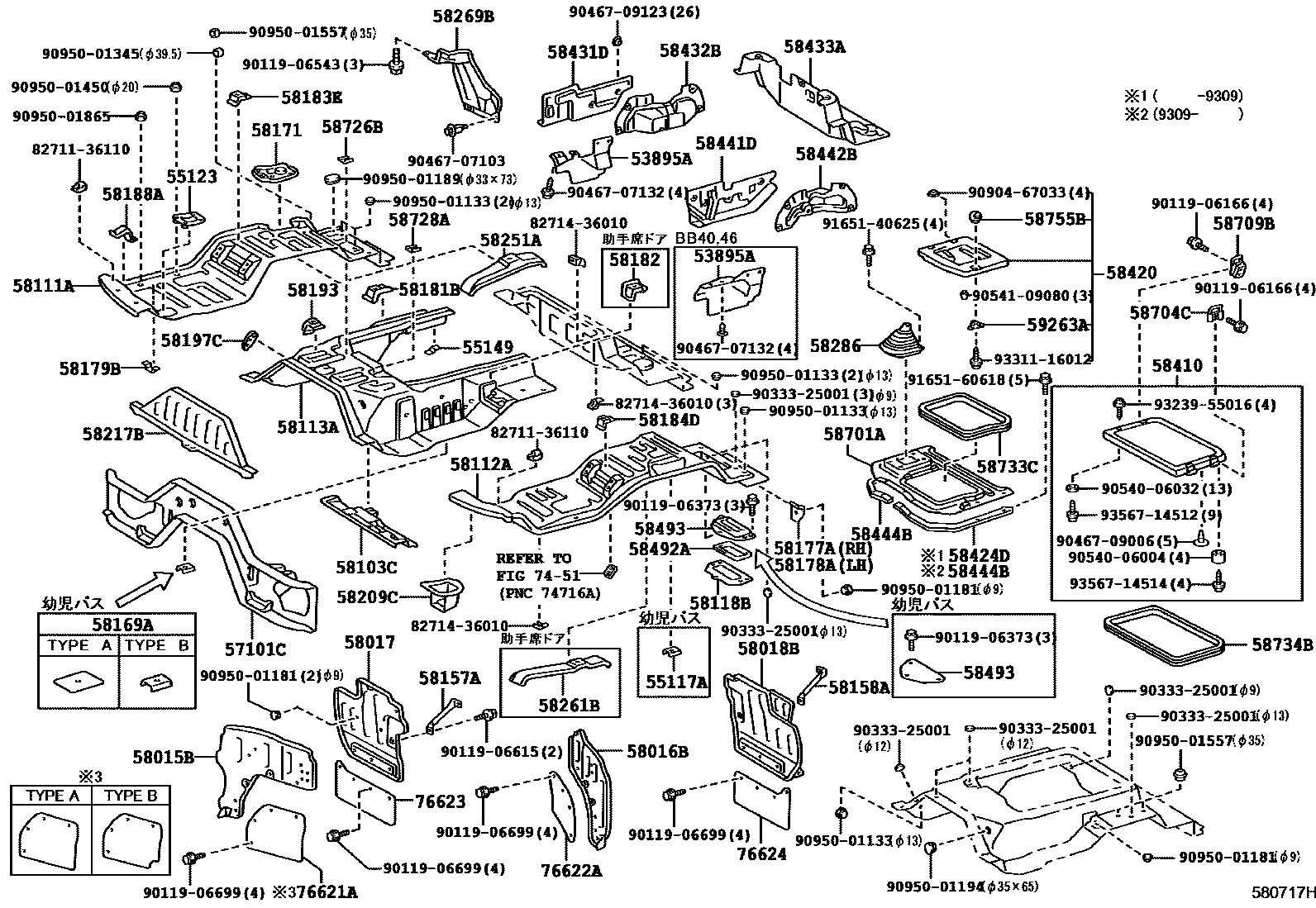

Toyota COASTER — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0004 1 0005 1 0007 1

53895ASHIELD, SIDE FLOOR APRON, FRONT

main53895-36030iBB4#199301-199505

main53895-36040iBB5#199512-199907

main53895-36050iBB58199907-200408

main53896-36020iHDB5#,HZB4#,5#199301-199505

55117ARETAINER, CLUTCH BOOSTER, NO.1

main55117-90K00×2iBB40,HZB40,50..39S,49S199301-199907

55123REINFORCEMENT, STEERING SUPPORT

main55123-36010iBB4#,5#,HDB5#,HZB4#,5#199301-199907

main55123-36020iBB58,BZB40,50,HDB5#,HZB4#,5#199907-200408

55149BRACKET, DASH WIRING HARNESS

main55149-36010iXZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD200408-200608

57101CCROSSMEMBER SUB-ASSY, FLOOR, NO.1

main57101-36010iBB58199907-200408

main57101-36020iBB4#,HDB5#,HZB4#,5#199301-199705

main57101-36040iBZB40,50,HDB5#,HZB4#,5#199907-200408

main57101-36070iBZB40,50,XZB4#,5#200708-200907

main57101-36071iBZB40,50,XZB51..STD,SULNG200908-201108

58015BPANEL SUB-ASSY, FRONT FLOOR HOUSING, FRONT RH

main58015-36010iBB4#,5#,HDB5#,HZB4#,5#199301-199907

main58015-36011iXZB50..WC;XZB40..CBU;XZB40..6FC..IV5;BZB40,50,XZB46,51,56..(EX,LX)..CBU200708-201501

main58015-36030iBB58199907-200408

58016BPANEL SUB-ASSY, FRONT FLOOR HOUSING, FRONT LH

main58016-36010iBB46,HZB56199301-199907

main58016-36020iBB58,BZB40,50,HDB5#,HZB4#,5#199907-200408

58017PANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR RH

main58017-36010iXZB51..SULNG..6FC;BZB40,50,XZB4#,5#..DX,EX,GX,LX,STD200408-200607

main58017-36011iBZB40,50,XZB51..STD,SULNG200608-201108

main58017-36030iBB5#199512-199907

main58017-36040iBB58199907-200408

58018BPANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR LH

main58018-36020iXZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5200408-200908

main58018-36030iBB5#199512-199907

main58018-36040iBB58199907-200408

58103CREINFORCEMENT SUB-ASSY, FRONT FLOOR, FRONT

main58103-36010iBB4#,5#,HDB5#,HZB4#,5#199301-199907

main58114-36010iXZB51..SULNG200408-200512

58111APAN, FRONT FLOOR, RH

main58111-36020iBB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG199301-199501

main58111-36021iBB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG199501-199508

main58111-36022iHDB51..IV1,IV5;BB4#,58,HDB50,HZB40,5#..GX,LX199705-199907

main58111-36023iXZB4#,56..LX..4FC;XZB50..29S..(4FC,6F)200408-200708

sub58111-36123

sub90333-25001

main58111-36030iBB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG199301-199501

main58111-36031iBB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG199501-199508

main58111-36032iHZB40..5F;HZB40..LX..4FC..CBU;BB40,HDB50,HZB50..GX,LX199705-199907

main58111-36033iBB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,19S,20S,24S,26S,29S,39S,49S)..WC..(CBU,IV5)199907-200408

main58111-36080iBB4#,HZB50..(09S,26S,29S)..WOC199301-199508

main58111-36081iBB40,58,HZB50..(26S,29S)..WOC199508-199907

main58111-36082iXZB50..WOC200408-200908

main58111-36090iBB40,HZB50..(39S,49S)..WOC199301-199508

main58111-36091iBB40,HZB50..(26S,29S)..WOC199508-199907

main58111-36092iXZB40..WOC200408-201501

main58111-36160iXZB51..6FC;BZB40,50,XZB4#,50,56..GX,LX201501

main58111-36170iBZB40,50,XZB4#,5#201501

sub90333-30002

58112APANEL, FRONT FLOOR, LH

main58112-36030iBB46,HZB56;HDB51..IV1199301-199907

main58112-36031iXZB46,56..6FC200408-201501

sub90333-25001

main58112-36040iBB40,5#,HDB5#,HZB4#,50..(15S,20S,26S,29S)..(CBU,IV5)199301-199907

main58112-36041iBB58,BZB40,50,HDB5#,HZB40,41,50..(DX,EX,GX,LX,SULNG)..(CBU,IV5)199907-200408

main58112-36050iBB46,HZB56199301-199907

main58112-36051iXZB46,56..09S200408-200708

main58112-36070iBB40,HZB40,50..39S,49S199301-199907

main58112-36071iBZB40,50,HZB40,50..STD199907-200408

main58112-36180iXZB46,56201501

sub90333-25001

main58112-36190iBZB40,50,XZB40,50,51..EX,GX,LX201501

main58112-36200iXZB46,56201501

main58112-36210iXZB40,50..STD201501

58113APANEL, FRONT FLOOR, CENTER

main58113-36020iBB4#,55,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S199301-199705

sub90333-25001

main58113-36021iBB58199705-199907

main58113-36040iBB46,HZB56199301-199705

main58113-36100iBB40,HZB50..39S,49S199301-199705

main58113-36130iBB4#,HDB5#,HZB4#,5#199705-199807

main58113-36131iXZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU200408-201501

58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2

main58118-36010iBB4#,5#,HDB5#,HZB4#,5#199301-199907

58157ASTAY, FRONT FLOOR HOUSING, REAR RH

main58157-36010iBZB40,50,XZB4#,5#201501

main58157-36020iBB58199907-200408

58158ASTAY, FRONT FLOOR HOUSING, REAR LH

main58158-36010iBZB40,50,HDB5#,HZB4#,5#..CBU,IV5199907-200408

main58158-36020iBB58199907-200408

58169ARETAINER, REAR HEATER MOUNTING

main58129-36010iXZB40,50..STD201501

main58169-90A00iBZB40,50,HZB40,50..STD199907-200408

main90297-03007×8iBB40,HZB50..WC..5F199401-199907

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-36010iBZB40,50,XZB4#,5#..5F,6FC200408-200712

main58107-36011iBZB40,50,XZB51..STD,SULNG200712-201108

58177AEXTENSION, FRONT FLOOR PANEL, RH

main58177-36010iXZB51..SULNG200408-200512

58178AEXTENSION, FRONT FLOOR PANEL, LH

main58178-36010iBZB40,50,XZB51..(STD,SULNG)..(5F,6FC)200408-201108

58179BBRACKET, ACCELERATOR CABLE CLAMP

main58179-36010iBB58,BZB40,50,HDB5#,HZB4#,5#199907-200408

58181BBRACKET, FRONT SEAT INSIDE MOUNTING, FRONT RH

main58181-36010iXZB51..SULNG200408-200512

58182BRACKET, FRONT SEAT INSIDE MOUNTING, FRONT LH

main58182-36010iBB46,HZB56199301-199705

main58182-36020iBB46,HZB56199705-199907

main58182-36050iXZB46,56201501

58183EBRACKET, FRONT SEAT MOUNTING, OUTSIDE

main58184-36010iBB4#,5#,HDB5#,HZB4#,5#199301-199907

main58184-36030iBZB40,50,XZB4#,5#201501

58184DBRACKET, FRONT SEAT MOUNTING, OUTSIDE

main58184-36010iBB4#,5#,HDB5#,HZB4#,5#..(09S,15S,20S,26S,29S)..(CBU,IV5)199301-199907

main58184-36030iBZB40,50,XZB4#,5#..EX,GX,LX201501

58188ABRACKET, ACCELERATOR PEDAL STOPPER

main58188-36010iXZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5200408-200908

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-36010×2iBB58199907-200408

main58193-36011iBZB40,50,XZB51..STD,SULNG201106-201108

58197CPLATE, VACUUM TUBE BRACKET, RH

main58197-36010iBB4#,5#,HDB5#,HZB4#,5#199301-199907

58209CCOVER SUB-ASSY, HEATER AIR INTAKE

main58209-36010iBB4#,5#,HDB5#,HZB4#,5#199301-199907

58217BPLATE, FRONT FLOOR

main58217-36010iBB4#,5#,HDB5#,HZB4#,5#199301-199907

58251AREINFORCEMENT, FRONT SEAT, FRONT RH

main58251-36010iBZB40,50,XZB4#,5#201501

58261BREINFORCEMENT, FRONT SEAT, FRONT LH

main58204-36030iXZB46,56201501

main58261-36010iBB46,HZB56199301-199907

58269BCOVER, PARKING BRAKE CABLE, RH

main58269-36010iBB4#,5#,HDB5#,HZB4#,5#..CBU,IV5199301-199907

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-36010iBZB40,50,XZB40,50,51..5F201501

58410COVER, ENGINE SERVICE HOLE

main58410-36011-E1iBB4#,HZB50..DX,STD199503-199603

GREIGE,TRIM4#

main58410-36021-E1iBB4#,HZB40,5#..LX199505-199603

GREIGE,TRIM4#

main58410-36030iBB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD199301-199306

main58410-36031-E0iBB4#,HDB50,HZB40,5#199603-199705

GREIGE,TRIM4#

main58410-36031-E1iHDB50,HZB50..GX199505-199603

GREIGE,TRIM4#

main58410-36040iHDB51..SULNG199301-199503

main58410-36041-B0×2iBB58200108-200408

MD.CHARCOAL,TRIM1#

main58410-36041-E0iBB55199512-199610

GREIGE,TRIM4#

main58410-36041-E2iBB58199705-199907

GREIGE,TRIM4#

main58410-36070iBB4#,HDB50,HZB40,5#..GX,LX199705-199907

main58410-36081iXZB51..SULNG200408-200512

main58410-36081-B0iBZB40,50,HDB5#,HZB4#,5#200108-200408

MD.CHARCOAL,TRIM1#

main58410-36081-B4iBZB40,50,XZB4#,5#201501-201612

MD.CHARCOAL,TRIM1#

main58410-36100iBB40,HZB40,50..DX,STD199705-199907

main58410-36110iHDB51,HZB41199705-199907

58420COVER ASSY, ENGINE SERVICE HOLE, NO.2

main58420-36030iBB58199907-200408

main58420-36080iBB4#,HDB5#,HZB4#,5#199705-199907

main58420-36110iXZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5200408-200908

58424DPACKING, ENGINE COVER

main58424-36020iBB4#,HDB5#,HZB4#,5#199301-199309

58431DSILENCER, ENGINE ROOM SIDE, FRONT RH

main58431-36030iBB4#,55,HDB5#,HZB4#,5#199301-199705

main58431-36091iBZB40,50..STD200408-201108

main58431-36100iBB4#,HDB5#,HZB4#,5#199705-199808

main58431-36101iHDB5#,HZB41199907-200405

main58431-36102iXZB51..SULNG200408-200512

58432BSILENCER, ENGINE ROOM SIDE, REAR RH

main58432-36010iBB4#,HDB5#,HZB4#,5#199301-199705

main58432-36030iBB5#199512-199907

main58432-36050iXZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD200408-200708

main58432-36080iXZB50..WOC;XZB40..5F..IV5200708-200908

58433ASILENCER, ENGINE ROOM SIDE END

main58433-36020iBB4#,HDB5#,HZB4#,5#199301-199705

main58433-36040iBB58199907-200408

main58433-36062iXZB4#,5#..4FC200608-200701

main58433-36063iXZB4#,5#..4FC200702-200708

main58433-36070iXZB4#,5#..4FC200408-200506

main58433-36080iHDB5#..6F199705-199907

main58433-36110iHDB5#..6F200108-200408

main58433-36111iXZB40,50,51..5F,6F,6FC200608-200701

main58433-36112iXZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5200702-200908

main58433-36120iBZB40,50..LX200408-200607

main58433-36121iBZB40,50..LX200608-200701

main58433-36122iBZB40,50..LX200702-201501

main58433-36130iBZB40,50..STD200408-200607

main58433-36131iBZB40,50..STD200608-200701

main58433-36132iBZB40,50..STD200702-201108

58441DSILENCER, ENGING ROOM SIDE, FRONT LH

main58441-36030iBB4#,55,HDB5#,HZB4#,5#199301-199705

main58441-36090iBB4#,HZB40,5#199705-199907

main58441-36100iXZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU200408-201501

main58441-36140iBZB40,50..STD200408-201108

58442BSILENCER, ENGING ROOM SIDE, REAR LH

main58442-36010iBB4#,HDB5#,HZB4#,5#199301-199705

main58442-36040iBB5#199512-199907

main58442-36060iHDB5#,HZB41199705-199907

main58442-36061iXZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)200408-200708

sub58442-V4020

main58442-36100iBB4#,HZB40,5#199705-199907

sub58442-V4030

58444BPACKING, ENGINE SUB COVER

main58444-36010×2iBB58199907-200408

main58444-36050×2iXZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)200408-200708

58492APACKING, RELAY BLOCK HOLE COVER

main58492-36010iXZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5200408-200908

58493RETAINER, ENGINE COVER, NO.3

main58493-36010-B0iBB40,HZB50..39S,49S199406-199505

main58493-36010-B1iBB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5200108-200408

MD.CHARCOAL,TRIM1#

main58493-36010-E0iBB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S)..(CBU,IV5)199505-199907

main58493-36020-B0iBB40,HZB50..39S,49S199406-199505

main58493-36020-E0iBB40,HZB40,50..39S,49S199505-199907

58701APANEL SUB-ASSY, ENGINE SERVICE COVER, FRONT

main58701-36010iBB4#,HDB5#,HZB4#,5#..5F199301-199505

main58701-36011iBB4#,HDB5#,HZB4#,5#..5F199505-199705

main58701-36020iHDB5#,HZB4#,5#..4FC199301-199505

main58701-36021iHDB5#,HZB4#,5#..4FC199505-199705

main58701-36050iBB58199907-200408

main58701-36060iBB5#199512-199907

main58701-36080iBB4#,HDB5#,HZB4#,5#..MTM199705-199907

main58701-36101iXZB50..WC..5F;XZB40,51..5F..CBU200408-201501

main58701-36120iHDB5#,HZB4#,5#..4FC199705-199907

main58701-36130iXZB51..SULNG..6FC200408-201108

main58701-36140iBB58199907-200408

main58701-36180iBZB40,50..LX200408-201501

58704CHOOK SUB-ASSY, ENGINE SERVICE COVER CATCH, REAR

main58704-36010-B0×4iBB58200108-200408

MD.CHARCOAL,TRIM1#

main58704-36010-E0×2iBB4#,HDB5#,HZB4#,5#199309-199505

GREIGE,TRIM4#

main58704-36040-B0×2iXZB40..6FC..IV5;XZB50..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(5F,6FC)..CBU200408-200909

MD.CHARCOAL,TRIM1#

main58704-36040-E0×2iBB4#,HDB5#,HZB4#,5#199705-199907

GREIGE,TRIM4#

main58704-36041×2iBZB40,50,XZB51..STD,SULNG200910-201108

58709BCATCH SUB-ASSY, ENGINE SERVICE COVER

main58709-36010-E0×2iBB4#,HDB5#,HZB4#,5#199301-199505

GREIGE,TRIM4#

main58709-36011-B0×4iBB58200108-200408

MD.CHARCOAL,TRIM1#

main58709-36011-E0×2iBB4#,HDB5#,HZB4#,5#199505-199705

GREIGE,TRIM4#

main58709-36030-B0×2iXZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)200408-200708

MD.CHARCOAL,TRIM1#

main58709-36030-E0×2iHDB5#,HZB4#,5#199907-200108

GREIGE,TRIM4#

main58709-36031×2iBZB40,50,XZB51..STD,SULNG200910-201108

58726BPLATE, ENGINE SERVICE COVER, FRONT UPPER

main58726-36010iBZB40,50,XZB4#,5#201501

58728APLATE, ENGINE SERVICE COVER, NO.2

main58728-36010iXZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)200408-200708

58733CWEATHERSTRIP, ENGINE SERVICE COVER, FRONT

main58733-36010iBB4#,5#,HDB5#,HZB4#,5#199301-199907

main58733-36050iBZB40,50,XZB51..(STD,SULNG)..(5F,6FC)200408-201108

58734BWEATHERSTRIP, ENGINE SERVICE COVER, REAR

main58734-36010iBB4#,HDB5#,HZB4#,5#199301-199705

main58734-36030iBB4#,HDB5#,HZB4#,5#199705-199907

main58734-36060iXZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)200408-200708

main58734-36070×2iBB58199907-200408

58755BHANDLE, ENGINE SERVICE COVER CATCH

main58755-95D00iBB4#,5#,HDB5#,HZB4#,5#199301-199907

59263HOOK, ENGINE COVER LOCK

main59263-95D00iBB4#,5#,HDB5#,HZB4#,5#..CBU,IV5199301-199907

59263AHOOK, ENGINE COVER LOCK

main59263-95D00iBZB40,50,XZB4#,5#201501

7451

76621AMUDGUARD, FRONT BODY, FRONT RH

main76621-36010iXZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)200408-200708

main76621-36020iXZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)200408-200708

main76621-36030iBB58199907-200408

76622AMUDGUARD, FRONT BODY, FRONT LH

main76622-36010iBB4#,5#,HDB5#,HZB4#,5#..CBU,IV5199301-199907

main76622-36020iXZB4#,5#201501

76623MUDGUARD, FRONT BODY, REAR RH

main76623-36010iBB4#,HDB5#,HZB4#,5#199301-199309

main76623-36011iBZB40,50,XZB4#,5#201501

main76655-36010iBB5#199512-199907

76624MUDGUARD, FRONT BODY, REAR LH

main76624-36010iBB4#,HDB5#,HZB4#,5#199301-199309

main76624-36011iBZB40,50,XZB51..(STD,SULNG)..(5F,6FC)200408-201108

main76655-36010iBB5#199512-199907

8271136110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36110

8271436010

main82714-36010

9011906166

main90119-06166

9011906373

main90119-06373

9011906543

main90119-06543

9011906615

main90119-06615

9011906699

main90119-06699

9033325001

main90333-25001

9046707103

main90467-07103

9046707132

main90467-07132

9046709006

main90467-09006

9046709123

main90467-09123

9054006004

main90540-06004

9054006032

main90540-06032

9054109080

main90541-09080

9090467033

main90904-67033

9095001133

main90950-01133

9095001181

main90950-01181

9095001189

main90950-01189

9095001194

main90950-01194

9095001345

main90950-01345

9095001450

main90950-01450

9095001557

main90950-01557

9095001865

main90950-01865

9165140625

main91651-40625

9165160618

main91651-60618

9323955016

main93239-55016

9331116012

main93311-16012

9356714512

main93567-14512

9356714514

main93567-14514

90 parts on this diagram · 5 diagrams in section
