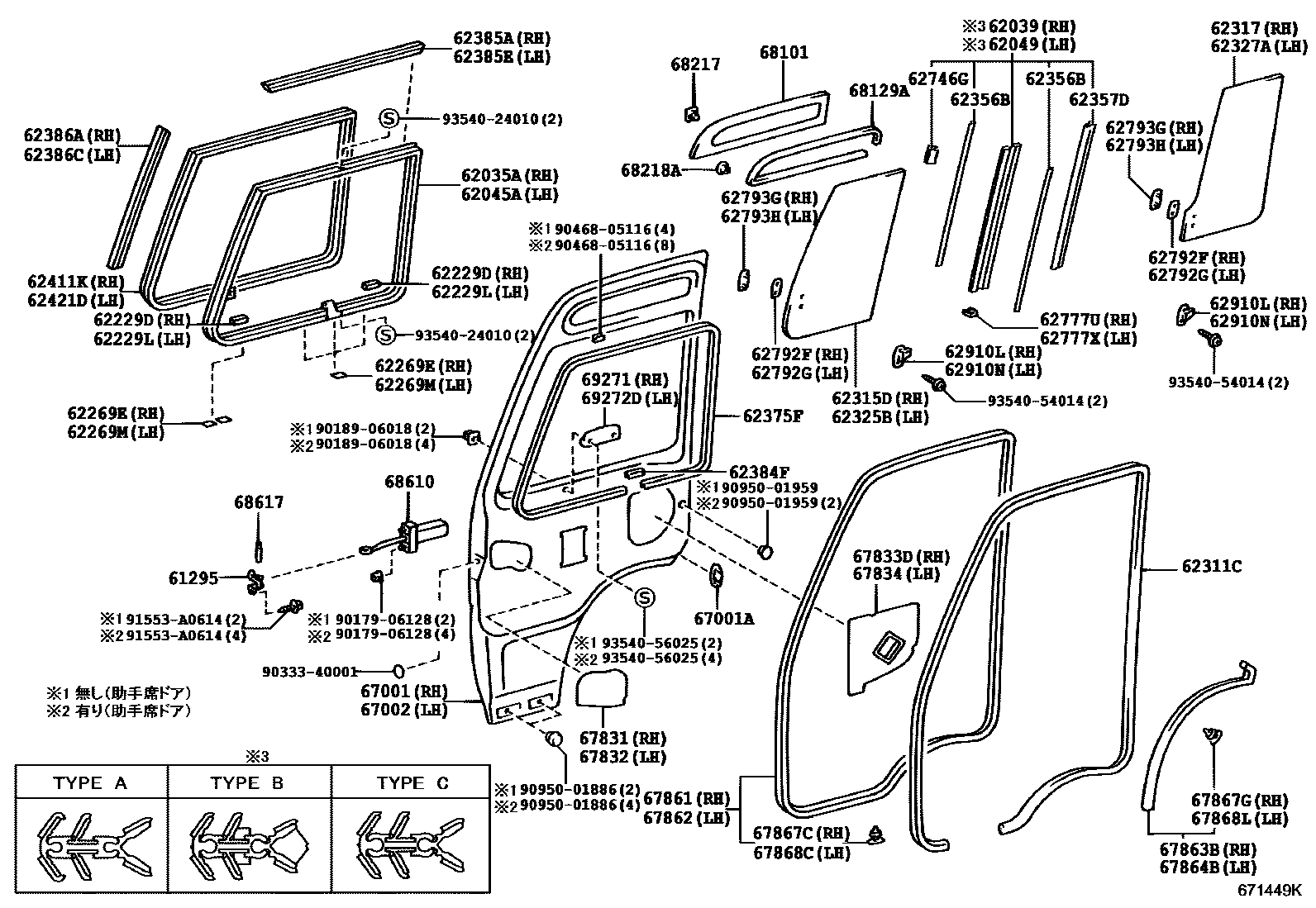

Toyota COASTER — FRONT DOOR PANEL & GLASS
61295BRACKET, FRONT DOOR CHECK ARM
62035AFRAME SUB-ASSY, FRONT DOOR WINDOW, OUTER RH
main62035-36031iBZB40,50..LX;XZB40..6FC..IV5;XZB50..(LX,STD)..(5F,6FC);XZB40..(DX,LX,STD)..(5F,6FC)..CBU200408-201501
62039FRAME SUB-ASSY, FRONT DOOR WINDOW, CENTER RH
62045AFRAME SUB-ASSY, FRONT DOOR WINDOW, OUTER LH
62049FRAME SUB-ASSY, FRONT DOOR WINDOW, CENTER LH
62229DPACKING, FRONT DOOR WINDOW
62229LPACKING, FRONT DOOR WINDOW, LH
62269EFILM, FRONT DOOR WINDOW FRAME, RH
62269MFILM, FRONT DOOR WINDOW FRAME, LH
62311CWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
IVORY,TRIM4#
MD.CHARCOAL,TRIM1#
62315DGLASS, FRONT DOOR WINDOW, FRONT RH
main62315-36060iBB58,HDB51,HZB41..(DX,EX,SULNG)..(CBU,IV5); BB58..WC;BB4#,HDB50,HZB40,5#..DX,GX,LX199705-199907
62317GLASS, FRONT DOOR WINDOW, REAR RH
main62317-36060iBB58,HDB51,HZB41..(DX,EX,SULNG)..(CBU,IV5); BB58..WC;BB4#,HDB50,HZB40,5#..DX,GX,LX199705-199907
62325BGLASS, FRONT DOOR WINDOW, FRONT LH
62327AGLASS, FRONT DOOR WINDOW, REAR LH
62356BWEATHERSTRIP, FRONT DOOR WINDOW, CENTER
62357DWEATHERSTRIP, FRONT DOOR WINDOW, CENTER REAR
62375FCLIP, FRONT DOOR WINDOW
62384FCAP,FRONT DOOR WINDOW
62385ASEAL, FRONT DOOR WINDOW, NO.1
62385ESEAL, FRONT DOOR WINDOW, NO.1 LH
62386ASEAL, FRONT DOOR WINDOW, NO.2
62386CSEAL, FRONT DOOR WINDOW, NO.2 LH
62411KRUN, FRONT DOOR WINDOW, RH
62421DRUN, FRONT DOOR WINDOW, LH
62746GPACKING, QUARTER WINDOW
62777UCAP, FRONT DOOR WINDOW CENTER SASH, RH
62777XCAP, FRONT DOOR WINDOW CENTER SASH, LH
62792FPACKING, SIDE WINDOW LOCK
62792GPACKING, SIDE WINDOW LOCK
62793GRETAINER, SIDE WINDOW LOCK
62793HRETAINER, SIDE WINDOW LOCK
62910LLOCK ASSY, SIDE WINDOW
62910NLOCK ASSY, SIDE WINDOW
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67833DCOVER, FRONT DOOR SERVICE HOLE, NO.2 RH
67834COVER, FRONT DOOR SERVICE HOLE, NO.2 LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH
67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
main67867-12150×35iHDB50..GX;BB58,HDB51,HZB41..CBU,IV5; HZB50;BZB40,50,HDB50,HZB40,46,56..DX,LX,STD199907-200408
67867GRETAINER, DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67868LRETAINER, DOOR WEATHERSTRIP, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
68129ADAM, FRONT DOOR FIX WINDOW GLASS ADHESIVE
68217PIN, FRONT DOOR FIX WINDOW
68218ABUSH, FRONT DOOR FIX WINDOW
68610CHECK ASSY, FRONT DOOR
main68610-36010iXZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU; XZB46,56..6FC200408-201501
68617PIN, FRONT DOOR CHECK
69271HANDLE, FRONT DOOR INSIDE, RH
DK.CHARCOAL,TRIM1#
GREIGE,TRIM4#
69272DHANDLE, FRONT DOOR INSIDE, LH
DK.CHARCOAL,TRIM1#
GREIGE,TRIM4#
9017906128
main90179-06128
9018906018
main90189-06018
9033340001
main90333-40001
9046805116
main90468-05116
9095001886
main90950-01886
9095001959
main90950-01959
91553A0614
main91553-A0614
9354024010
main93540-24010
9354054014
main93540-54014
9354056025
main93540-56025
66 parts on this diagram · 9 diagrams in section
FRONT DOOR PANEL & GLASS for Toyota COASTER
This section contains 76 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota COASTER. Key components include: BRACKET, FRONT DOOR CHECK ARM, FRAME SUB-ASSY, FRONT DOOR WINDOW, OUTER RH, FRAME SUB-ASSY, FRONT DOOR WINDOW, CENTER RH, FRAME SUB-ASSY, FRONT DOOR WINDOW, OUTER LH, FRAME SUB-ASSY, FRONT DOOR WINDOW, CENTER LH.
