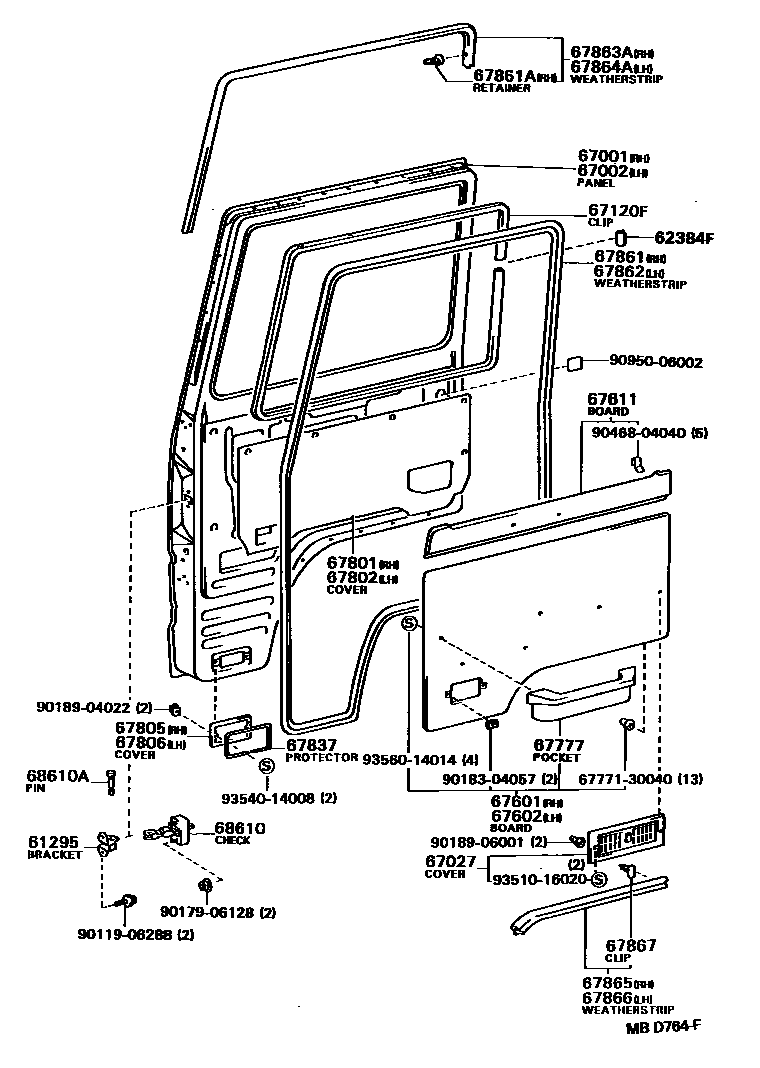

Toyota COASTER — FRONT DOOR PANEL & GLASS
61295BRACKET, FRONT DOOR CHECK ARM
W/*PSD
W/*PSD
62384FCAP,FRONT DOOR WINDOW
IVORY,IVORY; W/*PSD,IVORY,IVORY
67001PANEL SUB-ASSY, FRONT DOOR, RH
67002PANEL SUB-ASSY, FRONT DOOR, LH
W/*PSD
W/*PSD
67027COVER SUB-ASSY, DOOR VENTILATING HOLE
W/*PSD,DARK WINE
SABLE,SABLE; W/*PSD,SABLE,SABLE
67120SASH ASSY, FRONT DOOR OUTER
RH
RH
RH
LH,W/*PSD
LH,W/*PSD
67120FCLIP, FRONT DOOR WINDOW OUTER SASH
RH
LH,W/*PSD
RH
LH,W/*PSD
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
SABLE,SABLE
SABLE,SABLE
RED,RED
SABLE,SABLE
SABLE,SABLE
SABLE,SABLE
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
W/*PSD
W/*PSD,SABLE,SABLE
W/*PSD
W/*PSD,SABLE,SABLE
67611BOARD, FRONT DOOR TRIM, UPPER RH
SABLE,SABLE
SABLE,SABLE
SABLE,SABLE
SABLE,SABLE
SABLE,SABLE
SABLE,SABLE
SABLE,SABLE
67777POCKET, FRONT DOOR TRIM, RH
DARK WINE,RED/MAROON
SABLE,SABLE
67801COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH
67802COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH
W/*PSD
W/*PSD
67805COVER SUB-ASSY, FRONT DOOR HOLE, NO.2 RH
67806COVER SUB-ASSY, FRONT DOOR HOLE, NO.2 LH
W/*PSD
W/*PSD
67837PROTECTOR, FRONT DOOR SERVICE HOLE COVER
W/*PSD
67861WEATHERSTRIP, FRONT DOOR, RH
67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)
W/*PSD
67862WEATHERSTRIP, FRONT DOOR, LH
W/*PSD
67863AWEATHERSTRIP, FRONT DOOR, UPPER RH
67864AWEATHERSTRIP, FRONT DOOR, UPPER, LH
W/*PSD
W/*PSD
67865WEATHERSTRIP, FRONT DOOR, LOWER RH
67866WEATHERSTRIP, FRONT DOOR LOWER, LH
67867CLIP, DOOR WEATHERSTRIP
BLACK
68610CHECK ASSY, FRONT DOOR
W/*PSD
68610APIN(FOR FRONT DOOR CHECK)
W/*PSD
6777130040WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-30040
9011906288
main90119-06288
9017906128
main90179-06128
9018304057
main90183-04057
9018904022
main90189-04022
9018906001
main90189-06001
9046804040
main90468-04040
9095006002
main90950-06002
9351016020
main93510-16020
9354014008
main93540-14008
9356014014
main93560-14014
37 parts on this diagram · 2 diagrams in section
FRONT DOOR PANEL & GLASS for Toyota COASTER
This section contains 71 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota COASTER. Key components include: BRACKET, FRONT DOOR CHECK ARM, COVER, FRONT DOOR WINDOW, UPPER, COVER, FRONT DOOR WINDOW, LOWER, CAP,FRONT DOOR WINDOW, SEAL, FRONT DOOR WINDOW, NO.1.
