Toyota COASTER — FRONT DOOR LOCK & HANDLE
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
DARK WINE,RED/MAROON
SABLE,SABLE
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
W/*PSD,DARK WINE,RED/MAROON
W/*PSD,SABLE,SABLE
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
W/*PSD
69276BEZEL, FRONT DOOR INSIDE HANDLE
RH,DARK WINE,RED/MAROON
RH,SABLE,SABLE
W/*PSD,LH,DARK WINE,RED/MAROON
W/*PSD,LH,SABLE,SABLE
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
W/*PSD
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
W/*PSD
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
W/*PSD
69743LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH
69744LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH
W/*PSD
69749CLAMP, FRONT DOOR LOCK LINK
9015960081
main90159-60081
9015960268
main90159-60268
9015980036
main90159-80036
9018906043
main90189-06043
9165140610
main91651-40610
9338516012
main93385-16012
9353054010
main93530-54010

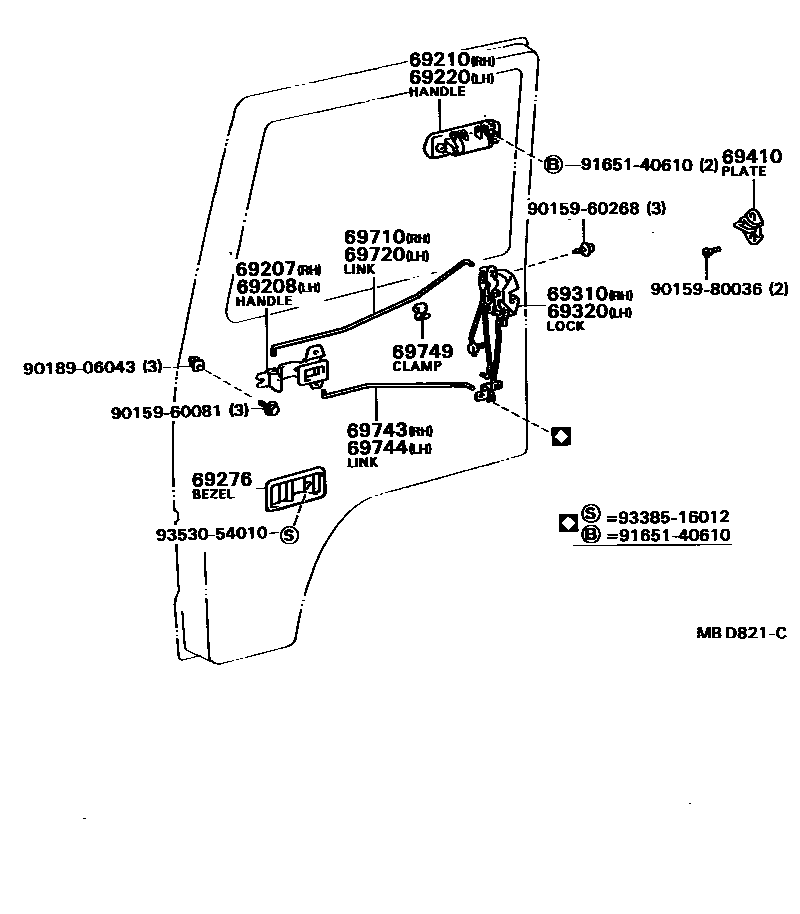

20 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota COASTER
This section contains 20 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota COASTER. Key components include: HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH, HANDLE ASSY, FRONT DOOR OUTSIDE, LH, BEZEL, FRONT DOOR INSIDE HANDLE.
