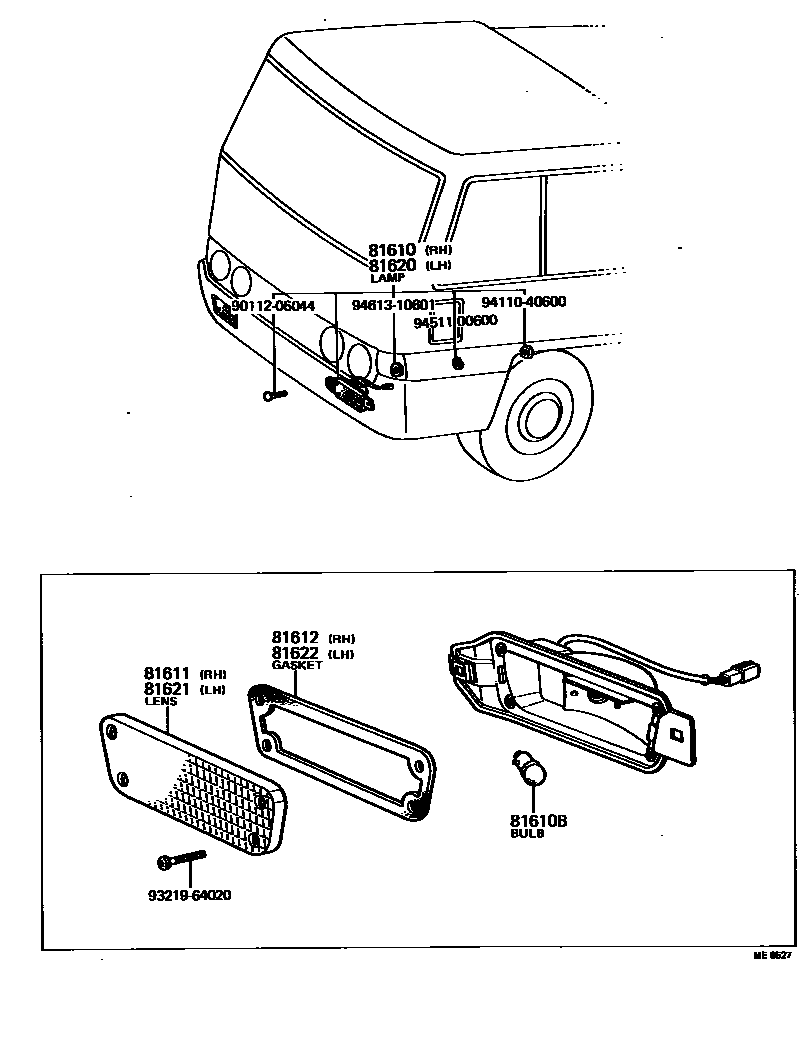

Toyota COASTER — FRONT CLEARANCE LAMP

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-39105i197708-198008

main81610-39106i198008-198204

main81610-39115i197708-198008

main81610-39116i198008-198204

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main99132-11050×2i197708-198204

main99134-11120×2i197708-198204

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-36130i197708-198204

CLEAR

81612GASKET, PARKING AND CLEARANCE LAMP LENS, RH

main81512-14011i197708-198204

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-39105i197708-198008

main81620-39106i198008-198204

main81620-39115i197708-198008

main81620-39116i198008-198204

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-36110i197708-198204

CLEAR

81622GASKET, PARKING AND CLEARANCE LAMP LENS, LH

main81522-14011i197708-198204

9011206044

main90112-06044

9321964020

main93219-64020

9411040600

main94110-40600

9451100600

main94511-00600

9461310601

main94613-10601

12 parts on this diagram · 1 diagram in section

FRONT CLEARANCE LAMP for Toyota COASTER

This section contains 12 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota COASTER. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, GASKET, PARKING AND CLEARANCE LAMP LENS, RH, LAMP ASSY, PARKING & CLEARANCE, LH.
