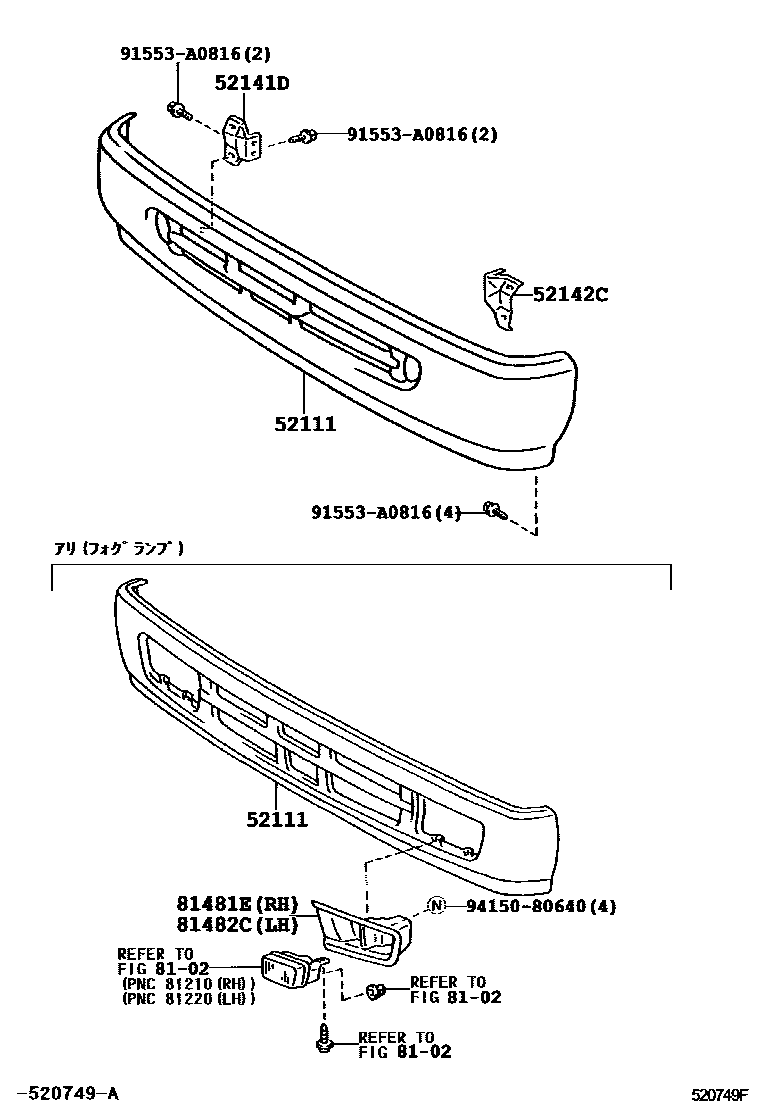

Toyota COASTER — FRONT BUMPER & BUMPER STAY

Parts diagram

52111BUMPER ASSY, FRONT

main52018-36900i199301-199907

main52018-36905i199512-199907

main52018-36906i199907-200108

main52018-36907i199907-200108

main52018-36910i199907-200408

main52018-36912i200108-200408

main52018-36913i200408-200512

main52018-36918i200408-200708

main52018-36931i200708-201501

main52018-36934i200708-200908

main52018-36935i200708-201108

main52018-36937i200708-201501

52141DSTAY, FRONT BUMPER, RH

main52141-36040i199301-199907

52142CSTAY, FRONT BUMPER, LH

main52142-36040i199301-199907

8102FOG LAMP

→ Go to FIG 81-02

81481ECOVER, FOG LAMP, RH

main53025-36030-E0i200708-200908

BEIGE ME.,4R4

main53025-36040i200708-201501

main53155-36010-E0i200408-200708

BEIGE ME.,4R4

main53155-36010-F0i200108-200408

CHAMPAGNE ME.,583

main53155-36020i200408-200512

81482CCOVER, FOG LAMP, LH

main53026-36030-E0i200708-200908

BEIGE ME.,4R4

main53026-36040i201501

main53156-36010-E0i200408-200512

BEIGE ME.,4R4

main53156-36010-F0i200108-200408

CHAMPAGNE ME.,583

main53156-36020i200408-200708

91553A0816

main91553-A0816

9415080640

main94150-80640

8 parts on this diagram · 3 diagrams in section

FRONT BUMPER & BUMPER STAY for Toyota COASTER

This section contains 23 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota COASTER. Key components include: ARM SUB-ASSY, FRONT BUMPER, INNER RH, ARM SUB-ASSY, FRONT BUMPER, INNER LH, BUMPER ASSY, FRONT, BRACKET, FOG LAMP MOUNTING, RH, BRACKET, FOG LAMP MOUNTING, LH.
