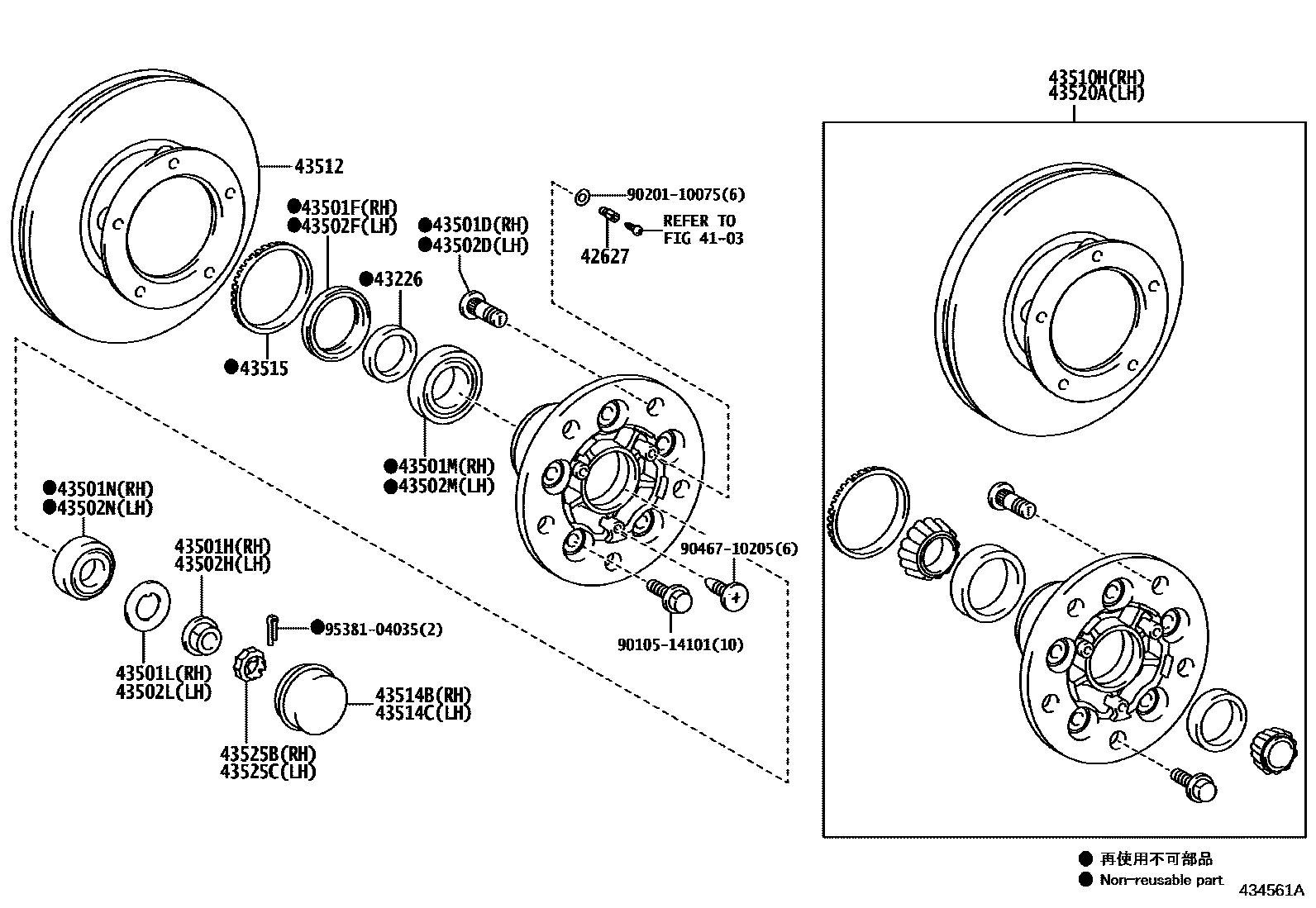

Toyota COASTER — FRONT AXLE HUB
4103DISC WHEEL & WHEEL CAP
42627BOLT, FRONT WHEEL CAP SET
main42627-36020×6iXZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70,80..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201
43226SPACER, STEERING KNUCKLE
main43226-37020×2iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
43501DBOLT, HUB (FOR FRONT AXLE RH)
main90942-02071×5iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
43501FSEAL, OIL (FOR FRONT AXLE HUB RH)
main90311-68002iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
43501HNUT (FOR FRONT AXLE SHAFT RH)
main90178-28001iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
43501LWASHER, CLAW (FOR FRONT AXLE HUB RH)
main90214-29001iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
43501MBEARING (FOR FRONT AXLE HUB INNER RH)
main90366-50069iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
43501NBEARING (FOR FRONT AXLE HUB OUTER RH)
main90366-35105iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
43502DBOLT, HUB (FOR FRONT AXLE LH)
main90942-02072×5iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
43502FSEAL, OIL (FOR FRONT AXLE HUB LH)
main90311-68002iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
43502HNUT (FOR FRONT AXLE SHAFT LH)
main90178-28001iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
43502LWASHER, CLAW (FOR FRONT AXLE HUB LH)
main90214-29001iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
43502MBEARING (FOR FRONT AXLE HUB INNER LH)
main90366-50069iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
43502NBEARING (FOR FRONT AXLE HUB OUTER LH)
main90366-35105iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
43510HHUB & DISC(DRUM) ASSY, FRONT AXLE, RH
main43510-39525iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
43512DISC, FRONT
main43512-36182×2iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
43514BCAP, FRONT AXLE HUB GREASE, RH
main43514-37050iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
43514CCAP, FRONT AXLE HUB GREASE, LH
main43514-37050iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
43515ROTOR, SKID CONTROL, FRONT
main43515-36020×2iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
43520AHUB & DISC(DRUM) ASSY, FRONT AXLE, LH
main43520-39505iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH
main43525-37010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH
main43525-37010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
9010514101
main90105-14101
9020110075
main90201-10075
9046710205
main90467-10205
9538104035
main95381-04035
27 parts on this diagram · 1 diagram in section
FRONT AXLE HUB for Toyota COASTER
This section contains 27 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota COASTER. Key components include: DISC WHEEL & WHEEL CAP, BOLT, FRONT WHEEL CAP SET, SPACER, STEERING KNUCKLE, BOLT, HUB (FOR FRONT AXLE RH), SEAL, OIL (FOR FRONT AXLE HUB RH).
