Toyota COASTER — FRONT AXLE HUB

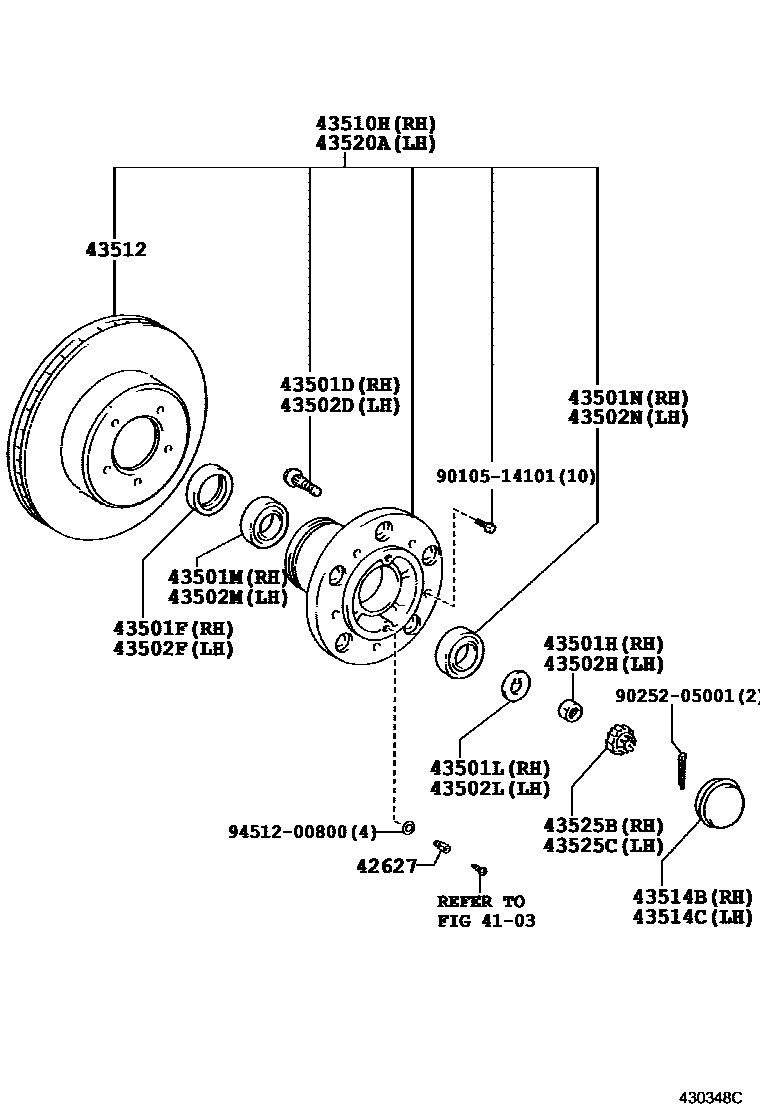

Parts diagram

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

42627BOLT, FRONT WHEEL CAP SET

main42627-36011×4i199301-199705

main42627-36020×6i199907-200108

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02071×5i199301-199907

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-68001i199301-199907

main90311-68002i199907-200408

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90170-26001i199301-199907

main90178-28001i199907-200408

43501LWASHER, CLAW (FOR FRONT AXLE HUB RH)

main90214-27001i199301-199907

main90214-29001i199907-200408

43501MBEARING (FOR FRONT AXLE HUB INNER RH)

main90366-50069i200408-201501

main90368-42045i199301-199907

43501NBEARING (FOR FRONT AXLE HUB OUTER RH)

main90366-35105i200408-200512

main90368-28001i199301-199907

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02072×5i200408-200908

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-68001i199301-199907

main90311-68002i199907-200408

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90170-26001i199301-199907

main90178-28001i200408-200908

43502LWASHER, CLAW (FOR FRONT AXLE HUB LH)

main90214-27001i199301-199907

main90214-29001i199907-200408

43502MBEARING (FOR FRONT AXLE HUB INNER LH)

main90366-50069i200408-200908

main90368-42045i199301-199907

43502NBEARING (FOR FRONT AXLE HUB OUTER LH)

main90366-35105i199907-200408

main90368-28001i199301-199907

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-39045i199301-199907

43510HHUB & DISC(DRUM) ASSY, FRONT AXLE, RH

main43510-39055i199301-199907

main43510-39065i199301-199907

main43510-39075i199301-199705

main43510-39095i200408-200808

main43510-39096i200808-201501

main43510-39105i199907-200408

main43510-39106i200808-201501

main43510-39115i199907-200408

main43510-39195i200511-200808

main43510-39196i201501

43512DISC, FRONT

main43512-36170×2i199901-199907

main43512-36171×2i200408-201108

main43512-36180×2i199705-199907

main43512-36181×2i200408-200510

main43512-36182×2i200511-201108

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-36050i199301-199907

main43514-37030i199907-200408

main43514-37050i201308-201501

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-36050i199301-199907

main43514-37030i200408-200512

main43514-37050i201308-201501

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43520-39025i199301-199907

43520AHUB & DISC(DRUM) ASSY, FRONT AXLE, LH

main43520-39035i199301-199907

main43520-39045i199301-199907

main43520-39055i199301-199705

main43520-39075i200408-200808

main43520-39076i200808-201108

main43520-39085i199907-200408

main43520-39086i200808-201501

main43520-39095i199907-200408

main43520-39175i200511-200708

main43520-39176i201501

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-36010i199301-199907

main43525-37010i200408-200908

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-36010i199301-199907

main43525-37010i199907-200408

9010514101

main90105-14101

9025205001

main90252-05001

9451200800

main94512-00800

26 parts on this diagram · 4 diagrams in section

FRONT AXLE HUB for Toyota COASTER

This section contains 34 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota COASTER. Key components include: DISC WHEEL & WHEEL CAP, BOLT, FRONT WHEEL CAP SET, SPACER, STEERING KNUCKLE, PIECE, BALANCE (FOR FRONT BRAKE DRUM), BOLT, HUB (FOR FRONT AXLE RH).
