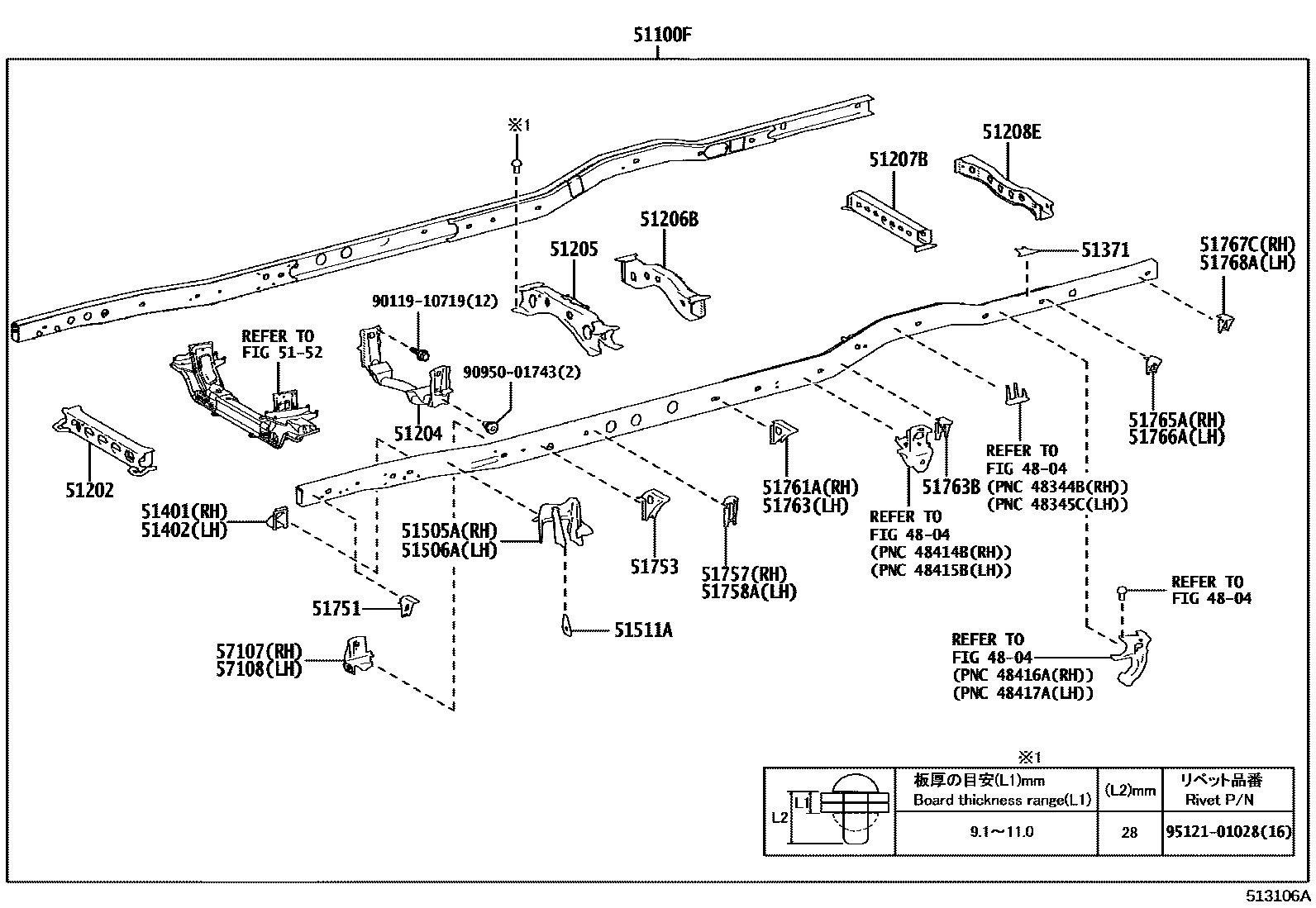

Toyota COASTER — FRAME

0001 1 0002 1 0003 1 0004 1

4804

51100FFRAME SUB-ASSY

main51001-36A11iXZB60..5F201701-202101

main51001-36A31iXZB70..5F..(LX,S)201701-202101

main51001-36A41iXZB70..5F..(EX,GX)201701-202101

main51001-36A61iXZB70..6FC..(EX,GX,PREM)201701-202101

main51001-36B61iXZB60..6FC201701-202101

main51001-36B71iXZB70..6FC..(LX,S)201701-202101

main51001-36C50iXZB80201908-202101

main51001-V4060iXZB60..5F202101-202201

main51001-V4070iXZB70..5F..(LX,S)202101-202201

main51001-V4080iXZB70..5F..(EX,GX)202101-202201

main51001-V4090iXZB60..09S202101-202201

main51001-V4100iXZB70..(09S,24S)..6FC..LX202101

main51001-V4110iXZB70..24S..6FC..GX202101

main51001-V4260iXZB80..HDCR202101-202201

main51001-V4270iXZB60..5F202201-202312

main51001-V4280iXZB70..5F..(LX,S)202201-202312

main51001-V4290iXZB70..5F..GX202201-202312

main51001-V4300iXZB70..HDCR;XZB70..29S..6FC..GX..DCR202201-202312

main51001-V4320iGDB60202201-202412

main51001-V4330iGDB70..LX202201-202412

main51001-V4340iGDB70..GX202201-202412

main51001-V4550iXZB80..HDCR202201-202312

main51001-V4570iGDB80202201-202412

main51001-V4580iXZB70..(29S,49S)..6FC..(LX,S)202201-202312

main51001-V4590iXZB60..09S202201-202312

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51201-36150iGDB60,70,80202201-202412

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-36360iXZB60,70..5F201701-202201

main51203-36390iXZB60..09S;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

main51203-V4010iGDB60,70,80202201-202412

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-36193iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6

main51206-36090iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

51207BCROSSMEMBER SUB-ASSY, FRAME, NO.7

main51207-36111iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

51208ECROSSMEMBER SUB-ASSY, FRAME, NO.8

main51208-36040iXZB70..24S..6FC..GX201701

main51281-36030iXZB60..5F;XZB60..09S;XZB80..HDCR;XZB70..(29S,49S)..(LX,S)202201-202312

51371GUSSET, FRAME NO.7 CROSSMEMBER, NO.1

main51371-36070×2iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51421-36210iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51421-36210iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

51505ASUPPORT SUB-ASSY, UPPER CONTROL ARM

main51505-36030iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

51506ASUPPORT SUB-ASSY, UPPER CONTROL ARM, LH

main51506-36120iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

51511ASEAT, FRONT SPRING SUPPORT

main51511-36080×2iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

5152

51751BRACKET, BODY SUPPORT, NO.1

main51751-36060×2iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

51753BRACKET, BODY SUPPORT, NO.2

main51753-36051×2iGDB60,70,80202201-202412

51757BRACKET, BODY SUPPORT, NO.4 RH

main51758-36020×2iXZB70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

51758ABRACKET, BODY SUPPORT, NO.4 LH

main51758-36020×2iGDB60202201-202412

51761BRACKET, BODY SUPPORT, NO.6

main51761-36041×2iXZB80..HDCR201908-202201

51761ABRACKET, BODY SUPPORT, NO.5 RH

main51761-36041iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

51763BRACKET, BODY SUPPORT, NO.5 LH

main51761-36041iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

51763BBRACKET, BODY SUPPORT, NO.6

main51763-36061×2iXZB60..5F;XZB60..09S;XZB80..HDCR;XZB70..5F..(LX,S);XZB70..(29S,49S)..6FC..(LX,S)201701-202201

main51765-36060×2iXZB70..24S..6FC..GX201701

51765ABRACKET, FRAME BODY MOUNTING, NO.7 RH

main51765-36051iXZB60..5F;XZB60..09S;XZB80..HDCR;XZB70..5F..(LX,S);XZB70..(29S,49S)..6FC..(LX,S)201701-202201

main51765-36060iGDB70..GX202201-202412

51766ABRACKET, FRAME BODY MOUNTING, NO.7 LH

main51765-36051iXZB60..5F;XZB60..09S;XZB80..HDCR;XZB70..5F..(LX,S);XZB70..(29S,49S)..6FC..(LX,S)201701-202201

main51765-36060iGDB70..GX202201-202412

51767CBRACKET, FRAME BODY MOUNTING, NO.8 RH

main51767-36140iXZB70..24S..6FC..GX201701

main51767-36150iXZB60;XZB70..LX,S201701-201903

main51767-36151iXZB60..5F;XZB60..09S;XZB80..HDCR;XZB70..5F..(LX,S);XZB70..(29S,49S)..6FC..(LX,S)201904-202201

51768ABRACKET, FRAME BODY MOUNTING, NO.8 LH

main51767-36140iXZB70..HDCR;XZB70..29S..GX..DCR202201-202312

main51767-36150iXZB60;XZB70..LX,S201701-201903

main51767-36151iXZB60..5F;XZB60..09S;XZB80..HDCR;XZB70..(29S,49S)..(LX,S)202201-202312

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57121-36020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57122-36020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

9011910719

main90119-10719

9095001743

main90950-01743

9512101028

main95121-01028

32 parts on this diagram · 4 diagrams in section
