Toyota COASTER — FOG LAMP

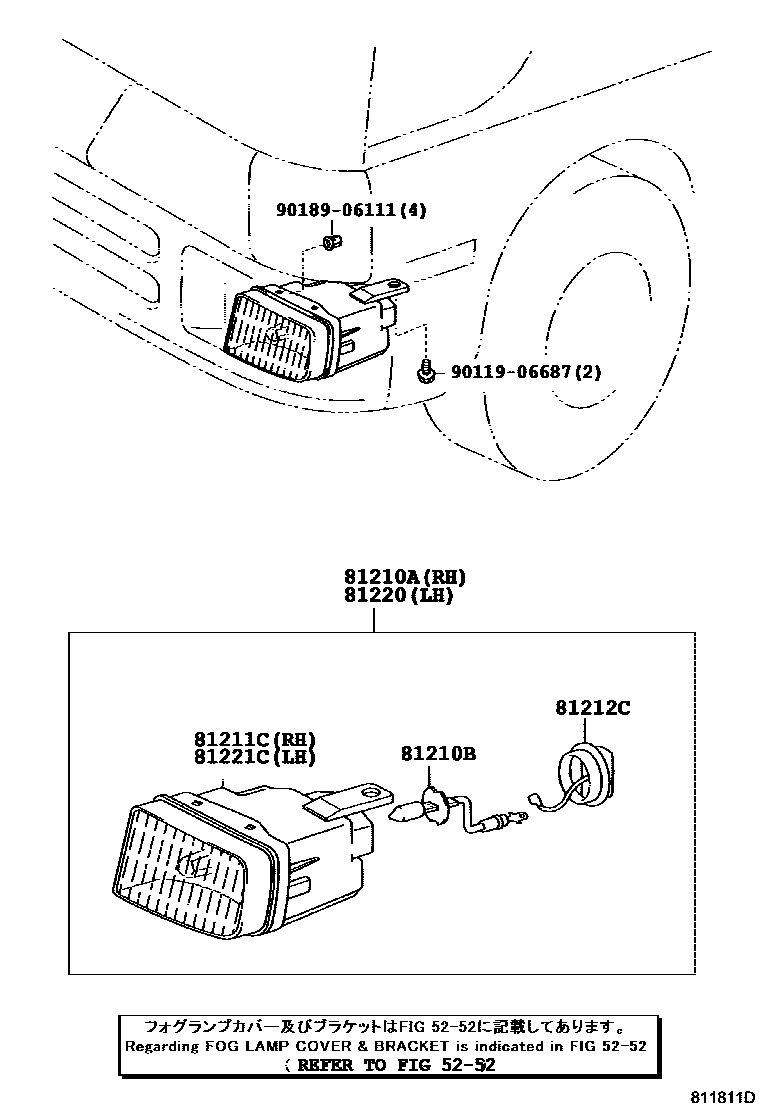

Parts diagram

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

81210ALAMP ASSY, FOG, RH

main81210-0D041i200708-201004

main81210-0D042i201005-201501

main81210-36020i200512-200708

main81210-36030i200108-200408

main81210-44030i200203-200408

81210BBULB, FOG LAMP

main90981-13018×2i200512-200708

main90981-13071×2i200408-200512

main90981-13075×2i200708-200908

main90981-13081×2i201501

main90981-17016×2i200108-200408

81211CLAMP UNIT, FOG LAMP, RH

main81211-36020i200512-200708

main81211-36030i200408-200512

main81211-44030i200203-200408

81212CCOVER, FOG LAMP

main90075-66002×2i200108-200408

81220LAMP ASSY, FOG, LH

main81220-0D041i200708-201004

main81220-0D042i201501-201612

main81220-36020i200408-200708

main81220-36030i200512-200708

main81220-44030i200408-200512

81221CLAMP UNIT, FOG LAMP, LH

main81221-36020i200408-200708

main81221-36030i200512-200708

main81221-44030i200408-200512

9011906687

main90119-06687

9018906111

main90189-06111

9 parts on this diagram · 2 diagrams in section

FOG LAMP for Toyota COASTER

This section contains 10 genuine Toyota parts for the FOG LAMP system of the Toyota COASTER. Key components include: FRONT BUMPER & BUMPER STAY, LAMP ASSY, FOG, RH, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, COVER, FOG LAMP.
