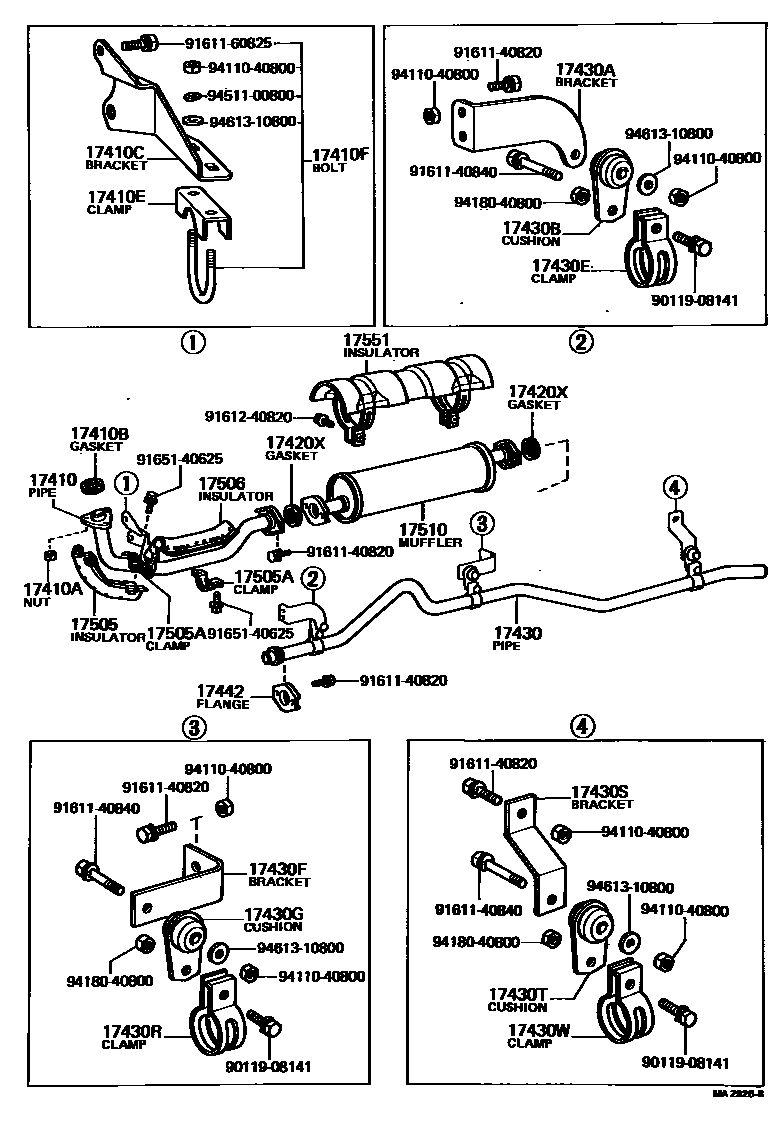

Toyota COASTER — EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
W/EXHAUST BRAKE
W/EXHAUST BRAKE
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
17410FBOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
17420XGASKET, EXHAUST PIPE, CENTER
RR
FR
17430PIPE ASSY, EXHAUST, TAIL
17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)
17430BCUSHION, EXHAUST TAILPIPE(FOR FRONT)
17430ECLAMP NO.2, EXHAUST TAILPIPE(FOR FRONT)
17430FBRACKET, EXHAUST TAILPIPE(FOR CENTER)
17430GCUSHION, EXHAUST TAILPIPE(FOR CENTER)
17430RCLAMP NO.2, EXHAUST TAILPIPE (FOR CENTER)
17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)
17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)
17430WCLAMP NO.2, EXHAUST TAILPIPE (FOR REAR)
17442FLANGE, EXHAUST PIPE, NO.2
17505INSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.1
17505ACLAMP, EXHAUST PIPE(FOR HEAT INSULATOR)
17506INSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.2
17510MUFFLER ASSY
W/EXHAUST BRAKE
W/EXHAUST BRAKE
17551INSULATOR, EXHAUST PIPE HEAT, NO.1
9011908141
main90119-08141
9161140820
main91611-40820
9161140840
main91611-40840
9161160825
main91611-60825
9161240820
main91612-40820
9165140625
main91651-40625
9411040800
main94110-40800
9418040800
main94180-40800
9451100800
main94511-00800
9461310800
main94613-10800
33 parts on this diagram · 4 diagrams in section
EXHAUST PIPE for Toyota COASTER
This section contains 46 genuine Toyota parts for the EXHAUST PIPE system of the Toyota COASTER. Key components include: PIPE ASSY, EXHAUST, FRONT, NUT, EXHAUST PIPE SET STUD BOLT, GASKET, EXHAUST PIPE, BRACKET, EXHAUST PIPE FRONT (FOR FRONT), CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT).
