Toyota COASTER — EXHAUST GAS RECIRCULATION SYSTEM

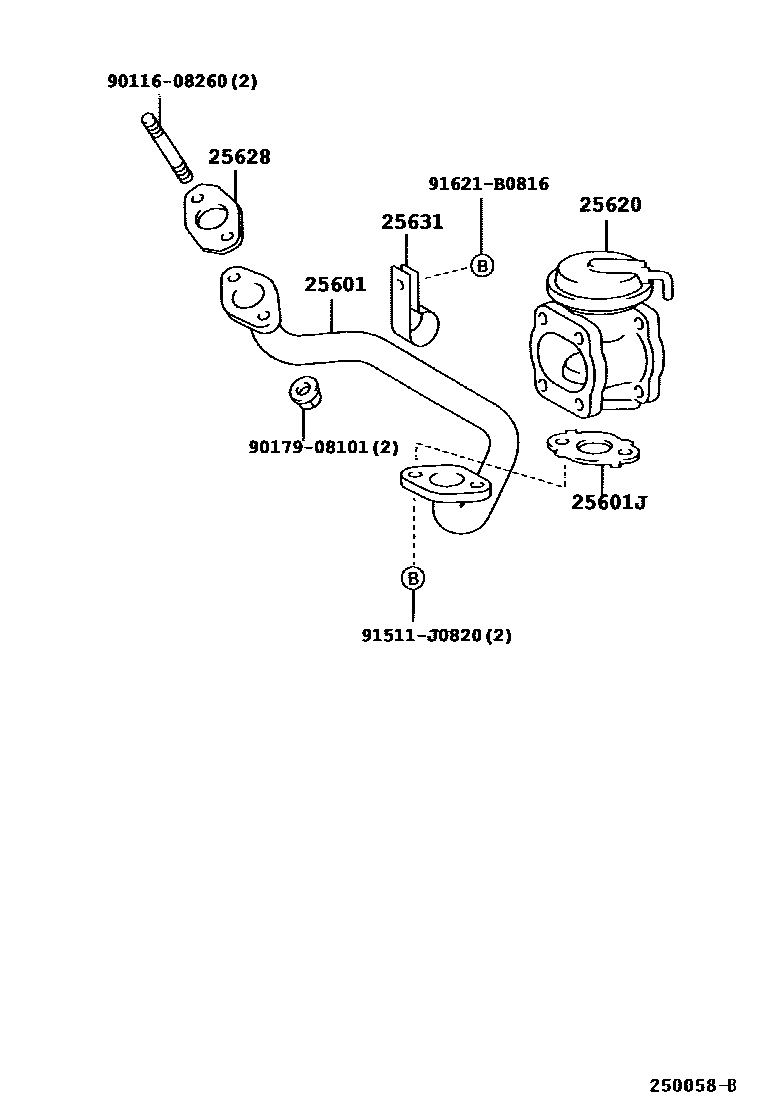

Parts diagram

25601PIPE SUB-ASSY, EGR, NO.1

main25601-17030i199907-200408

main25601-17040i199907-200408

main25601-58050i199907-200408

25601JGASKET(FOR EGR PIPE, NO.1)

main17451-E0110i201108-201501

main25634-58010i199907-200408

25620VALVE ASSY, EGR

main25620-17040i199907-200408

main25620-58050i199907-200408

main25620-78020i200408-200508

main25620-78021i200508-200512

main25620-78022i200608-200708

main25620-78060i200708-200908

main25620-78061i200910-201012

main25620-78062i201012-201108

main25620-E0261i201108-201112

main25620-E0262i201112-201501

25628GASKET, EGR INLET

main25628-17010i199907-200408

main25628-58010i199907-200408

25631STAY, EGR PIPE, NO.1

main25631-58010i199907-200408

9011608260

main90116-08260

9017908101

main90179-08101

91511J0820

main91511-J0820

91621B0816

main91621-B0816

9 parts on this diagram · 6 diagrams in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota COASTER

This section contains 44 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota COASTER. Key components include: RADIATOR & WATER OUTLET, PIPE SUB-ASSY, WATER BY-PASS, MANIFOLD, INSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.1, INSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.3.
