Toyota COASTER — EXHAUST GAS RECIRCULATION SYSTEM

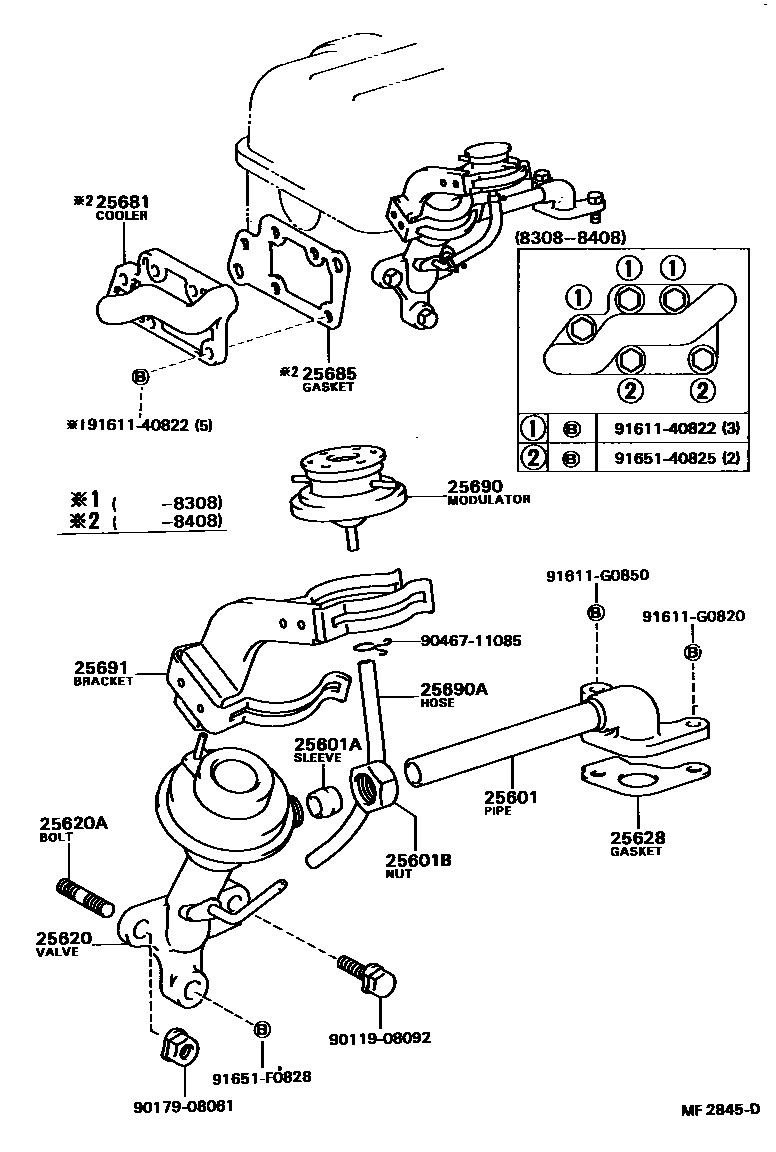

Parts diagram

25601PIPE SUB-ASSY, EGR, NO.1

main25601-38010i198205-199301

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-16044i198205-199301

25601BNUT, UNION, EGR PIPE, NO.1

main90402-22081i198205-199301

25620VALVE ASSY, EGR

main25620-35020i198205-199301

25620ABOLT, STUD(FOR EGR VALVE)

main90116-08207i198205-199301

25628GASKET, EGR INLET

main25628-38010i198205-199301

25681COOLER, EGR, NO.1

main11181-35010i198205-198206

main11181-35020i198206-198408

25685GASKET, EGR COOLER, NO.1

main11182-35010i198206-198408

main11182-38011i198205-198206

25690MODULATOR ASSY, EGR VACUUM

main25870-35030i198205-198208

main25870-35040i198208-199003

main25870-35100i199003-199301

25690AHOSE(FOR EGR VACUUM MODULATOR)

main90910-05147i198205-199301

25691BRACKET, EGR VACUUM MODULATOR

main25691-35010i198205-199301

9011908092

main90119-08092

9017908061

main90179-08061

9046711085

main90467-11085

9161140822

main91611-40822

91611G0820

main91611-G0820

91611G0850

main91611-G0850

9165140825

main91651-40825

91651F0828

main91651-F0828

19 parts on this diagram · 1 diagram in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota COASTER

This section contains 19 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota COASTER. Key components include: PIPE SUB-ASSY, EGR, NO.1, SLEEVE, BALL, EGR PIPE, NO.1, NUT, UNION, EGR PIPE, NO.1, VALVE ASSY, EGR, BOLT, STUD(FOR EGR VALVE).
