Toyota COASTER — EXHAUST GAS RECIRCULATION SYSTEM

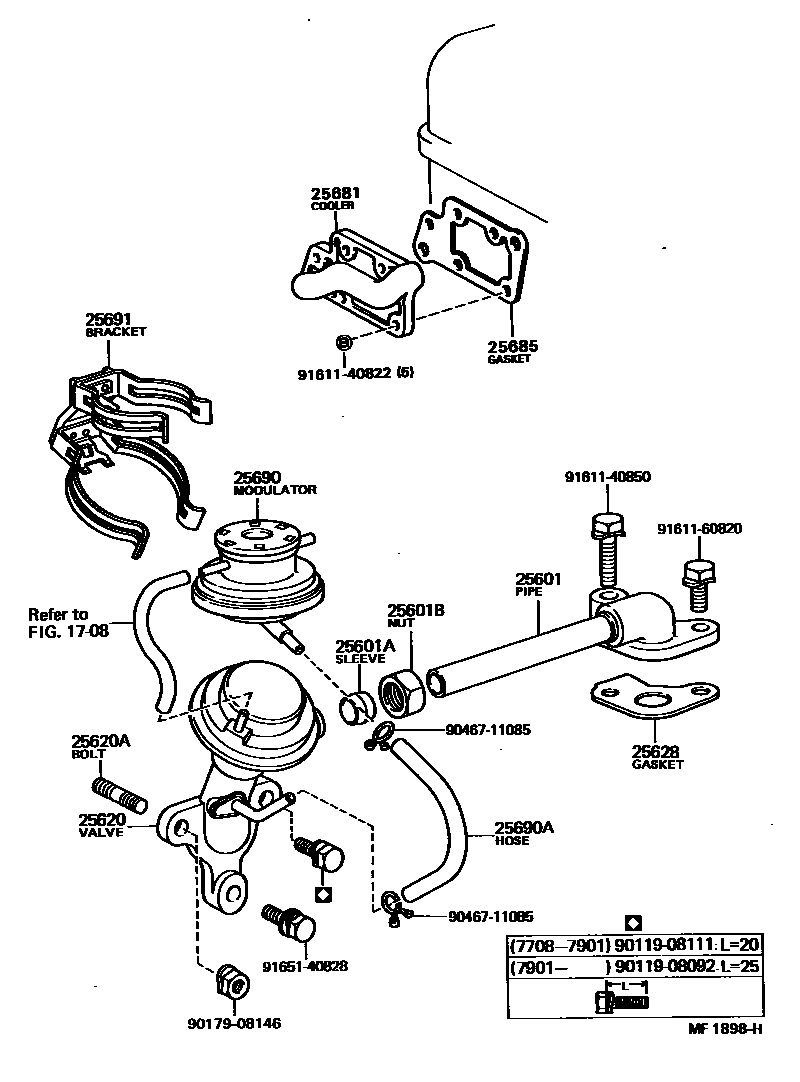

Parts diagram

1708VACUUM PIPING

→ Go to FIG 17-08

25601PIPE SUB-ASSY, EGR, NO.1

main25601-38010i197708-198204

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-16044i197708-198204

25601BNUT, UNION, EGR PIPE, NO.1

main90402-22081i197708-198204

25620VALVE ASSY, EGR

main25620-38161i197708-197808

main25620-38162i197808-197911

main25620-38211i198008-198204

main25620-38230i197911-198008

25620ABOLT, STUD(FOR EGR VALVE)

main90116-08207i197708-198204

25628GASKET, EGR INLET

main25628-38010i197708-198204

25681COOLER, EGR, NO.1

main11181-35010i198008-198204

main11181-38011i197708-198008

25685GASKET, EGR COOLER, NO.1

main11182-38011i197708-198204

25690MODULATOR ASSY, EGR VACUUM

main25690-38020i197708-198008

main25870-35010i198008-198204

25690AHOSE(FOR EGR VACUUM MODULATOR)

main90910-05128i197708-197812

main90910-05137i197812-198008

main90910-05147i198008-198204

25691BRACKET, EGR VACUUM MODULATOR

main25691-35010i198008-198204

main25691-38010i197708-197808

main25691-38020i197808-197812

main25691-38030i197812-198008

9011908092

main90119-08092

9011908111

main90119-08111

9017908146

main90179-08146

9046711085

main90467-11085

9161140822

main91611-40822

9161140850

main91611-40850

9161160820

main91611-60820

9165140828

main91651-40828

20 parts on this diagram · 1 diagram in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota COASTER

This section contains 20 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota COASTER. Key components include: VACUUM PIPING, PIPE SUB-ASSY, EGR, NO.1, SLEEVE, BALL, EGR PIPE, NO.1, NUT, UNION, EGR PIPE, NO.1, VALVE ASSY, EGR.
