Toyota COASTER — ELECTRONIC FUEL INJECTION SYSTEM

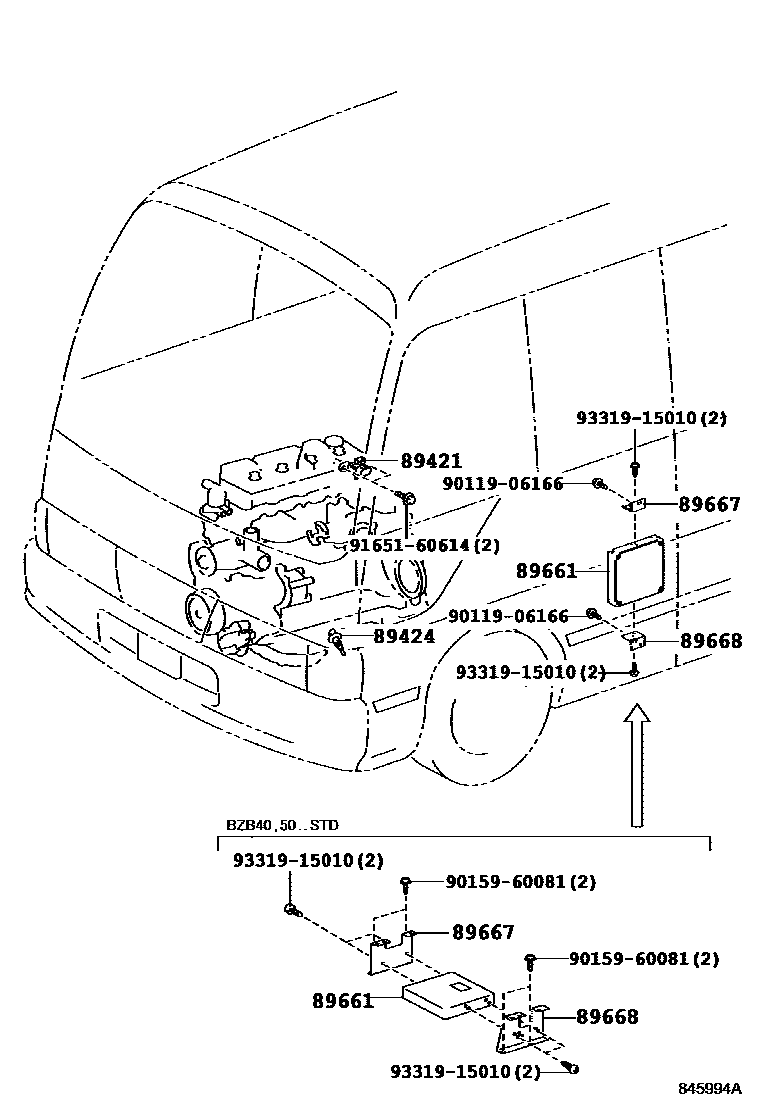

Parts diagram

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-20190i200203-200408

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010i200203-200408

89661COMPUTER, ENGINE CONTROL

main89661-36081i200203-200207

main89661-36082i200207-200310

main89661-36110i200310-200312

main89661-36111i200312-200408

main89661-36230i200708-201108

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-36020i200203-200408

main89667-36030i200310-200408

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-36010i201501

main89668-36020i200310-200408

9011906166

main90119-06166

9015960081

main90159-60081

9165160614

main91651-60614

9331915010

main93319-15010

9 parts on this diagram · 1 diagram in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota COASTER

This section contains 9 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota COASTER. Key components include: SENSOR ASSY, VACUUM (FOR E.F.I.), SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.), COMPUTER, ENGINE CONTROL, BRACKET, ENGINE CONTROL COMPUTER, BRACKET, ENGINE CONTROL COMPUTER, NO.2.
