Toyota COASTER — ELECTRONIC DIESEL INJECTION CONTROL SYSTEM

28571MOTOR, FUEL CONTROL

main28571-56130i3B..BB20,30198205-198302

main28571-56150i2H..HB30,36198205-199001

28571AROD, FUEL CONTROL MOTOR

main84580-36021i3B..BB20,30198205-198302

main84580-36040i2H..HB30,36198205-199001

28579BRACKET, FUEL CONTROL MOTOR

main28579-56030i3B..BB20,30198205-198302

28590RELAY ASSY, FUEL CONTROL

main28590-36020i3B,2H..BB20,30,HB30198205-198302

9046108265

main90461-08265

9056106002

main90561-06002

9111150685

main91111-50685

9161160665

main91611-60665

9165140612

main91651-40612

9165140614

main91651-40614

9165160825

main91651-60825

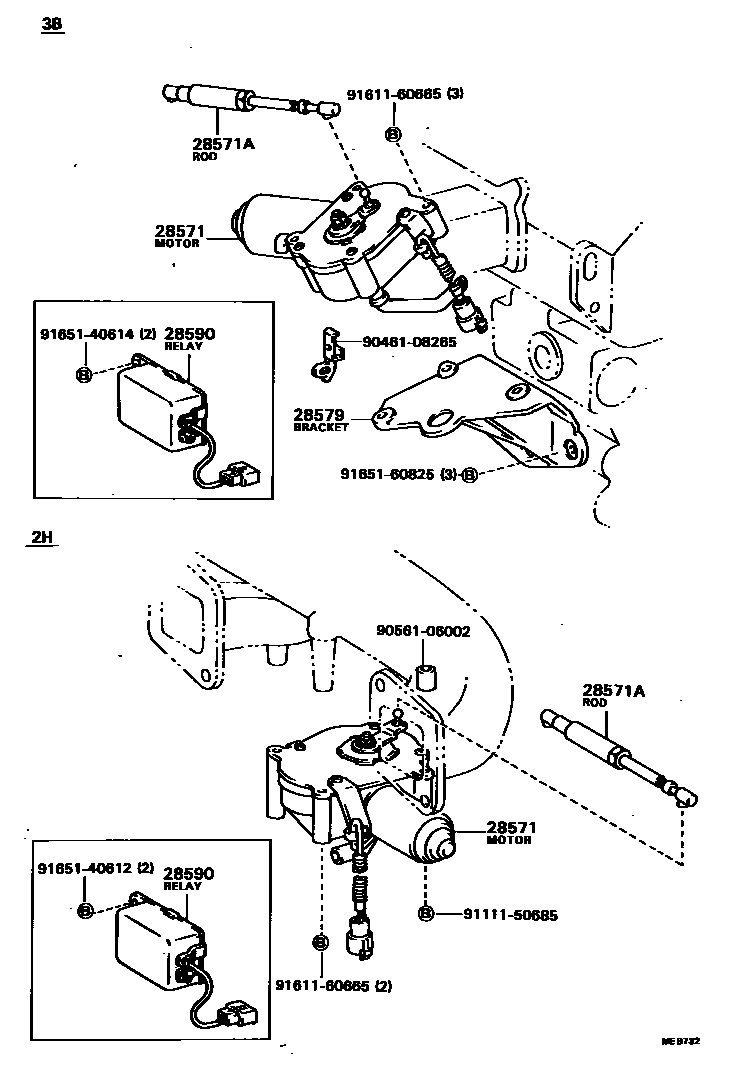

11 parts on this diagram · 1 diagram in section
